Customized High Power BO6133 Brushless dc Motor 24v 500w
US$ 10 - 50
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
BO6133N2B
Payment & Shipping
Payment Methods:
Port of Shipment:
HK or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed 10mm Brushless Motor Micro dc 7.4vUS$ 8 - 50MOQ: 5 Pieces -
High Speed 45000rpm Mini 12v dc Moter 12volt Brushless dc MoterUS$ 5 - 50MOQ: 5 Pieces
-
24v Bldc Electric Motor for Micro Air PumpUS$ 10 - 50MOQ: 5 Pieces
-
High Torque 24v Brushless Gimbal Motor Hollow Shaft for Laser RadarUS$ 5 - 45MOQ: 2 Pieces
-
Mini 24mm Hollow Shaft Motor 12v 8000rpm Brushless Dc Motor For CameraUS$ 5 - 45MOQ: 2 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
BO6133N2B
Type
Micro Motor
Certification
CE, ROHS
Torque
565mNm
Usage
Boat, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Continuous Current(A)
0.93A
Speed(RPM)
6400rpm
Commutation
Brushless
Customized high power BO6133 brushless dc motor 24v 500w
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:UAV,industrial automation,etc
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| Characteristics | |||
| -1-22.2 | |||
| 1 | Voltage | V | 22.2 |
| 2 | Terminal resistance | Ω | 0.07 |
| 3 | No-load speed | rpm | 6400 |
| 4 | No-load current | A | 0.93 |
| 5 | Nominal torque | mNm | 1040 |
| 6 | Nominal speed | rpm | 5800 |
| 7 | Nominal current | A | 32.6 |
| 8 | Max. output power | W | 1750 |
| 9 | Max. efficiency | % | 89.4 |
| 10 | Back-EMF constant | mV/rpm | 3.5 |
| 11 | Torque constant | mNm/A | 33 |
| 12 | KV Value | rpm/V | 290 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

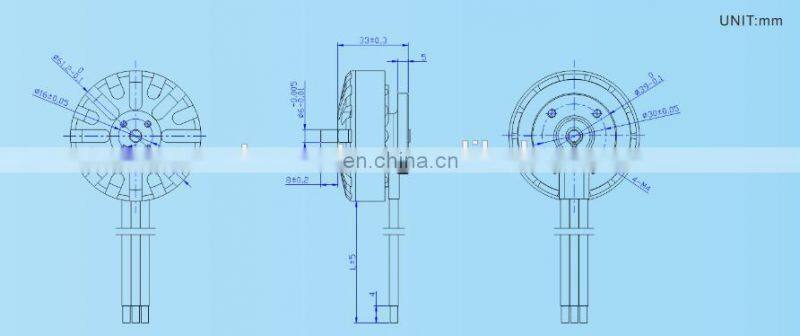

5,Outline Drawing:

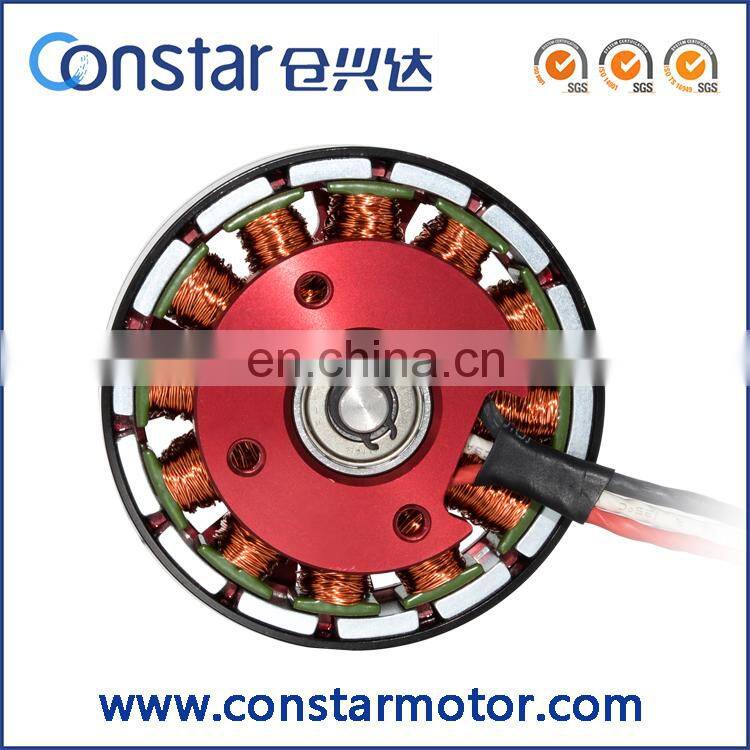

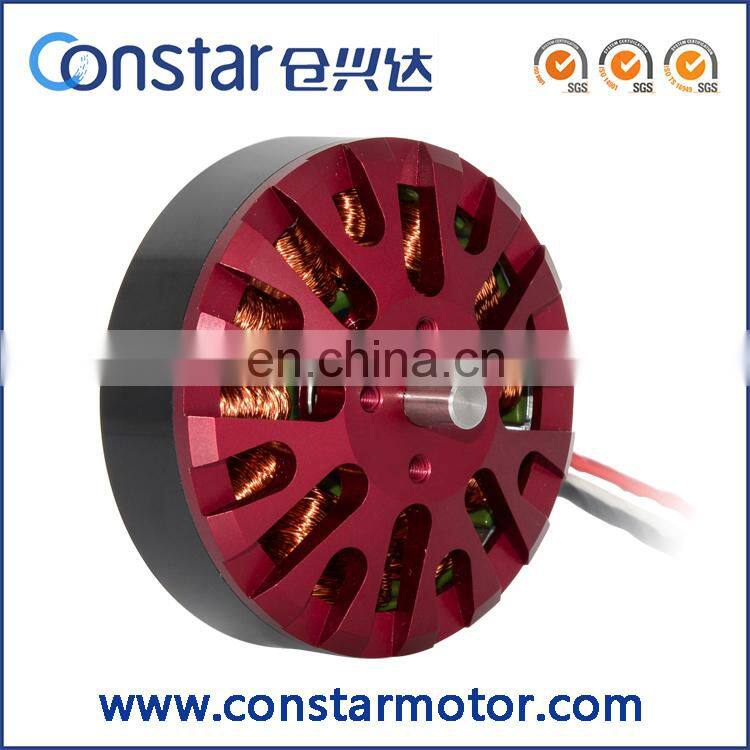

6,Photo:
Customized Motor Solutions:
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
7.Other Item
| Series | Dimension (mm) |
Voltage (V) |
No-load Speed (rpm) |
No-Load Current (mA) |
KV Value (rpm/V) |
Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
