Hot Sale 12v 12mm inner rotor electric BLDC motor
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
2. Operating Environment:-40~+100°C
3. Characteristics :
...
| Performance Code | Dimension | Voltage (V) | No-load Speed | No-load | Load | Load Speed | Load Current | KV Value |
1230ZWWN | -2B | Φ12*30 | 12 | 52000 | 500 | 4.90 | 42000 | 3200 | 4300 |
-10 | Φ12*30 | 9 | 18000 | 130 | 4.90 | 12500 | 1200 | 2000 | |
-14 | Φ12*30 | 12 | 23000 | 50 | 1.96 | 15300 | 450 | 1920 | |
-15 | Φ12*30 | 3.7 | 18000 | 200 | 1.96 | 15000 | 1200 | 4860 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver

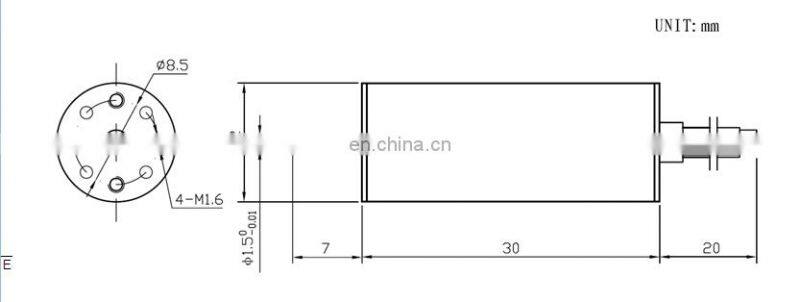

5.Outline Drawing:
6,Other Item:
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5470 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3.0 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
Hot Sale 12v 12mm inner rotor electric BLDC motor
