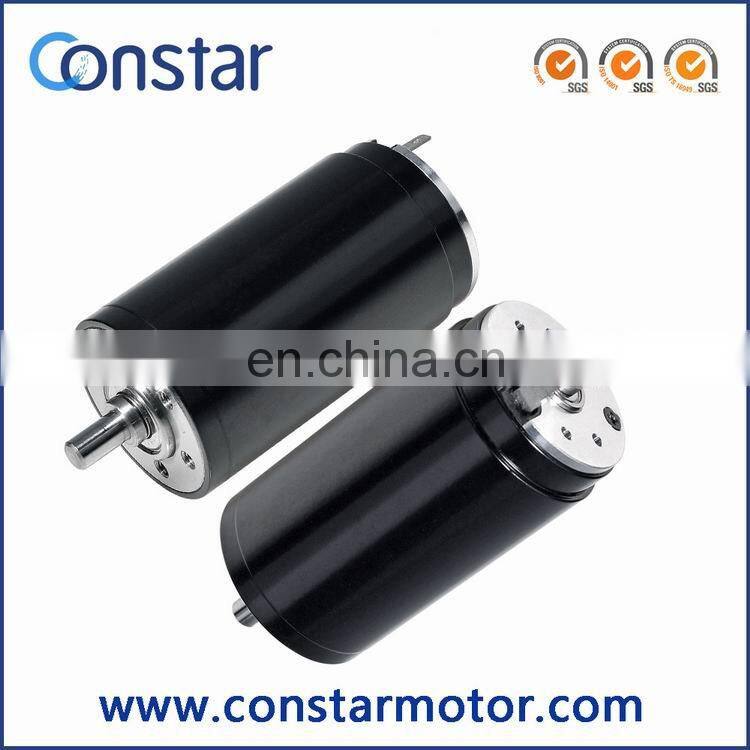

24v High Precision Robotic 32mm Carbon Brush DC Coreless Motor
Coreless and inclined winding structure is adopted for Constar precision DC coreless motor. Thanks to the symmetrical winding, low vibration of motor and stable running, as well as the integrated structure of winding, commutator and motor shaft, it is characterized by low rotor inertia, rapid rotation speed, high efficiency, little electromagnetic interference and long operational lifetime, linear output performance, convenient speed regulating and excellent servo performance of motor. High performance Nd-Fe-B magnet is used and the product is compact in size. The motor with precious metal commutation is used for occasions of low-power requirements and the motor with carbon-brush commutation structure can be chosen for occasions of high output power and long operational lifetime. The product is applicable for precision driving field in medical, health care and industrial automation .
Precision driving field in medical, health care, automobile, industrial automation, etc.
The following are our standard products, we also provide customized products and service.
| -2-24.0 | |||||
| 1 | Voltage | V | 24.0 | ||
| 2 | Rotor resistance | Ω | 2.2 | ||
| 3 | No-load speed | rpm | 5900 | ||
| 4 | No-load current | mA | 130 | ||
| 5 | Stall torque | mNm | 422.2 | ||
| 6 | Stall current | mA | 11000 | ||
| 7 | Nominal torque | mNm | 56.5 | ||
| 8 | Nominal speed | rpm | 5100 | ||
| 9 | Nominal current | mA | 1585 | ||
| 10 | Max. output power | W | 65 | ||
| 11 | Max. efficiency | % | 80 | ||
| 12 | Back-EMF constant | mV/rpm | 4.0 | ||
| 13 | Torque constant | mNm/A | 38.4 | ||
| 14 | Speed/torque gradient | rpm/mNm | 14.0 | ||
| 15 | Rotor inertia | gcm2 | 42 | ||
| 16 | Weight | g | 230 | ||
| 17 | Thermal resistance housing-ambient | K/W | 8 | ||
| 18 | Thermal resistance winding-housing | K/W | 3.3 | ||
| 19 | Thermal time constant motor | s | 230 | ||
| 20 | Thermal time constant winding | s | 5.9 | ||
| 21 | Operating temperature range | ℃ | -20~+100 | ||
| 22 | Max. winding temperature | °C | 120 | ||
| 23 | Axial play | mm | 0.02~0.15 | ||
| 24 | Radial play | mm | 0.025 | ||
| 25 | Axial load dynamic | N | 5.6 | ||
| 26 | Axial load static | N | 110 | ||
| 27 | Radial load at 3 mm from mounting face | N | 30 | ||
| 28 | No. of pole pairs | 1 | |||
| 29 | Bearings | 2 ball bearings | |||
| 30 | Commutator | metal 9 segments | |||
| 31 | Protection class | IP 20 | |||
Lead wires length, Shaft length, Special coils, Gearheads, Encoder
24v High Precision Robotic 32mm Carbon Brush DC Coreless Motor
