Home > Electrical & Electronics > Electric Motor > DC Motor > 12*30mm High Quality Micro dc Motor 24V Brush Coreless Motor
US$ 5 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
1230RCN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10*20mm Good Quality Electrical dc Coreless Motor,sued in Industrial AutmationUS$ 6 - 25MOQ: 5 Pieces -
16*25mm High-end Medical dc Motor,heath Care Coreless Low Noise PM MotorUS$ 6 - 40MOQ: 10 Pieces
-
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless MotorUS$ 5 - 45MOQ: 5 Pieces
-
16mm Low Noise High Torque 24v Micro DC Coreless MotorUS$ 8 - 40MOQ: 10 Pieces
-
3 Volt DC Micro Motor for ToysUS$ 5 - 50MOQ: 1 Piece
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
1230RCN
Type
Micro Motor
Certification
CE, ROHS
Torque
8.6mNm
Protect Feature
Totally Enclosed
Continuous Current(A)
410mA
Speed(RPM)
10800rpm
Commutation
Brush

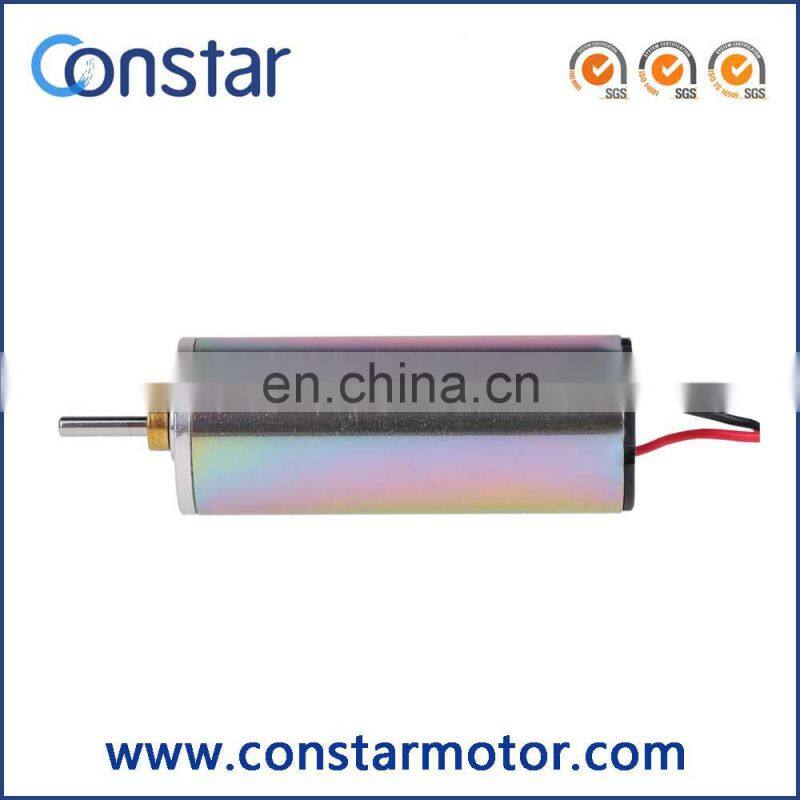

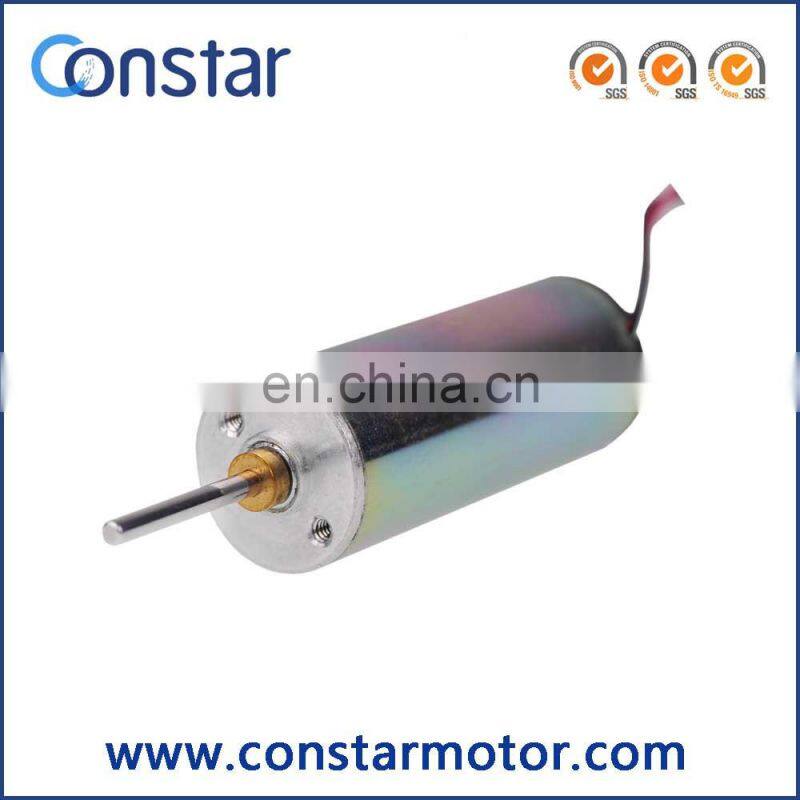

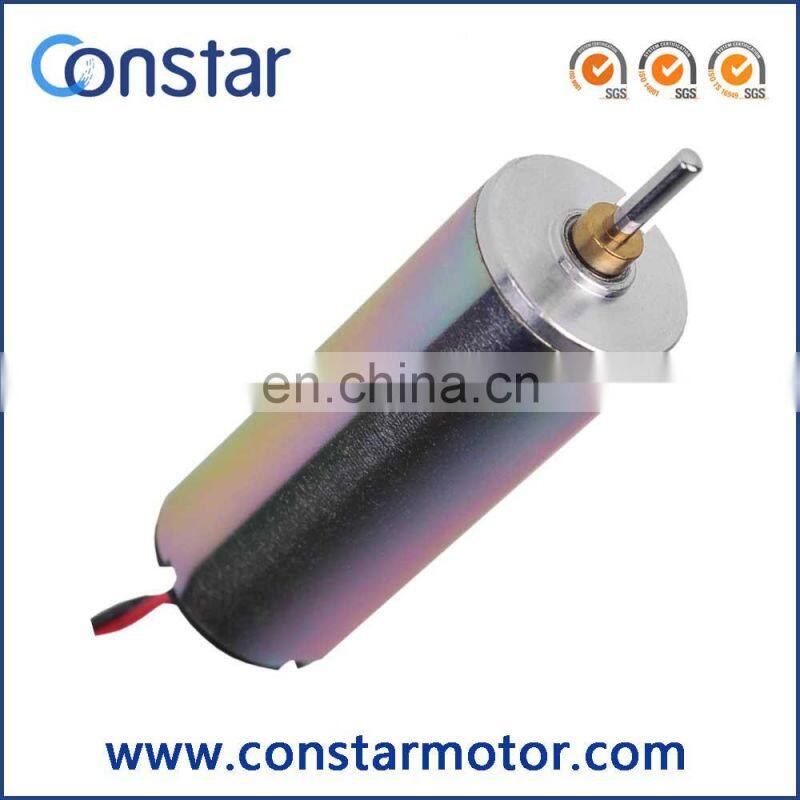

12*30mm high quality micro dc motor 24V brush coreless motor
Precision driving field in medical, health care, automobile, industrial automation, etc.
The following are our standard products, we also provide customized products and service.
| -6-5.3 | -15P-12.0 | -17P-24.0 | |||
| 1 | Voltage | V | 5.3 | 12.0 | 24.0 |
| 2 | Terminal resistance | Ω | 12.9 | 10.4 | 59.0 |
| 3 | No-load speed | rpm | 4450 | 11300 | 10800 |
| 4 | No-load current | mA | 10 | 15 | 5 |
| 5 | Stall torque | mNm | 4.5 | 11.5 | 8.6 |
| 6 | Stall current | mA | 410 | 1150 | 410 |
| 7 | Nominal torque | mNm | 0.9 | 3.0 | 3.7 |
| 8 | Nominal speed | rpm | 3450 | 7900 | 5990 |
| 9 | Nominal current | mA | 110 | 385 | 185 |
| 10 | Max. output power | W | 0.5 | 3.4 | 2.4 |
| 11 | Max. efficiency | % | 73 | 80 | 80 |
| 12 | Back-EMF constant | mV/rpm | 1.2 | 1.0 | 2.2 |
| 13 | Torque constant | mNm/A | 11.1 | 10.0 | 21.0 |
| 14 | Speed/torque gradient | rpm/mNm | 980 | 980 | 1260 |
| 15 | Rotor inertia | gcm2 | 0.25 | 0.25 | 0.25 |
| 16 | Weight | g | 17.7 | 17.7 | 17.7 |
Lead wires length, Shaft length, Special coils, Gearheads
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 15 | 22.2 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
12*30mm high quality micro dc motor 24V brush coreless motor
