LOW RPM HIGH TORQUE DC SPUR GEAR MOTOR 20A130 Round Type
US$ 2.8 - 3.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
MBI
Place of Origin:
Hunan, China
Output Speed:
10-500rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 200rpm 32A385 dc Gear Motor for Automatic Roller Blinds, Motorized BlindsUS$ 3 - 5MOQ: 5000 Pieces -
Low Rpm 12v 8rpm 8kg.cm dc Gear MotorUS$ 2.8 - 3.2MOQ: 1000 Pieces
-
37B540 12V 192rpm Metallurgy Powder Electric Gears DC MotorUS$ 5.2 - 6MOQ: 1000 Pieces
-
50A555 High Torque 500g.cm-50kg.cm Heavy Torque dc Gear Motor DC 24V Toy Motor Gear BoxUS$ 5 - 8MOQ: 2000 Pieces
-
12v 100rpm Micro DC Gear Motor Encoder N20 With 298:1 Gear Ratio for 3D Printing PenUS$ 2.6 - 2.9MOQ: 1000 Pieces
Brand Name
MBI
Place of Origin
Hunan, China
Output Speed
10-500rpm
Input Speed
can be customized
Output Torque
0.15-1kg.cm
Gearing Arrangement
Spur
| 20mm Low rpm high torque PMDC Spur gear motor 20A130 round type |
spur gear motor spur gear motor spur gear motor spur gear motor spur gear motor spur gear motor spur gear motor spur gear
Technical datas:
| Gear box length L (mm) |
Number Of Stage |
General Reduction Ratios | |||||||||||
| 16.2 | 3-4 | 1/6.6 | 1/12.5 | 1/16 | 1/23 | 1/28 | 1/35 | 1/39 | |||||
| 17.7 | 5 | 1/43 | 1/63.5 | 1/70 | 1/78 | 1/98 | - | - | |||||
| 19.2 | 6 | 1/103 | 1/107 | 1/144 | 1/175.7 | 1/195 | 1/244 | - | |||||
| 20.7 | 7 | 1/269 | 1/359 | 1/440 | 1/469 | 1/488 | 1/545 | 1/610 | |||||
| 22.2 | 8 | 1/644 | 1/899 | 1/1099 | 1/1200 | 1/1361 | 1/1526 | - | |||||
| Ratio | Model No. | Voltage | No Load | On Load | |||||||||
| Operating Range |
Nominal Voltage |
Current | Speed | Current | Torque | Speed | |||||||
| V | V | A | r/min | A | kg.cm | r/min | |||||||
| 1/23 | MBI-20A130R-23-12600 | 6.0-12.0 | 12.0 | 0.057 | 591.7 | 0.22 | 0.2 | 491 | |||||
| 1/107 | MBI-20A130R-107-0636 | 4.0-8.0 | 6.0 | 0.03 | 35.6 | 0.082 | 0.6 | 26.3 | |||||
| 1/144 | MBI-20A130R-144-1.513 | 1.5-3.0 | 1.5 | 0.02 | 13.2 | 0.054 | 0.2 | 10 | |||||
| 1/195 | MBI-20A130R-195-0640 | 4.8-8.0 | 6.0 | 0.07 | 40 | 0.17 | 1.4 | 32 | |||||
| 1/488 | MBI-20A130R-488-0616 | 4.0-8.0 | 6.0 | 0.09 | 16 | 0.17 | 3.0 | 12 | |||||

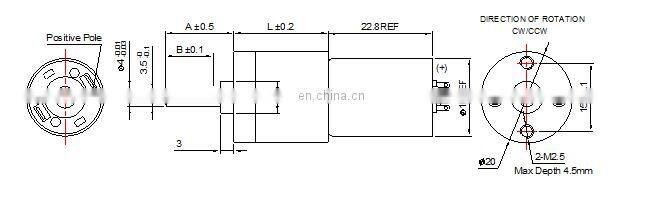

Outline drawing:
Applications:
Smart toys, Valve, Auto door, Padlocks, smart home use, Electronic locks, Robots arm, Sharing bike, Sharing umbrella locks, 360degree rotating display bracket for Iphone camera,Tissue machine, vending machine etc
