Help Center42mm Efficient 4000rpm 24 Volt dc Brushless Motor Inner Rotor 4235
Related Products
-
4235 Bldc Inner Rotor Motor 12V 18V 24V Brushless Internal Drive Motor Home Appliance UsageUS$ 7.25 - 21.75MOQ: 2 Pieces -
3200rpm 24v Brushless dc Motor Price for Massager Fascia GunUS$ 7 - 8.7MOQ: 200 Pieces
-
48mm 24v Brushless dc Motor Price for Muscle Fascia Massage GunUS$ 7 - 8.7MOQ: 200 Pieces
-
24v High Torque Brushless dc Motor 3200rpm for Muscle Fascia Massage GunUS$ 7 - 8.7MOQ: 200 Pieces
-
55mm 24v Brushless dc Motor for Home Electric Fascia GunUS$ 7 - 8.7MOQ: 200 Pieces
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT THE MAXIMUM EFFICIENCY | STALL | ||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| 4235-12 | 8-16V | 12V | 2860 | 0.21 | 2288 | 0.874 | 282.5 | 6.629 | 1412.3 | 3.529 |
| 4235-18 | 8-26V | 18V | 4290 | 0.25 | 3518 | 1.127 | 381.3 | 13.76 | 2118.5 | 5.123 |
| 4235-24 | 8-26V | 24V | 5200 | 0.30 | 4160 | 1.214 | 457.1 | 19.51 | 2285.7 | 4.871 |
Product model: 4235
Rated voltage: 12 ~ 24VDC
Rated power: 10-100w
Rated current: 0.03 ~ 2 (A)
Rated speed: 2000 ~ 10000 (RPM)
Rated torque: 0.02 ~ 1.0 (Nm)
Boundary dimension: Φ 42mm + length 35mm + shaft size
Drive mode: built-in sensing hall drive, speed regulation and other functions
Wiring mode: 5 wires are used for conventional speed regulation, and 3 wires are selected for non speed regulation
[red line] connect the positive pole of the power supply, and the positive and negative poles cannot be connected wrongly;
[black line] connect the negative pole of the power supply, and the positive and negative poles cannot be connected wrongly;
[white line] positive and reverse control line. When the line is disconnected, the motor will turn one direction, connect the negative pole with the black line, and the motor will change direction;
[blue line] PWM speed control line, connected to 0 ~ 5V pulse width governor, is also a brake line
[yellow line] FG signal line basic signal motor outputs one signal in one circle
Typical use: Widely used for industrial automation, electric tools, medical equipment, beauty instrument, micro water pump, industrial fan, robot, small household appliances, etc.
Advantage:Super long life, wide working voltage range, low noise, large torque, stable and reliable performance, positive and negative rotation, with brake, speed regulation and speed measuring line output. Long term customization.
Note: the positive and negative poles cannot be connected wrongly, which will cause the drive board to burn.

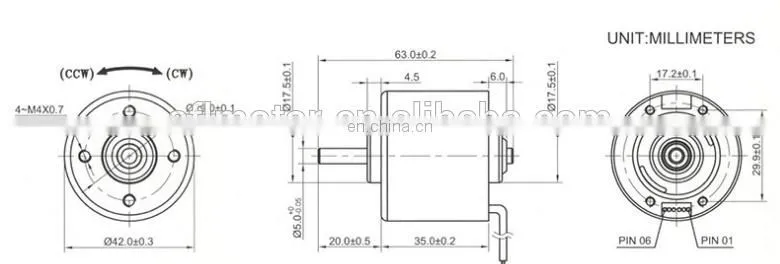

Appearance Size/mm
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Customization service as below are available
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
