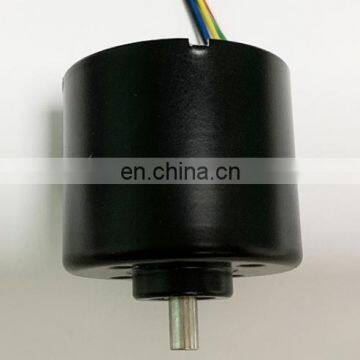

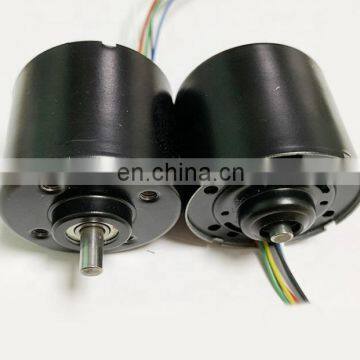

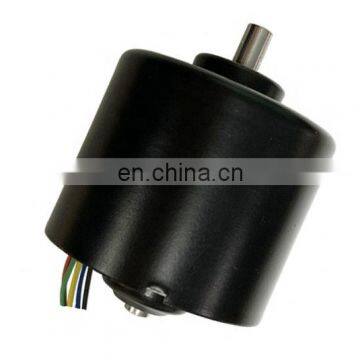

4235 bldc inner rotor motor 12V 18V 24V brushless internal drive motor home appliance usage

Product model: 4235

Rated voltage: 12 ~ 36VDC

Rated power: 10-100w

Rated current: 0.03 ~ 2 (A)

Rated speed: 2000 ~ 10000 (RPM)

Rated torque: 0.02 ~ 1.0 (Nm)

Boundary dimension: Φ 42mm + length 35mm + shaft size

Drive mode: built-in sensing hall drive, speed regulation and other functions

Wiring mode: 5 wires are used for conventional speed regulation, and 3 wires are selected for non speed regulation

[red line] connect the positive pole of the power supply, and the positive and negative poles cannot be connected wrongly;

[black line] connect the negative pole of the power supply, and the positive and negative poles cannot be connected wrongly;

[white line] positive and reverse control line. When the line is disconnected, the motor will turn one direction, connect the negative pole with the black line, and the motor will change direction;

[blue line] PWM speed control line, connected to 0 ~ 5V pulse width governor, is also a brake line

[yellow line] FG signal line basic signal motor outputs one signal in one circle

Typical use: Widely used for industrial automation, electric tools, medical equipment, beauty instrument, micro water pump, industrial fan, robot, small household appliances, etc.

Advantage:Super long life, wide working voltage range, low noise, large torque, stable and reliable performance, positive and negative rotation, with brake, speed regulation and speed measuring line output. Long term customization.

Note: the positive and negative poles cannot be connected wrongly, which will cause the drive board to burn.

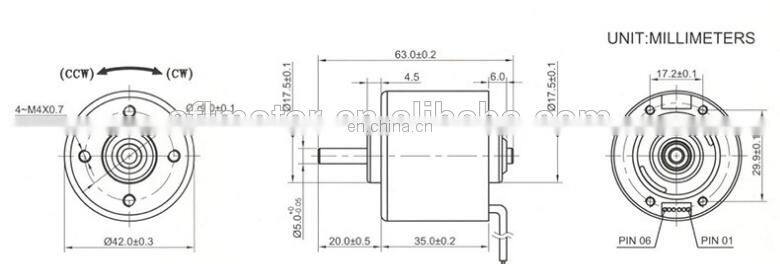

 Appearance Size/mm
