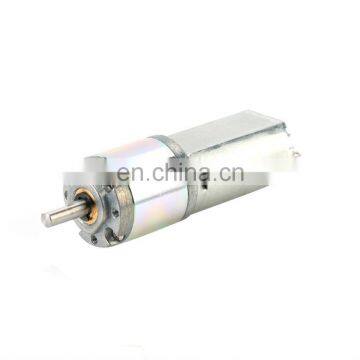

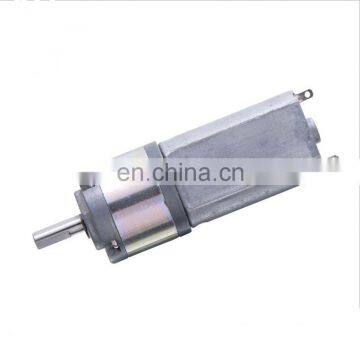

Help Center3v 6v 12v High Torque 20mm 180SHV dc Planetary Gear Motor
Related Products
-
N20 Planetary Gear dc Motor 6v for LockUS$ 1.63 - 1.9MOQ: 50 Pieces -
N20 Automotive Door Lock dc Motor 6v Plastic GearUS$ 1.63 - 1.9MOQ: 50 Pieces
-
12mm N20 Plastic Gear Motor Smart Lock dc MotorUS$ 0.85 - 1.06MOQ: 50 Pieces
-
N20 6v Pmdc Planetary Gear MotorUS$ 1.63 - 1.9MOQ: 50 Pieces
-
Long Life Span Torque 20g 3.7v 4.5v N30VA Small Planetary dc Engine Motor Factory WholesaleUS$ 1.5 - 2.5MOQ: 100 Pieces
SPM22K-180 Planetary gear motor
________________________________________________________________________________________________________________
Typical Applications:
- Medical Devices / Personal Care Products / Power Tools / Office Equipment
- Security Products / Banking Equipment / Automation / Smart Home Products
_________________________________________________________________________________________________________________
Planetary geared motors feature examples:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| v | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||
| SPM22K-180SHV-12240-150 | 9.0-13.0 | 12.0 | 52 | 0.075 | 40.6 | 0.272 | 285.7 | 2914.1 | 1.212 | 1298.6 | 13246 | 0.97 |
| SPM22K-180SHV-09400-79 | 20.0-25.0 | 12.0 | 117 | 0.05 | 91.3 | 0.184 | 187.7 | 1914.4 | 1.792 | 853.1 | 8702 | 0.66 |
* Other parameters: according to customer demand for design
_________________________________________________________________________________________________________________
Appearance Size(mm):
________________________________________________________________________________________________________________
Gearbox data:
Planetary gearbox reduction ratio, rated torque sufficient promise, box length
| Reduction Ratio | 1:3.5 | 1:4.8 | 1:12 | 1:17 | 1:23 | 1:43 | 1:58 | 1:79 | 1:107 | 1:107 | 1:150 | 1:204 | 1:276 |
| L (mm) | 14.2 | 18.8 | 23.4 | 23.4 | |||||||||
Rated maximum allowable torque (Kg.cm) |
2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
| Reduction Ratio | 1:375 | 1:509 | 1:713 | 1:967 | 1:1313 | 1:1782 | 1:2418 | / | / | / | / | / | / |
| "L" mm | 28 | 32.6 | / | / | / | / | / | / | |||||
| Rated maximum allowable torque (Kg.cm) | 5 | 5 | 6 | 6 | 6 | 6 | 6 | / | / | / | / | / | / |
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Customization service as below are available
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
