Home > Products > Planetary Gear Motor > N20 6v Pmdc Planetary Gear Motor
N20 6v Pmdc Planetary Gear Motor
US$ 1.63 - 1.9
/ Piece
50 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
Long Life Span Torque 20g 3.7v 4.5v N30VA Small Planetary dc Engine Motor Factory Wholesale
-
PMDC 12V 60rpm 130CAV dc Planetary Gear Motor Engine 5kg Torque for Smart Lock
-
High Torque PMDC Dia42mm 775PA Planetary Gear Motor for Automatic Curtain
-
3V 12V 24V High Torque Brush DC Planetary Gear Motor for Precision Instrument
-
Eccentric 10mm Plastic Gearbox M20 Micro dc Planetary Gear Motor
-
Micro Permanent Magnet dc Gear Motor, 10mm Diameter Planetary Gear Motor
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 12GR120-N20VA |
Product Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||
| 12GR120-N20VA-10121-3X | 2.0-4.5 | 3 | 120 | 90 | 95 | 180 | 4.9 | 50 | 0.17 | 24.9 | 250 | 0.40 |
| 12GR120-N20VA-06350-3X | 1.5-6 | 6 | 83 | 25 | 65 | 60 | 7.9 | 80 | 0.15 | 34.9 | 350 | 0.19 |
| 12GR120-N20VA-1390-3X | 2.0-7 | 3.7 | 200 | 95 | 165 | 350 | 15.9 | 161 | 0.80 | 89.9 | 900 | 1.95 |
Remarks:Other parameters: according to customer demand for design

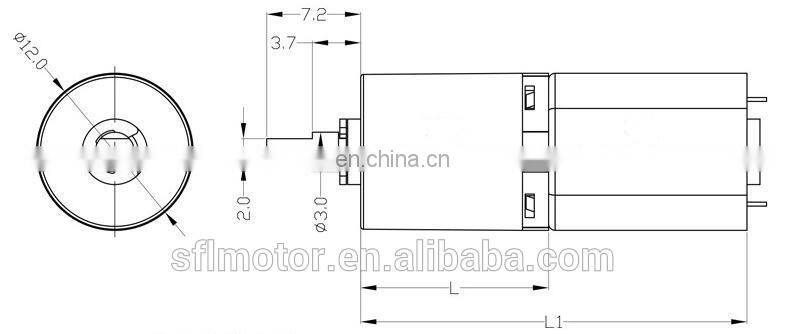

Appearance Size/ Unit: mm
Typical applications:
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Production Process
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
