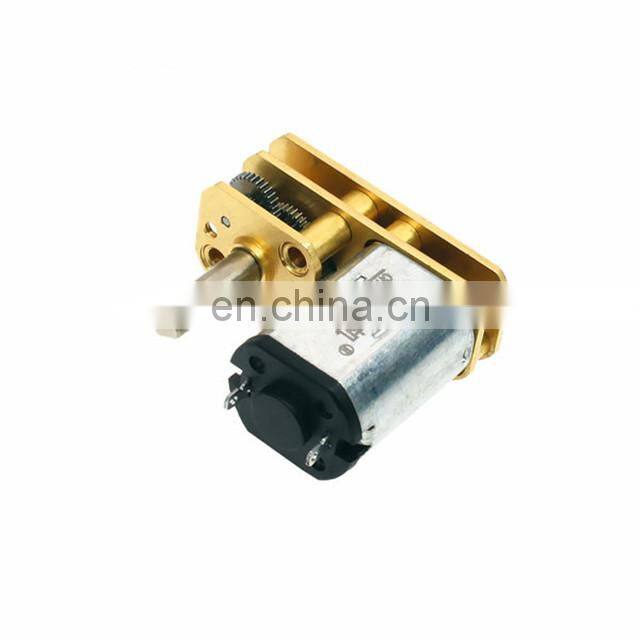

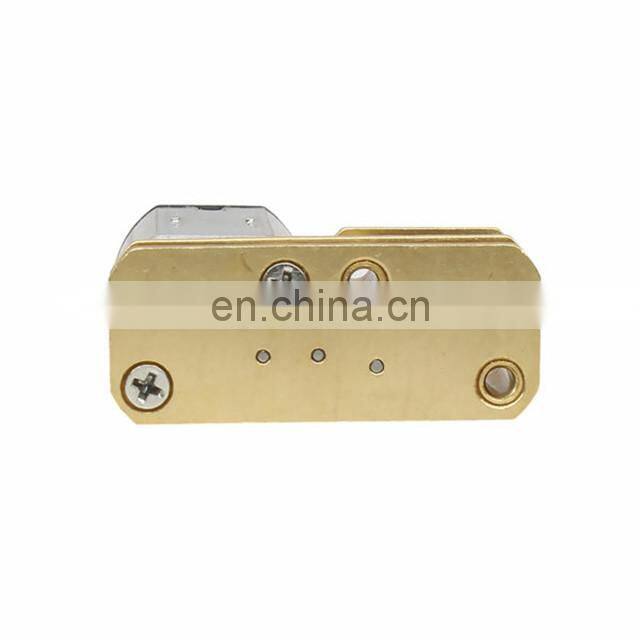

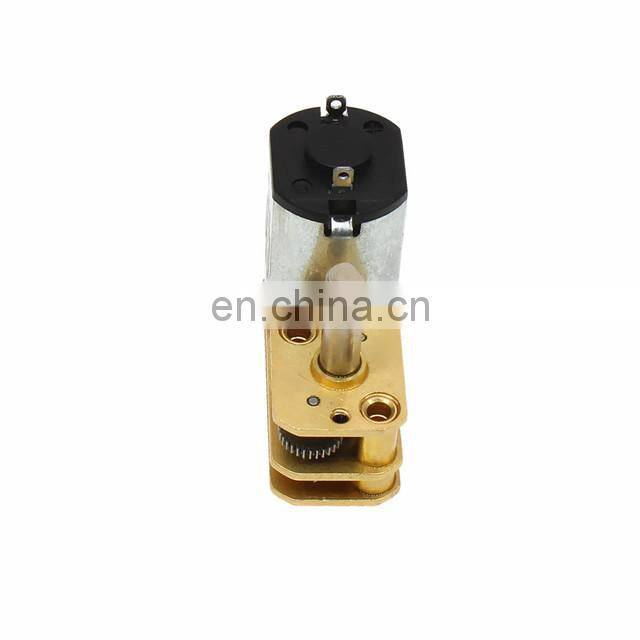

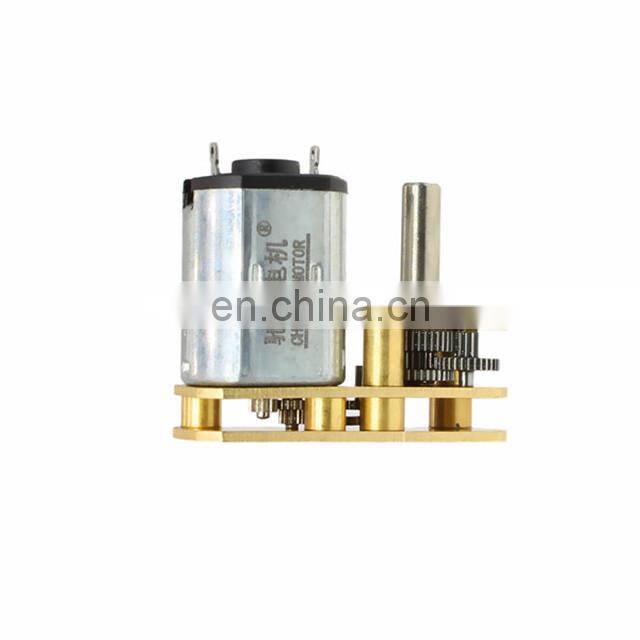

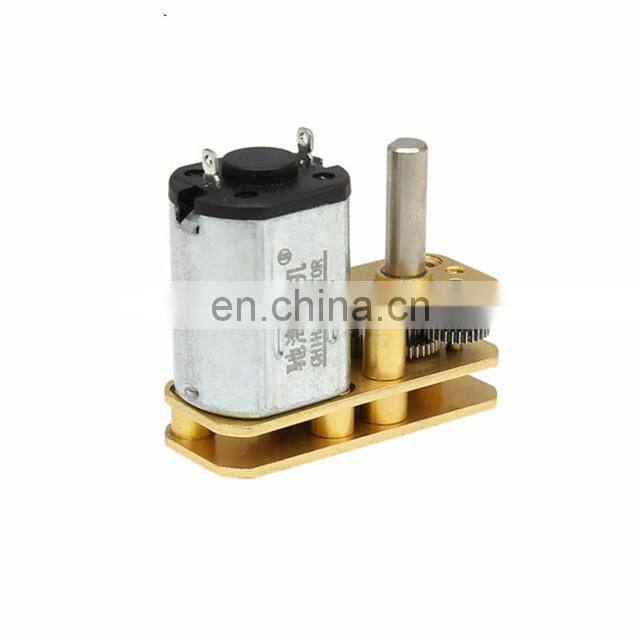

ChiHai Motor CHF-GM1024-N20VA DC Gear Motor N20 Mini Electric Gear Box with Gearwheel 3mm Shaft Diameter
ChiHai Motor CHF-GM1024-N20VA Gear Motor N20 Mini Electric Gear Box with Gearwheel 3mm Shaft Diameter
| product type: | CHF-GM1024-N20VA gear motors |
| output shaft length: | 10mm D |
| shaft diameter: | 3mm |
| voltage range: | DC 1.0-12.0V |
| weight: | about 11g |
If you are not sure whether it is what you need,you need our support
we have stock fot the below parameters.
Voltage:3V- 45A#-Out power:0.37W
Reduction Ratio |
100 |
150 |
200 |
350 |
380 |
500 |
No load Speed(rpm) |
120 |
80 |
60 |
34 |
30 |
24 |
No load Current(mA) |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
Nominal Torque(g.cm) |
200 |
300 |
400 |
700 |
800 |
1000 |
Nominal Speed(rpm) |
100 |
67 |
50 |
28 |
26 |
20 |
Nominal Current(mA) |
≤190 |
≤190 |
≤190 |
≤190 |
≤190 |
≤190 |
Stall Torque(kg.cm) |
≥1.0 |
≥1.5 |
≥2.0 |
can't exceed 2.8kg.cm |
||
Stall Current (A) |
≤0.7 |
≤0.7 |
≤0.7 |
≤0.7 |
≤0.7 |
≤0.7 |
Voltage:6V- 26A#-Out power:0.7W
Reduction Ratio |
100 |
150 |
200 |
350 |
380 |
500 |
No load Speed(rpm) |
165 |
110 |
82 |
47 |
45 |
33 |
No load Current(mA) |
≤50 |
≤50 |
≤50 |
≤50 |
≤50 |
≤50 |
Nominal Torque(g.cm) |
300 |
450 |
600 |
1000 |
1100 |
1500 |
Nominal Speed(rpm) |
135 |
90 |
65 |
40 |
35 |
27 |
Nominal Current(mA) |
≤160 |
≤160 |
≤160 |
≤160 |
≤160 |
≤160 |
Stall Torque(kg.cm) |
≥1.2 |
≥1.8 |
≥2.4 |
can't exceed 2.8kg.cm |
||
Stall Current (A) |
≤0.65 |
≤0.65 |
≤0.65 |
≤0.65 |
≤0.65 |
≤0.65 |
Voltage:6V- 35A#-Out power:0.2W
Reduction Ratio |
100 |
150 |
200 |
350 |
380 |
500 |
No load Speed(rpm) |
105 |
70 |
52 |
30 |
27 |
21 |
No load Current(mA) |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
Nominal Torque(g.cm) |
200 |
300 |
400 |
700 |
800 |
1000 |
Nominal Speed(rpm) |
75 |
50 |
35 |
21 |
20 |
15 |
Nominal Current(mA) |
≤130 |
≤130 |
≤130 |
≤130 |
≤130 |
≤130 |
Stall Torque(kg.cm) |
≥0.7 |
≥1.0 |
≥1.4 |
can't exceed 2.8kg.cm |
||
Stall Current (A) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
Voltage:12V- 05A#-Out power:0.2W
Reduction Ratio |
100 |
150 |
200 |
380 |
500 |
No load Speed(rpm) |
150 |
100 |
75 |
40 |
30 |
No load Current(mA) |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
Nominal Torque(g.cm) |
100 |
150 |
200 |
400 |
500 |
Nominal Speed(rpm) |
120 |
80 |
62 |
32 |
24 |
Nominal Current(mA) |
≤70 |
≤70 |
≤70 |
≤70 |
≤70 |
Stall Torque(kg.cm) |
≥0.9 |
≥1.3 |
≥1.8 |
can't exceed 2.8kg.cm |
|
Stall Current (A) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
Remark
For other parameters, please contact with us, we can design for you.
ChiHai Motor CHF-GM1024-N20VA Gear Motor N20 Mini Electric Gear Box with Gearwheel 3mm Shaft Diameter
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
