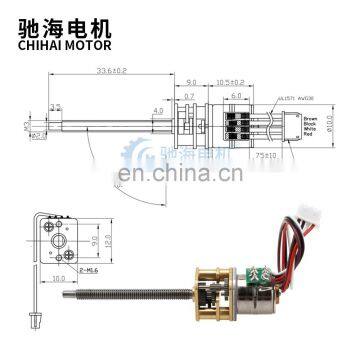

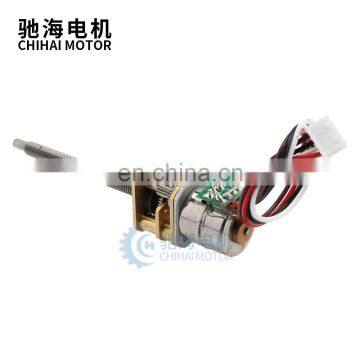

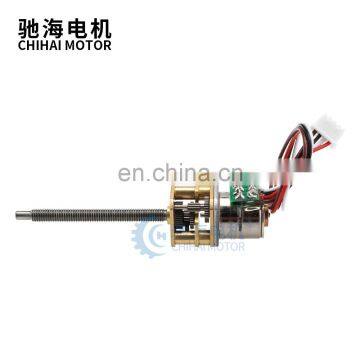

ChiHai Motor CHS-GM12-10BY screw shaft M3*33.6mm 2 phase 4 wire mini dc Stepper gear motor for ip camera 39 Ohm DC 5.0V
- 1000 Piece / Pieces per Month
- T/T Credit Card
- Chihai motor CHS-GM15BY 12mm 1000 pps DC 5V low noise mini stepper motor for medical equipment
- Chihai motor CHS-SM2016-SS32 20mm Micro Slider Linear Stepping Motor Screw Motor with Bracket for micro 3D printer
- chihai motor CHS-GM29-10BY 29mm DC 5V mini DC brushless 10by stepper secondary variable speed motor
- chihai motor CHS-GM29-15BY 29mm DC 5V mini DC brushless stepper secondary variable speed motor
- chihai motor CH-10BY-1557 DC 6.0V 10mm micro slider linear stepping motor screw motor with bracket
- SM1545-M3*P0.5 1mm Micro Linear Stepping Motor 9V Screw motor Permanent Magnetic bipolar 18 degree stepping motor for 3D printer
Product Details
Brand Name: | chihai | Place of Origin: | Guangdong, China | Model Number: | CHS-GM12-10BY-M3-32.3mm |
Certification: | CE |
Product Description
Model | CHS-GM12-10BY-M3-33.6mm | ||||||
Features | all metal reducer, brushless stepping motor. | ||||||
Size | 24mm * 21mm (without shaft and terminal). | ||||||
Axle diameter | M3 threaded shaft (batch customizable) | ||||||
Out axis length | length 33.6mm (batch customizable) | ||||||
Weight | about 11 grams | ||||||
Voltage | DC 5V | ||||||
Step Angle | 18° step angle | ||||||
Phase resistance | 39 Ω/Phase | ||||||
Applications | Intelligent platform, electric selfie stick, mobile phone camera tracking equipment, robot, intelligent manipulator, miniature printing equipment | ||||||
Optional accessories |
flange coupling, simple drive, etc.
|
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
