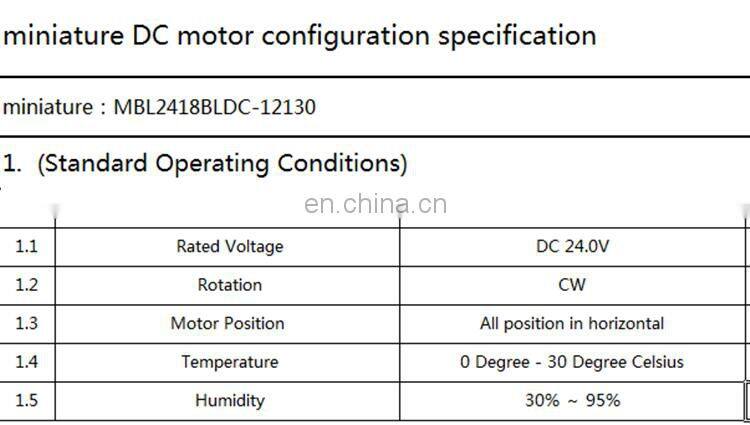

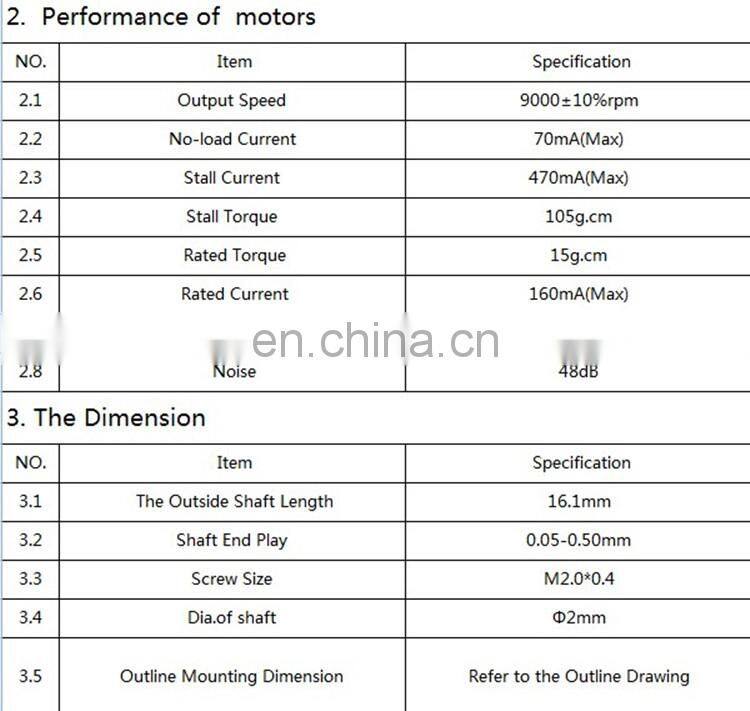

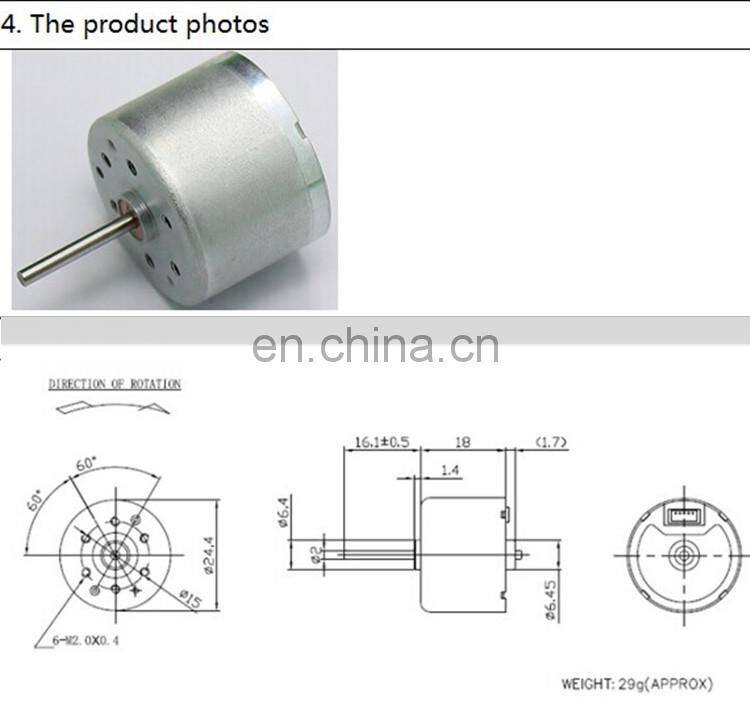

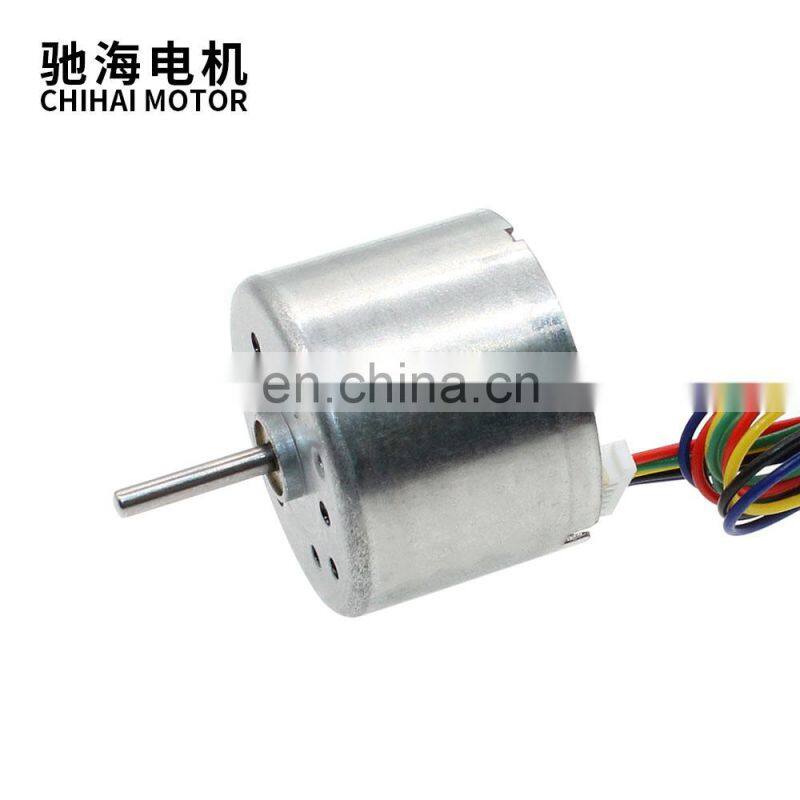

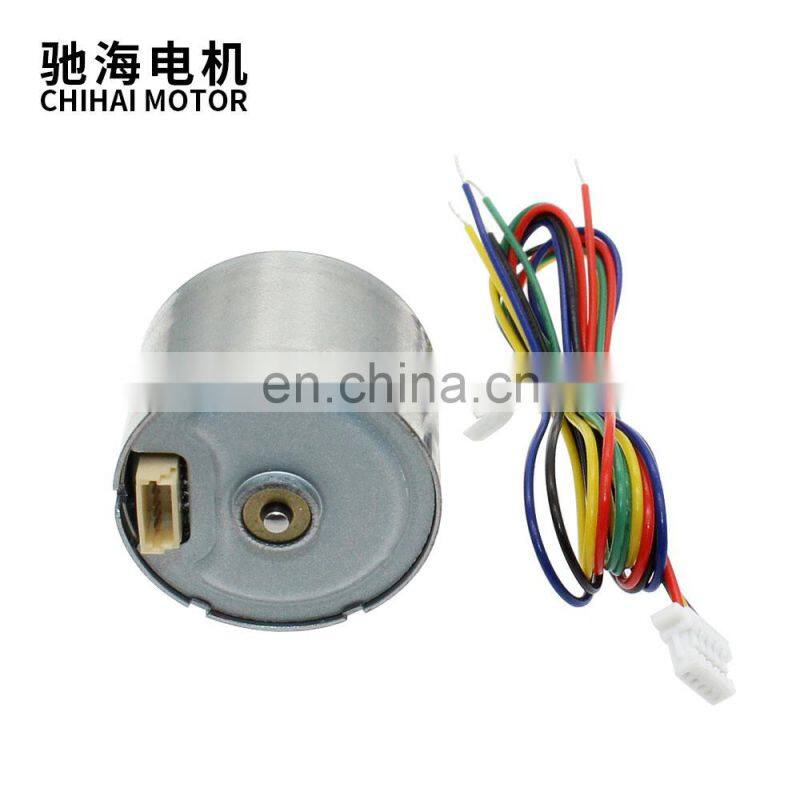

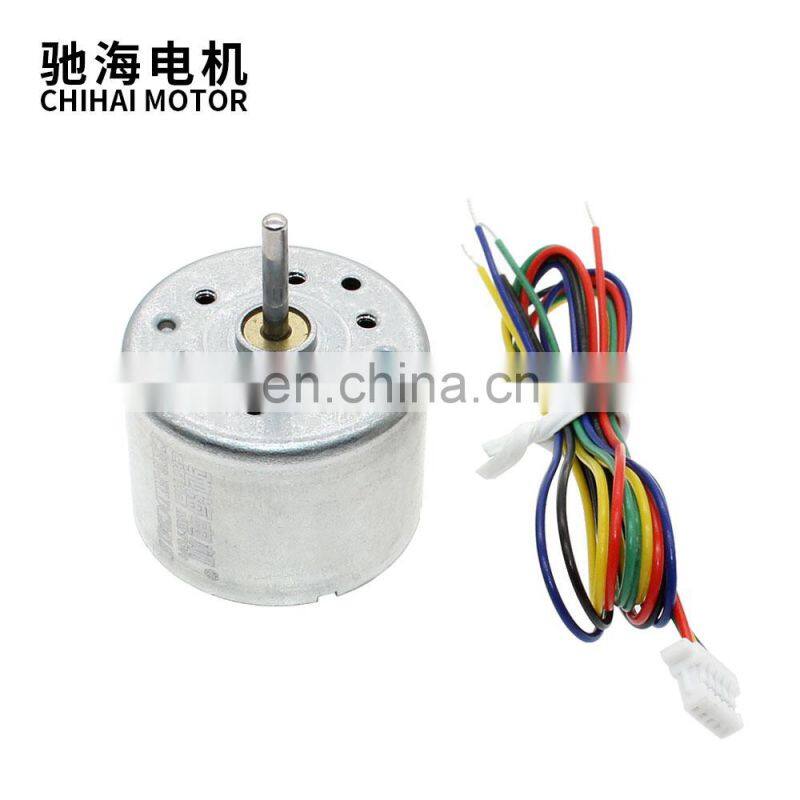

chihai motor CHR-2418BLDC-310 high speed 24V micro brushless dc motor for Robot, electronic lock
Brand: |
Chihai motor |
Model: |
CHR-2418BLDC-310 Permanent magnet brushless dc motor |
Outer diameter: |
25mm |
Power: |
2w |
Voltage: |
DC 24V |
No-load speed: |
9000±10% |
No-load current: |
|
Rated speed: |
7750±10% |
Rated current : |
0.16A |
Rated torque: |
15g.cm |
Stall current(A): |
0.43±10% |
Stall torque: |
105±10% |
Application: |
Robot, electronic lock, automatic rotating equipment, cradle head, etc |
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
