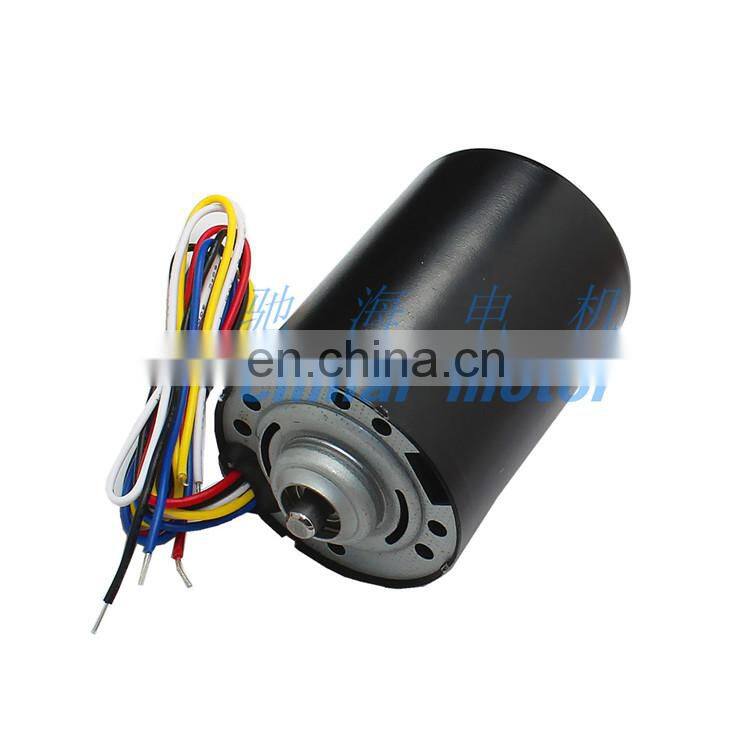

chihai motor CHB-BLDC4260 5mm shaft 24v 8000rpm Brushless dc motor dc for robot
- 1000 Piece / Pieces per Month
- T/T Credit Card
- chihai motor CHR-GM37-BLDC3650 Brushless reduction DC 12Vmotor with large torque for rocker arm adhesive machine
- Chihai Motor CHS-GM15BY DC5v 2-Phase 4-Wire Mini 15mm Full Metal Gear Stepper Stepping Motor for DIY Digital Camera
- Chihai Motor CHS-GM12-15BY M3 16.8mm threaded shaft micro stepping motor 2 phase 4-wire Stepper Motor for robot
- Chihai Motor CHS-GM12-15BY M3 20mm threaded shaft 2 phase 4 wire Stepper Motor for robot
- chihai motor CHS-GM29-10BY customized 29mm DC 5V mini DC brushless 10by stepper secondary variable speed motor
- chihai motor CHS-GM29-15BY 29mm customized mini dc gear motor DC 5V mini DC brushless stepper secondary variable speed motor
Product Details
Brand Name: | chihai | Place of Origin: | Guangdong, China | Model Number: | CHB-BLDC4260 |
Type: | Micro Motor | Certification: | CE | Torque: | 700g.cm |
Usage: | Boat, Car, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 2 |
Continuous Current(A): | 0.35A | Speed(RPM): | 8000rpm | Commutation: | Brushless |
Product Description

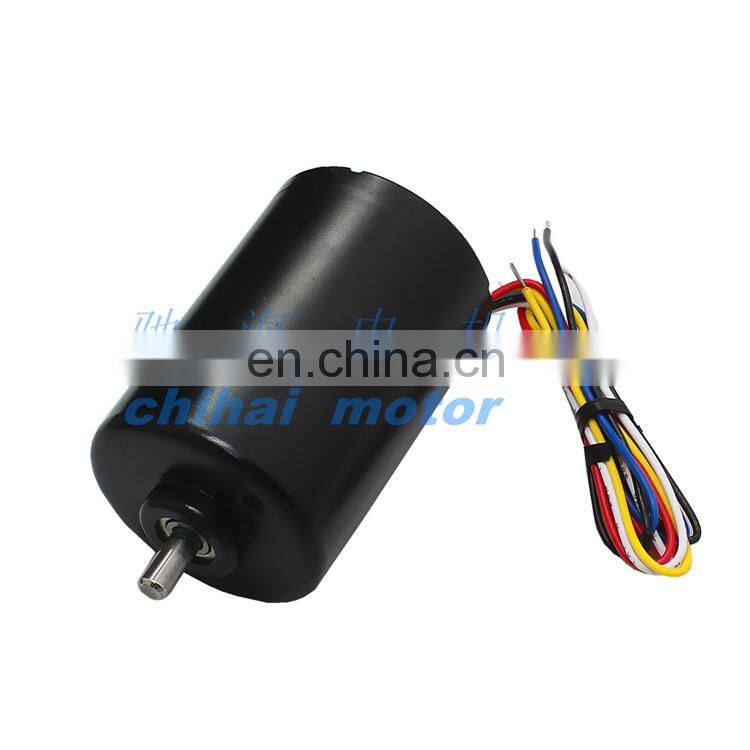

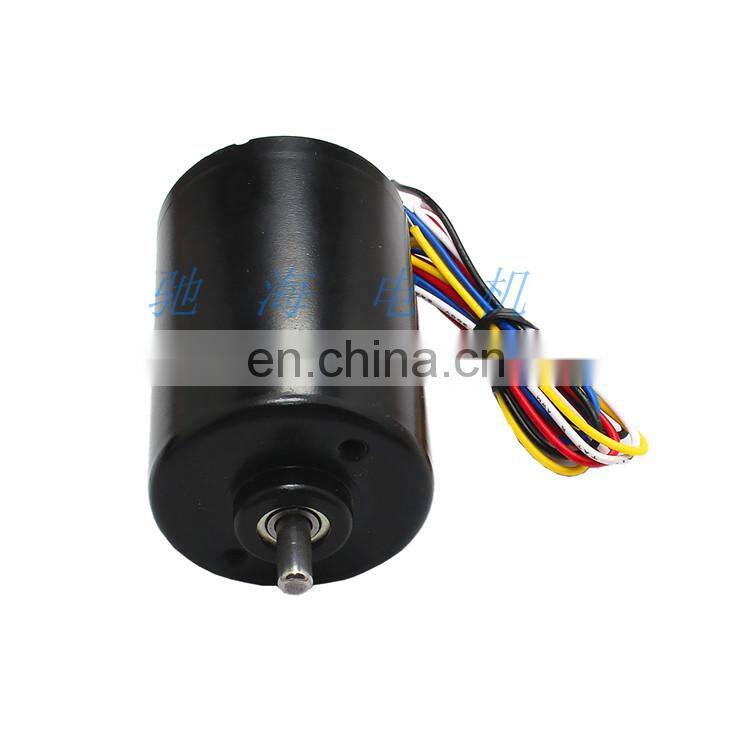

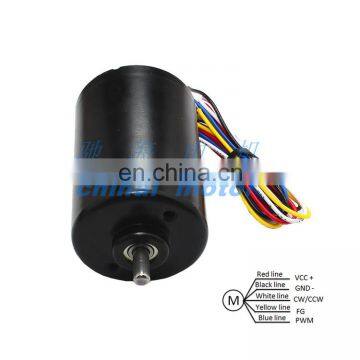

chihai motor CHB-BLDC4260 5mm shaft 24v 8000rpm Brushless dc motor dc for robot
Model: | CHB-BLDC4260 Brushless dc motor |
Size: | Φ42.0 |
Shaft length: | 15mm |
Shaft diameter: | 5mm Circular shaft |
Rated Voltage : | DC 12-24V wire length 270mm |

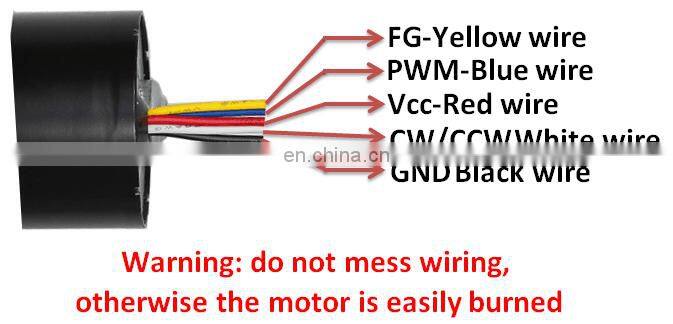

Drive mode: | built-in sense and hall drive |
The firmware performance: | The stator brushless,Eight pole magnetic,Rotor brushless, Six slot structure |

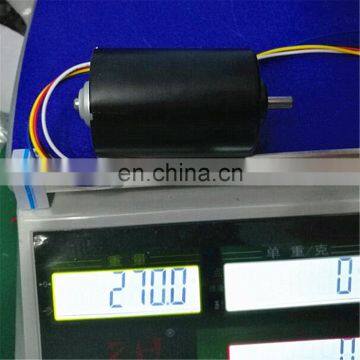

Weight: | About 270g |
application: | Robots, mechanical equipment, intelligent machines, electric Windows, electric doors, automatic rotating equipment, etc |
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
