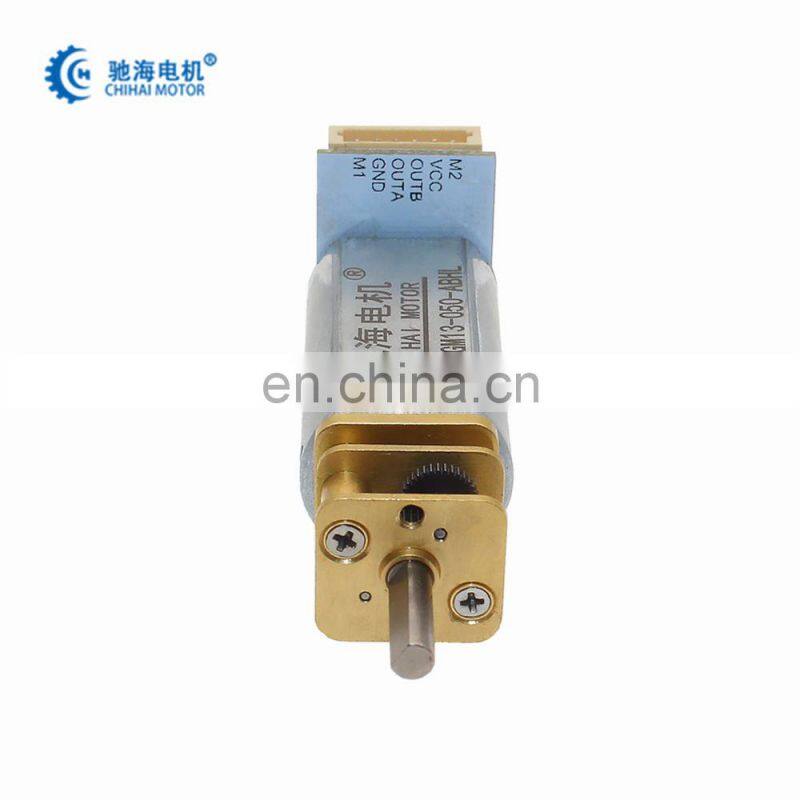

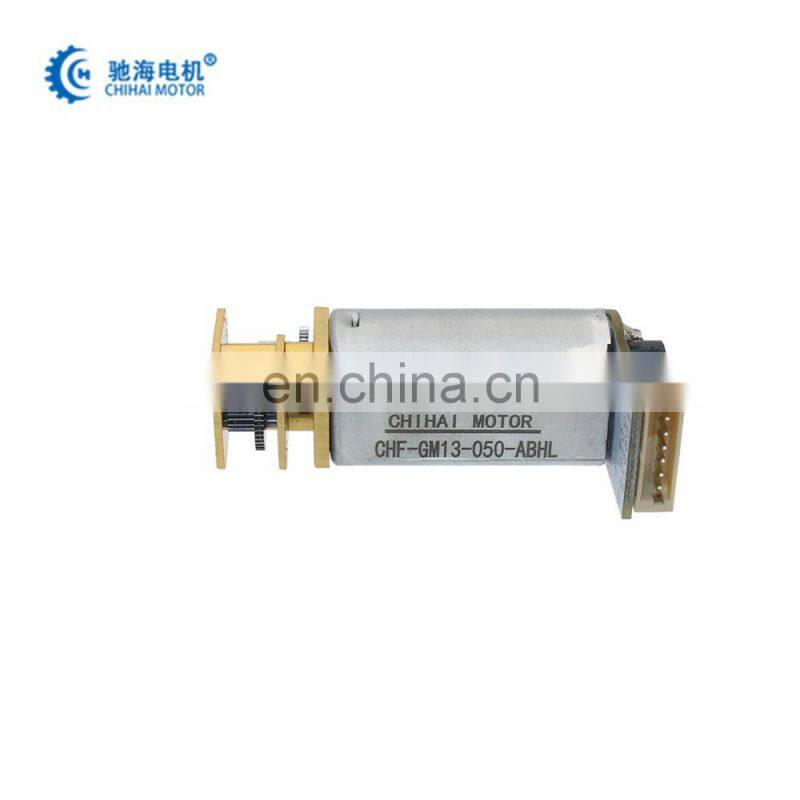

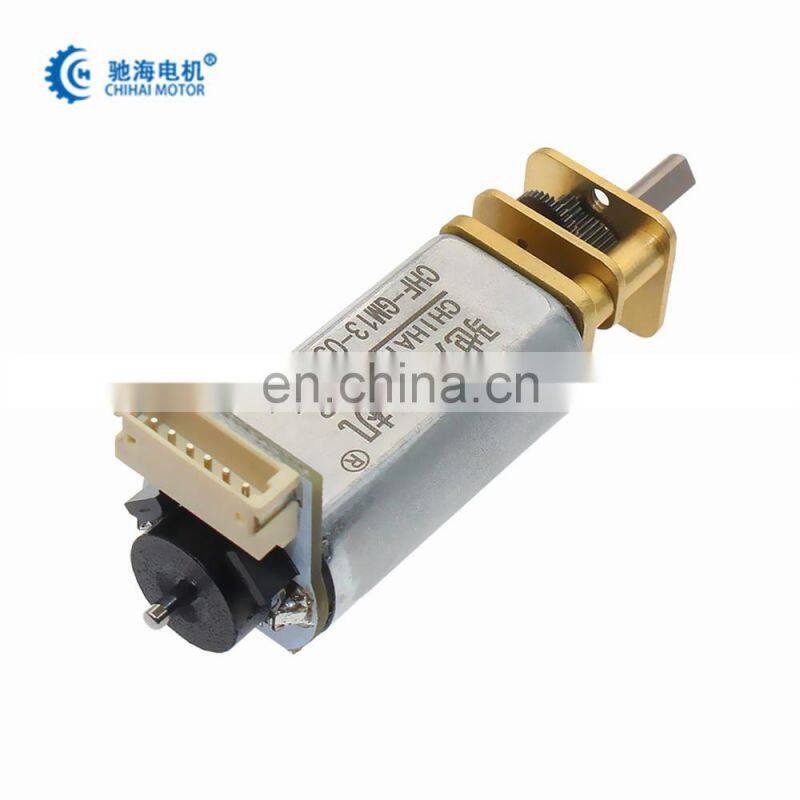

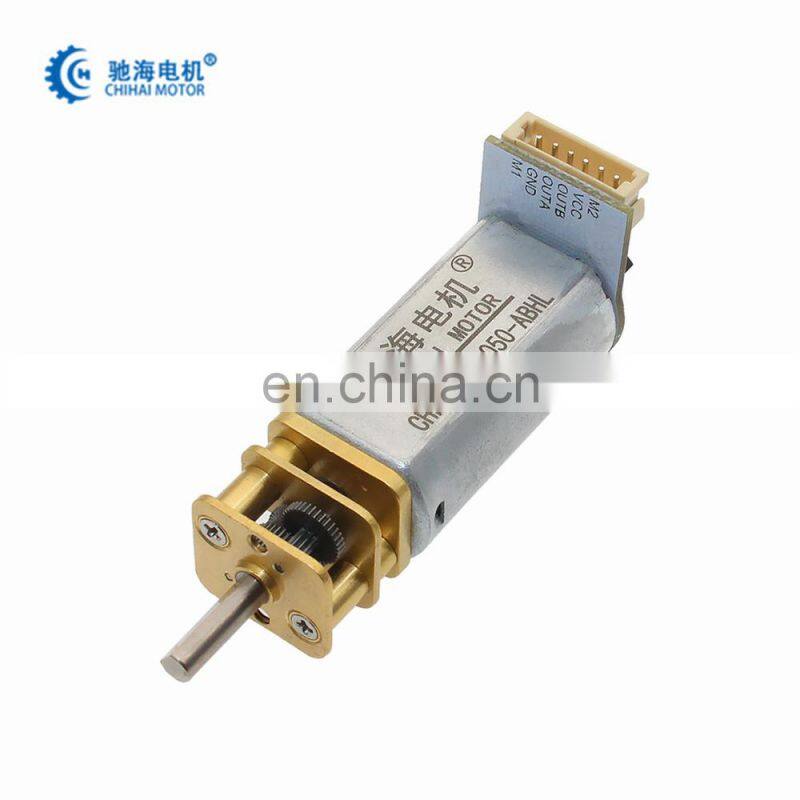

chihai motor CHF-GM13-050SHV Mini DC Brush Reducer Motor With Precise Metal Gear Box To Security Monitoring Equipment
Brand: |
Chihai motor |
Model: |
CHF-GM13-050-ABHL Magnetic Holzer Encoder Gear Motor |

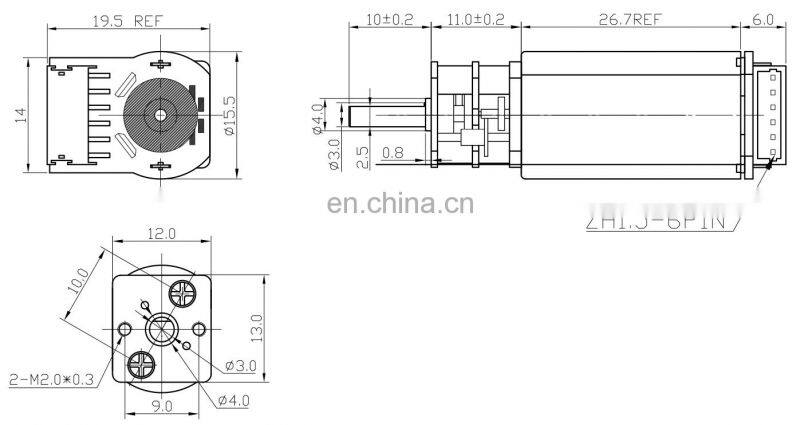

axle length: |
10mm D |
axle diameter: |
diameter 3mm, D type shaft |
voltage: |
2.0-12.0v |
weight : |
32 g or so |
wiring specification: |
ZH1.5-6PIN terminal head |
encoder Specification: |
A B dual phase encoder, 7 line basic signal voltage 3.3V or 5.0V |

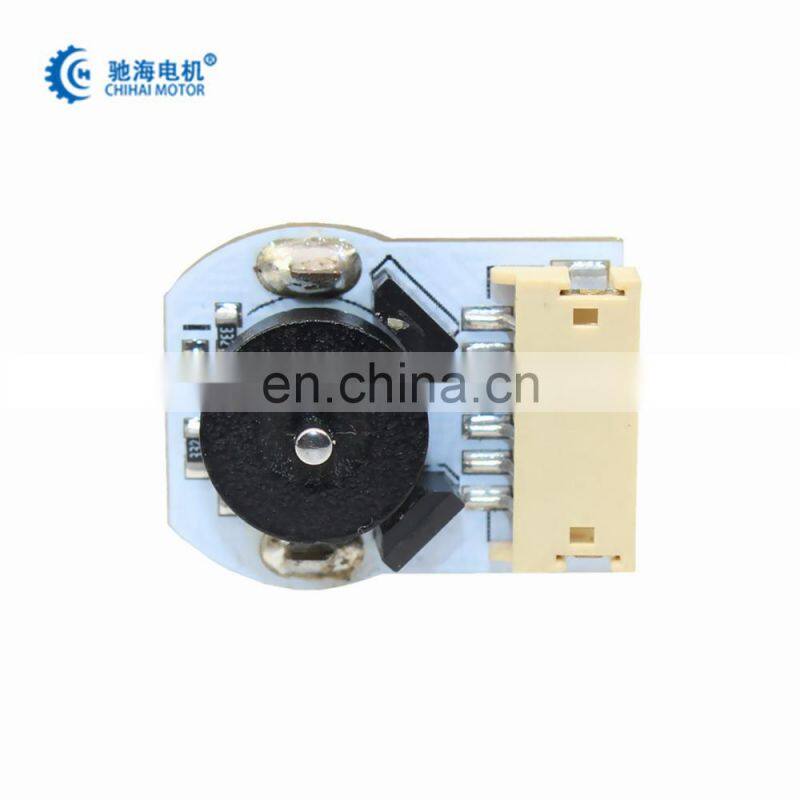

Holzer encoder data
Output signal: |
square wave, AB phase |
Encoder voltage: |
5V/3.3V |
Holzer response frequency: |
100KHz |
Base pulse number (resolution): |
7ppr |

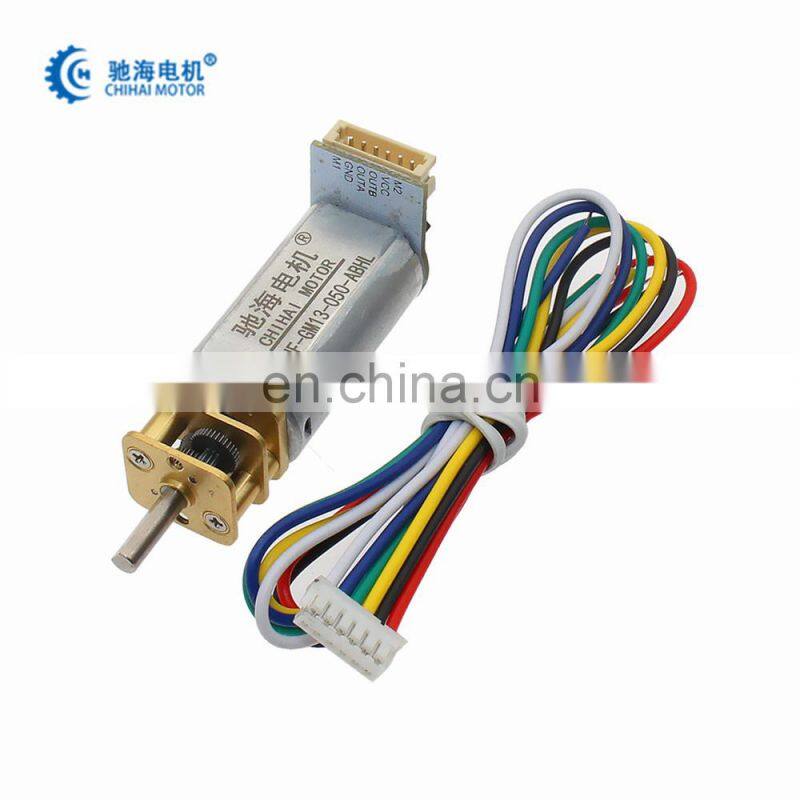

Terminal connection line order
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
