Help CenterBritish Standard Hot Dip Galvanized Steel Electrical Conduit Pipe
Related Products
-
Electrical Construction BS4568 Class 4 Hot Dipped Galvanized Threaded Rigid Steel Conduit PipeUS$ 500 - 500MOQ: 1 Ton -
BS4568 Class 3 and Class 4 Conduit Galvanized Steel Pipe gi PipeUS$ 500 - 500MOQ: 25 Tons
-
CGCC Materials All Color Pre-painted Galvanized/Aluzinc Coil/PPGI/PPGLUS$ 700 - 800MOQ: 25 Tons
-
Hot Galvanized Steel Coil Hot Rolled Steel Coil for SaleUS$ 500 - 700MOQ: 5 Tons
-
Zinc Coating Z40 Z80 Z100 Galvanized Steel Coil GI Coil With 0.5mm , 1.2mm, 1.4mm to 5mmUS$ 550 - 680MOQ: 5 Tons
Note:
1. Free sampling
2. 100% after-sales quality assurance.
3. Reply within 24 hours.
4. Any payment method.
5. All other specifications of steel pipes are available as your requirement! Factory price you will get from YouFa.

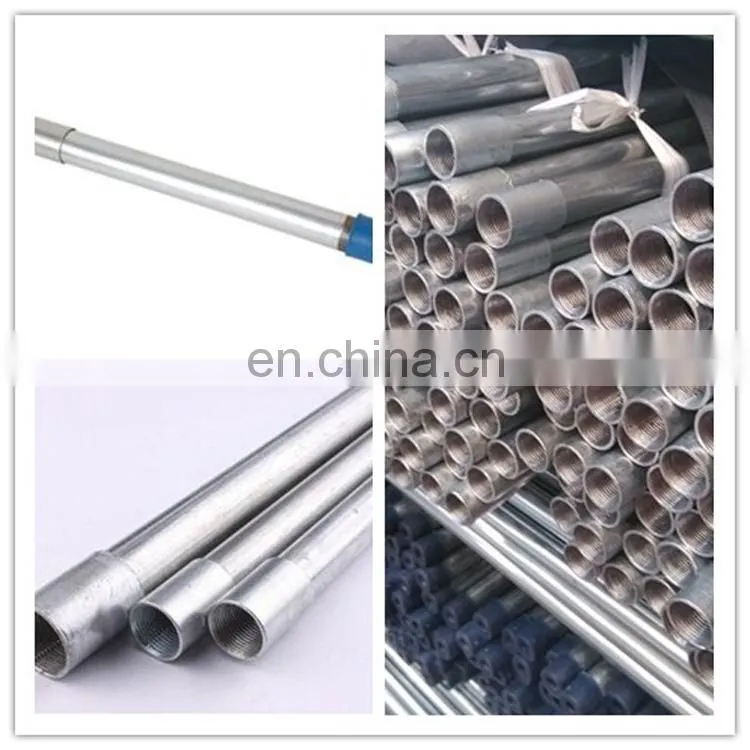

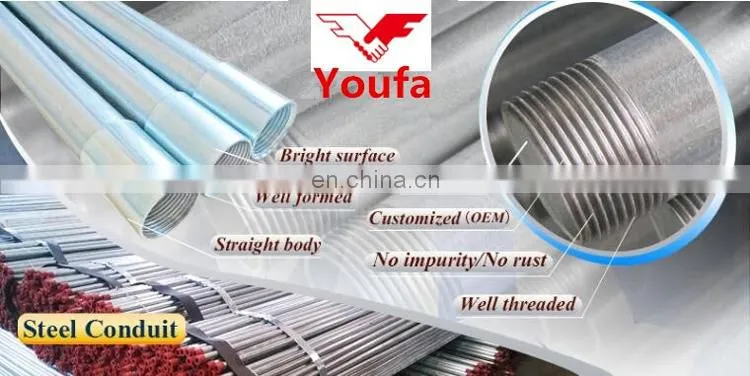

British standard hot dip galvanized steel electrical conduit pipe
Standard: BS4568: Part 1:1970
Class:Class3&class 4
Heavy corrosion protection by hot dipped galvanized on the exterior & interior surface of the conduit for class4
Linght corrosion protection by pre galvanized on the exterior & interior surface of the conduit class3
Threaded on both ends. One end fitted with coupling & the other protected by plastic end cap.
| Nominal Size | Outside Diameter(mm) | Wall Thickness(mm) | Thread Length(mm) | Length | |||
| mm | min | max | standard | thinwall | min | max | (mm) |
| 16 | 15.7 | 16.0 | 1.4±0.15 | 1.35 | 11.50 | 13.50 | 3750 |
| 20 | 19.7 | 20.0 | 1.6±0.15 | 1.35 | 13.00 | 15.00 | 3750 |
| 25 | 24.6 | 25.0 | 1.6±0.15 | 1.35 | 16.00 | 18.00 | 3750 |
| 32 | 31.6 | 32.0 | 1.6±0.15 | 1.35 | 18.00 | 20.00 | 3750 |
| 40 | 39.5 | 40.0 | 1.6±0.15 | 1.35 | 19.00 | 22.00 | 3750 |
| 50 | 49.5 | 50.0 | 1.6±0.15 | 1.35 | 19.00 | 22.00 | 3750 |
Standard: BS31
Class:Class 3
Heavy corrosion protection by hot dipped galvanized on the exterior & interior surface of the conduit.
Threaded on both ends. One end fitted with coupling & the other protected by plastic end cap.
| Nominal Size | Outside Diameter(mm) | Wall Thickness(mm) | Thread Length(mm) | Length | |||
| inch | min | max | standard | - | min | max | (mm) |
| 3/4" | 18.90 | 19.05 | 1.65±0.15 | - | 13.50 | 14.30 | 3750 |
| 1" | 25.25 | 25.40 | 1.65±0.15 | - | 16.70 | 17.50 | 3750 |
| 1-1/4" | 31.60 | 31.75 | 1.65±0.15 | - | 18.30 | 19.10 | 3750 |
| 1-1/2" | 37.80 | 38.10 | 1.85±0.15 | - | 19.10 | 20.60 | 3750 |
| 2" | 50.50 | 50.80 | 2.05±0.15 | - | 22.20 | 23.80 | 3750 |

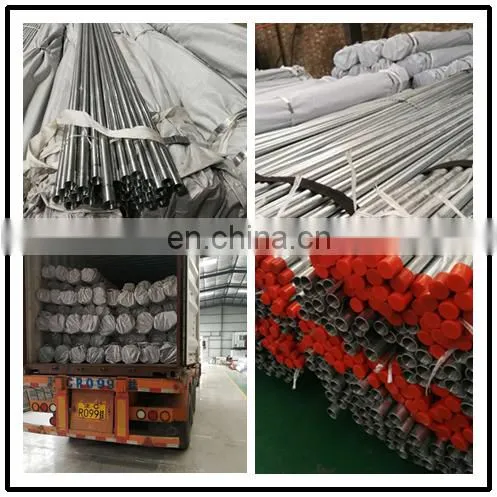

Packing:
10pcs/bundle & 10 bundles to one master bundle or according to customer's requirements
1) ISO 9001:2000 certificate;
2) UL certificate;
3) FPC Certificate (factory production control certificate in compliance with the requirements of BC1:2012)
4) CNAS Laboratory Accreditation Certificate.

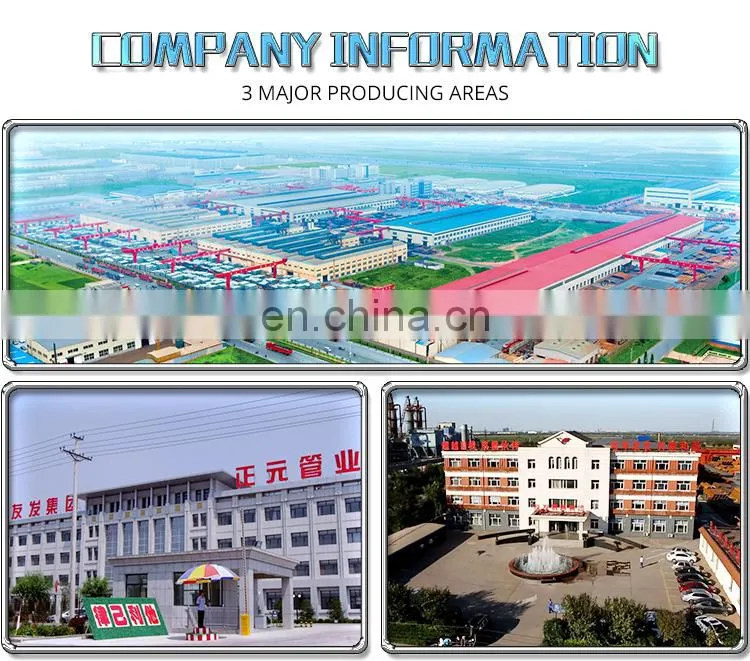

Company & Three major producing areas
TianJin YouFa Steel Pipe Group Company was founded on july 1st ,2000,with the headquarters located at the largest steel pipe production base in China-Daqiuzhuang Village, Tianjin City, and it is the largest steel pipe manufacturing enterprise producing many kinds of steel pipes in the world. 20 years focused on quality which is the life of the enterprise.
YouFa brand steel pipes have been successfully applied to Three George Project, Pudong International Airport, Capital International Airport, Beijing Olympic Stadium, Shanghai World Expo Exhibition Hall,Jiaozhou Bay Cross-sea Bridge, the tallest building in China-117 Building in Tianjin, Tian'anmen Parade Reviewing Stand, Shanghai Disneyland Park and other national priority projects.YouFa has been recognized as No.1 brand in the industry.
Customer & Exhibition cooperation
Favorable Comment
Best stainless steel pipe for liquid or oil or gas transfer/construction fastener Plastic plugs in both ends/Hexagonal bundles of max.2,000kg with several steel strips/Two tags on each bundle/Wrapped in waterproof paper/PVC sleeve according to customer ' s requirement.
Why choose us ?
1. Strength: The company that can produce 10 million tons welded pipe exclusively in the world.
2. Experience: 20 years focus on quality.
3. Quality: Reliable and World certified.
4. Delivery: Own factory in TianJin.
5. Price: Reasonable.
6. Service: Friendly and Responsible, no matter before or after cooperation.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if goods are in stock. Or it is 30 days if the goods are not in stock, it is according to your quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, We could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: LC, OR, TT and so on.
Q: Are you gold supplier and do trade assurance?
A: Definitely!
