Yellow or Green box busbar for crane hoist
HFP56 Enclosed Conductor Bar Specification
| Type | Poles | Conductor crosssection (mm²) | MAX Current (A) | MAX Voltage(V) | Weight (kg) |
| MCCB56-4-8/35 | 4 | 8 | 35 | 600 | 2.09 |
| MCCB56-4-10/50 | 10 | 50 | 2.16 | ||
| MCCB56-4-12/65 | 12 | 65 | 2.23 | ||
| MCCB56-4-15/80 | 15 | 80 | 2.30 | ||
| MCCB56-4-20/100 | 20 | 100 | 2.43 | ||
| MCCB56-4-25/120 | 25 | 120 | 2.56 | ||
| MCCB56-4-35/140 | 35 | 140 | 2.95 | ||
| MCCB56-4-50/170 | 50 | 170 | 3.25 | ||
| MCCB56-4-70/210 | 70 | 210 | 3.85 | ||
| MCCB56-4-80/240 | 80 | 240 | 4.16 |
Ptotection Class: IP43
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
| Type | Poles | Conductor crosssection (mm²) | MAX Current (A) | MAX Voltage(V) | Weight (kg) |
| MCCB56-3-10/50 | 3 | 10 | 50 | 600 | 1.95 |
| MCCB56-3-15/80 | 15 | 80 | 2.13 | ||
| MCCB56-3-20/100 | 20 | 100 | 2.24 | ||
| MCCB56-3-25/120 | 25 | 120 | 2.37 | ||
| MCCB56-3-35/140 | 35 | 140 | 2.63 | ||
| MCCB56-3-50/170 | 50 | 170 | 3.02 |
Ptotection Class: IP43
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
HFP56 Enclosed Conductor Bar Accessories

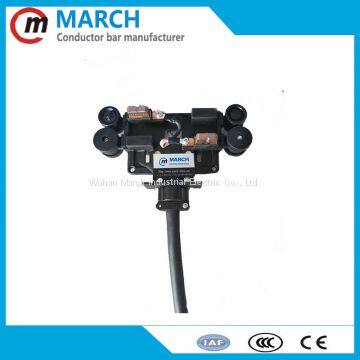

1. Current collector
| Type | Weight(KG) | Poles | Power Rating(V) | Order No |
| 56JD-4/25 | 0.49 | 4 | 25A | 561001 |
| 56JD-4/40 | 0.52 | 40A | 561002 | |
| 56JD-4/60 | 0.99 | 60A | 561003 | |
| 56JD-4/80 | 1.23 | 80A | 561004 | |
| 56JD-4/40 | 0.85 | 3 | 80A | 561005 |
Note: Collector 25A is for 35A-50A ,Collector 40A is for 65A-120A ,Collector 80A is for 140A-240A
Connecting Cable : 0.8m /1m
Max Speed:150m/min
With sealing strip speed:100m/min
2. Jointing box
| Type | Weight(kg) | Material | Order-No |
| 56LJJ-1 | 0.091 | ABS | 562001 |
| 56LJJ-2 | 0.156 | ABS | 562002 |
Self Locking , and installed is very easy
3.Hanger (Anchor hanger, Sliding hanger, Fixpoint hanger)
| Type | Weight (kg) | Material | Order-No |
| 56DWJ-1 | 0.251 | Galvanized steel | 562003 |
| 56DJ-1 | 0.186 | Galvanized steel | 562004 |
| 56DJ-2 | 0.212 | Galvanized steel | 562005 |
4.End cap
| Type | Weight(kg) | Material | Order-No |
| 56DW | 0.071 | ABS | 563007 |
5.End feed and Middle feeding
| Type | Weight(kg) | Material | Order-No |
| 56DG | 0.225 | ABS | 563008 |
| 56ZG/500-X/M | 565001 |
Middle feeding with 0.5Meter powerail
6.Tow Arm
| Type | Weight(kg) | Material | Order-No |
| 56QYQ-1 | 0.53 | Galvanized steel | 566004 |
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
We main supply 60amp/100amp/125amp -200amp-500amp -1000amp safe conductor bar, 50amp-240amp enclosed conductor bar, 50amp-140amp high tro reel system , C30 C32 C63 C40 Festoon system trolley , and High temperature high voltage copperhead busbar .
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
