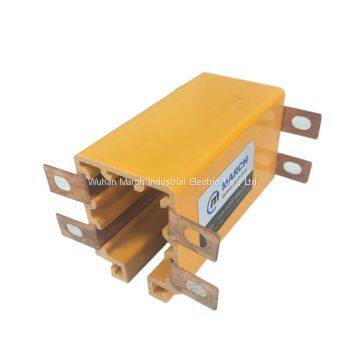

4P 5P PVC COPPER BUSBAR for crane hoist

HFP56 Enclosed Conductor Bar Specification

Ptotection Class: IP43

Standard Legnth: 4m

Min.R=0.8M

Support Spacing:For straight runs 1.2m

Ptotection Class: IP43

Standard Legnth: 4m

Min.R=0.8M

Support Spacing:For straight runs 1.2m

HFP56 Enclosed Conductor Bar Accessories

1. Current collector

Note: Collector 25A is for 35A-50A ,Collector 40A is for 65A-120A ,Collector 80A is for 140A-240A

Connecting Cable : 0.8m /1m

Max Speed:150m/min

With sealing strip speed:100m/min

2. Jointing box

Self Locking , and installed is very easy

3.Hanger (Anchor hanger, Sliding hanger, Fixpoint hanger)

4.End cap

5.End feed and Middle feeding

Middle  feeding with 0.5Meter powerail

6.Tow Arm

Payment : T/T, L/C, paypal

Packing :Wooden case or carton

Delivery  time: 7-15 Working days after confirm the order

Wuhan March Industrial Electric Co.,Ltd ,

which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !

Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.

We main supply 60amp/100amp/125amp -200amp-500amp -1000amp safe conductor bar, 50amp-240amp enclosed conductor bar, 50amp-140amp high tro reel system , C30 C32 C63 C40 Festoon system trolley , and High temperature high voltage copperhead busbar .

Application project ---Feedback from Customer

They are Widely used in :

Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
