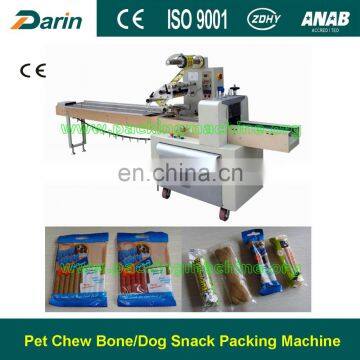

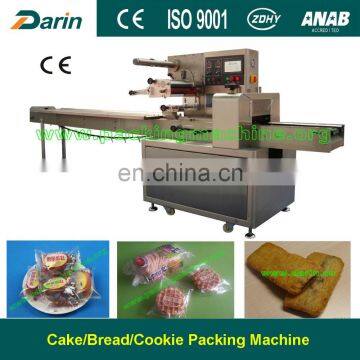

Help CenterHorizontal Flow Small Candy /biscuit/cookies Packing Machine/ Pillow Type Bag Package Machiney
Related Products
-
Vertical Form Fill and Seal Packaging MachinesUS$ 20,000 - 55,000MOQ: 1 Set -
Automatic Rotary Retort Pouch Packing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Rotary Pouch Packing Machine for Zipper With Stand-up PouchUS$ 10,000 - 50,000MOQ: 1 Set
-
Vertical Packing Machine for Pet Food/ Rice/ Sugar/puffed Snacks PackingUS$ 20,000 - 55,000MOQ: 1 Set
-
5kg 10kg 15kg 25kg 50kg Rice/sugar/puff Food/beans Packing MachineUS$ 20,000 - 50,000MOQ: 1 Set
Introduction
Cookies Packing Machine is used to pack regular objects, like chocolate, instant noodle, biscuit, bread, egg roll, moon cake, medicine, hardware, industrial parts, paper box, plate, etc.
Certificate
CE CERTIFICATE provided, which strictly meet CE standards and EU countries’ import policy.
ISO 9001 CERTIFICATE provided, which strictly meet ISO 9001 standards.
/watch?v=B4Pz3gS5kPI
/watch?v=XJ2j1yNlvcg
Advantages
1. Dual frequency conversion, Bag length can be set and cut in one step, saving time and film.
2. Reasonable construct, stable working performance, and PLC computer control, easy operation.
3. Self fault diagnosis, clear fault display.
4. High sensitivity photo cell color tracing, numerical input of cutting and sealing position for extra accuracy.
5. Positioned stop function, without sticking knife or wasting film.
6. Fully automatic and continuous.
7. Various package sizes can be made.
8.Various packing material can be used, like OPP, PE, PVC, OPP/CPP, KOP/CPP,ALU-FOIL, etc.
Technical Parameters
Model |
LSU-220P |
LSU-350P |
LSU-420P |
LSU-620P |
Film width |
Max. 250mm |
Max. 350mm |
Max. 450mm |
Max. 600mm |
Bag length |
65-190mm or 120-280mm |
65-190mm or 120-280mm |
120-450mm |
120-450mm |
Bag width |
30-110mm |
30-160mm |
50-160mm |
50-200mm |
Production height |
5-40mm |
5-40mm |
10-80mm |
10-80mm |
Film roll diameter |
Max. 320mm |
Max. 320mm |
Max. 320mm |
Max. 320mm |
Film thickness |
0.03-0.07mm |
0.03-0.07mm |
0.03-0.07mm |
0.03-0.07mm |
Packing speed |
40-230bag/min |
40-230bag/min |
20-80bag/min |
20-80bag/min |
Power |
220V, 50/60Hz, 3.4kw |
220V, 50/60Hz, 2.4kw |
220V, 50/60Hz, 4.2kw |
220V, 50/60Hz, 4.6kw |
Weight |
500kg |
600kg |
800kg |
900kg |
Dimension |
3770 x 640 x 1360mm |
4020 x 770 x 1450mm |
4380 x 870 x 1500mm |
4380 x 970 x 1500mm |
