Manufacturer of Flow Rate 200L Oil purifier Machine plant in China,Flow Rate 200L Oil purifier unit
Manufacturer of Flow Rate 200L Oil purifier Machine plant in China,Flow Rate 200L Oil purifier unit

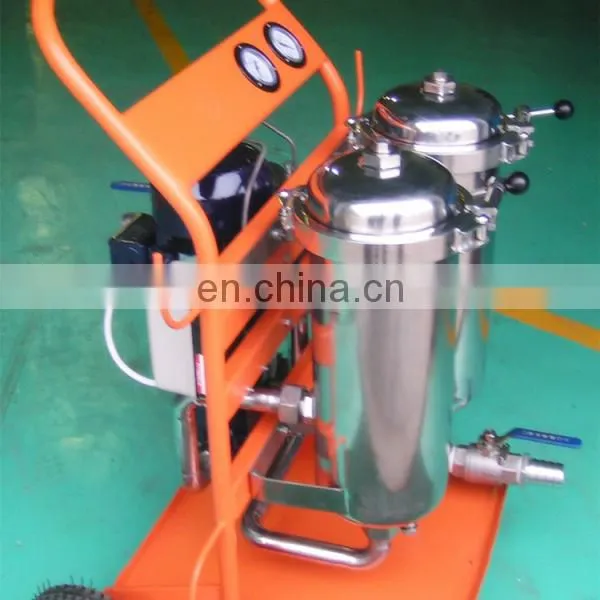

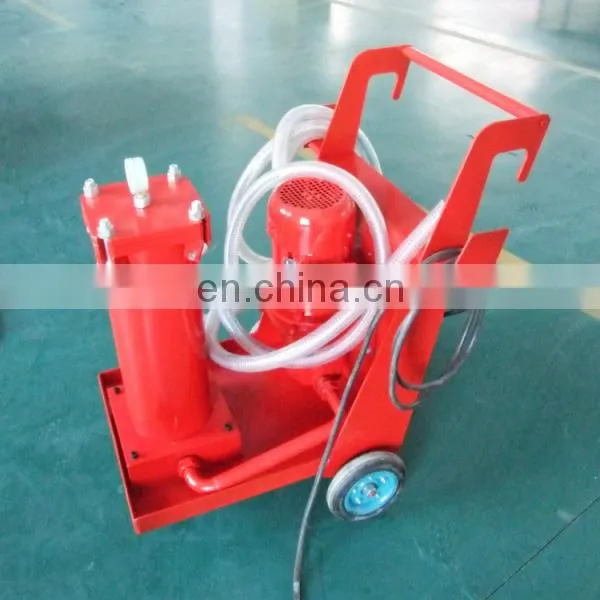

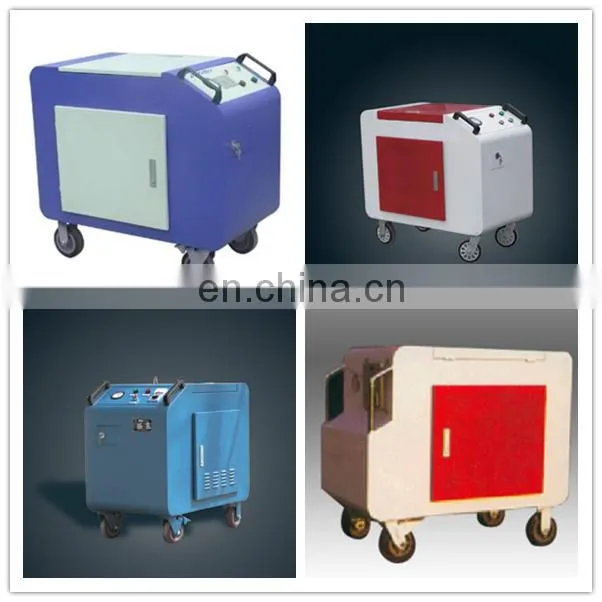

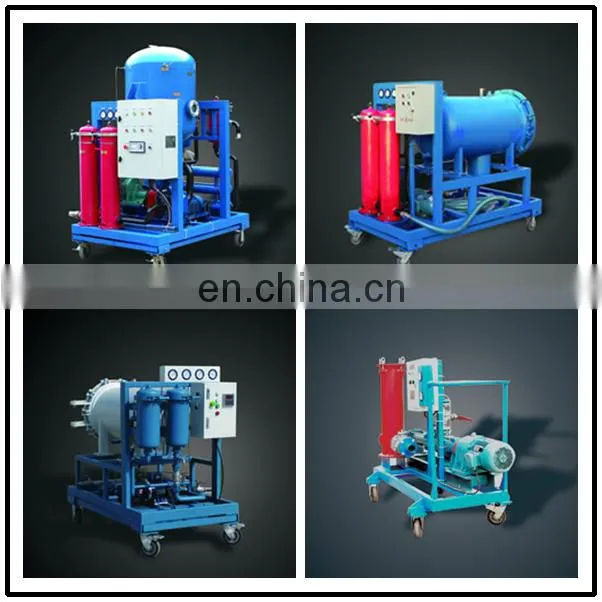

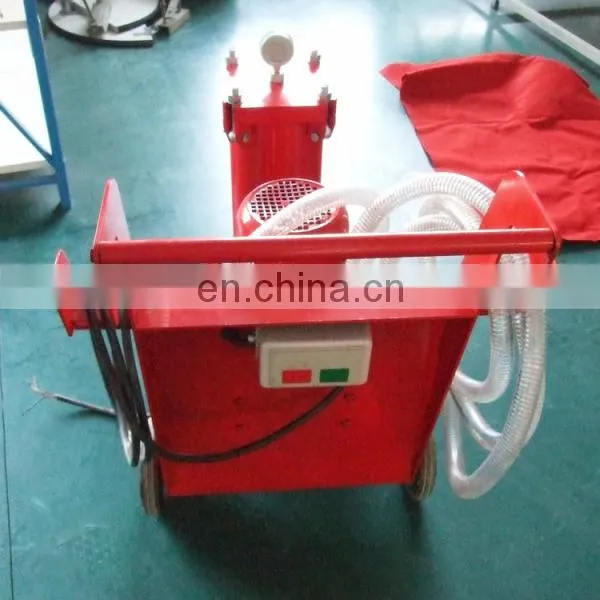

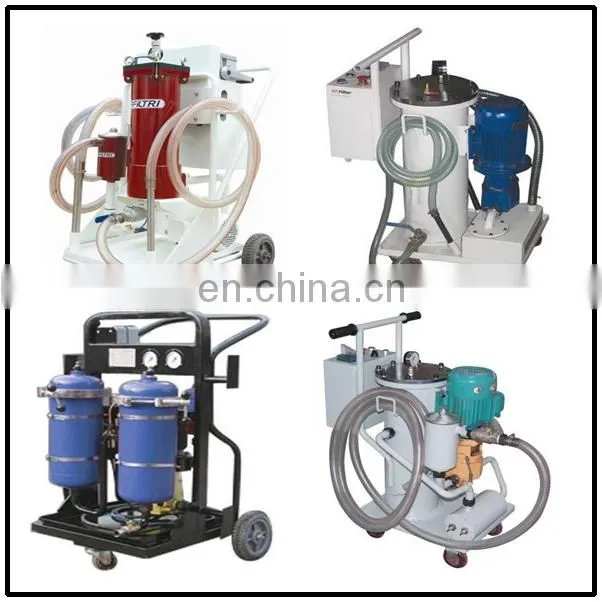

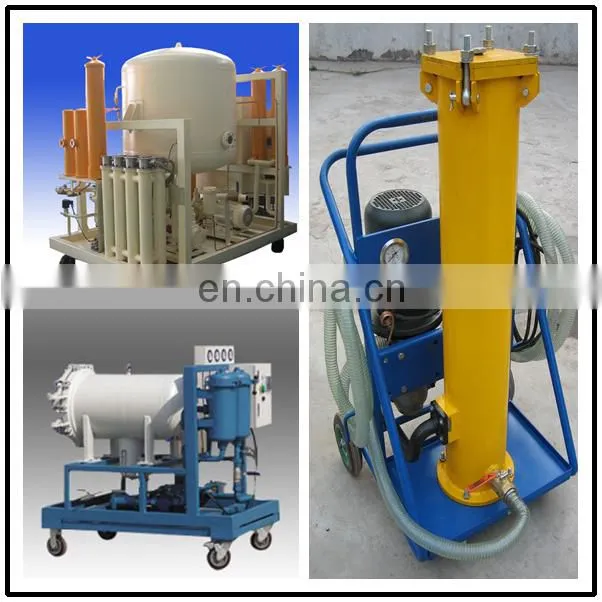

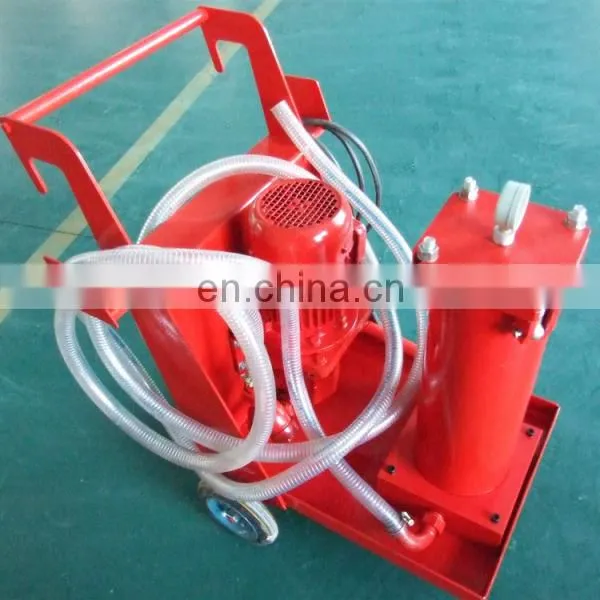

Product Show
Applications
Purifier turbine oil and transformer oil
Removing water and impurities filtration of hydraulic lubricating oil
Improve hydraulic lubrication system cleanliness
Various types of oil regeneration purifier
Efficient vacuum oil filter suitable for:
Turbine oil ,hydraulic oil ,Lubricating oil ,Insulating oil ,Transformer oil ,Capacitor oil ,Compressor oil
Efficient vacuum oil filters’ main functions:
Dehydration Degassing Removal of mechanical impurities
Also in parallel with the reproducing apparatus could:
Get rid of acid Decolor Improve the insulation strength
Technical Parameters
MODEL |
ZLYC-25J-*/** |
ZLYC-50J-*/** |
ZLYC-100J-*/** |
ZLYC-200J-*/** |
Rated Flow (L/min) |
25 |
50 |
100 |
200 |
Rated Pressure (Mpa) |
0.6 |
|||
Working vacuum (Pa) |
≤-0.095 |
|||
After filtration water content (ppm) |
5~30 |
|||
|
Filtered air content (Volume ratio) |
≤-0.2% |
|||
Fine filtration accuracy (μm) |
3,5,10 |
|||
Acid value (mgKOH/g) |
≤-0.03 |
|||
Total power (Kw) |
26 |
36 |
65 |
135 |
Voltage ( V) |
AC380V three-Phase |
|||
Weight (Kg) |
560 |
680 |
960 |
1500 |
Dimensions |
1500 X900 X1600 |
1600 X980 X1800 |
1800 X1080 X2000 |
2200 X1200 X2200 |
Note: * is the two grade fine filter accuracy,such as 003 is 3 microns.
** is the suitable medium,Omission:No requirement.
S:need add Acid grease.
*** Adaptation medium viscosity:≤100cSt
*** Medium viscosity>100cSt,need to add the heating device.

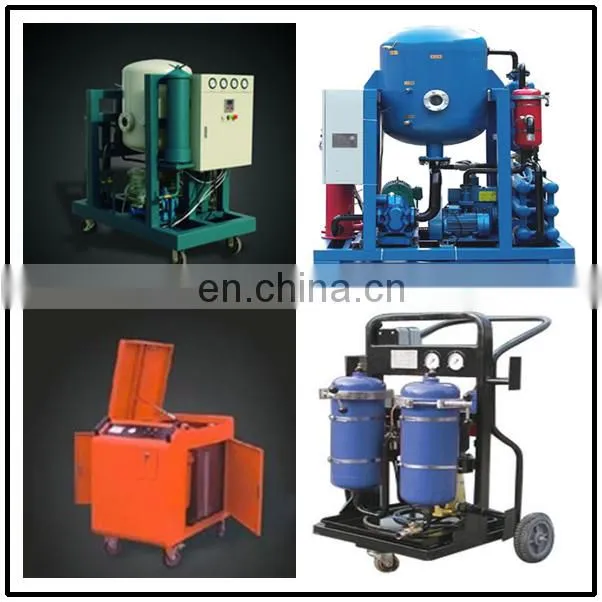

We also offer following Filtering Equipment:

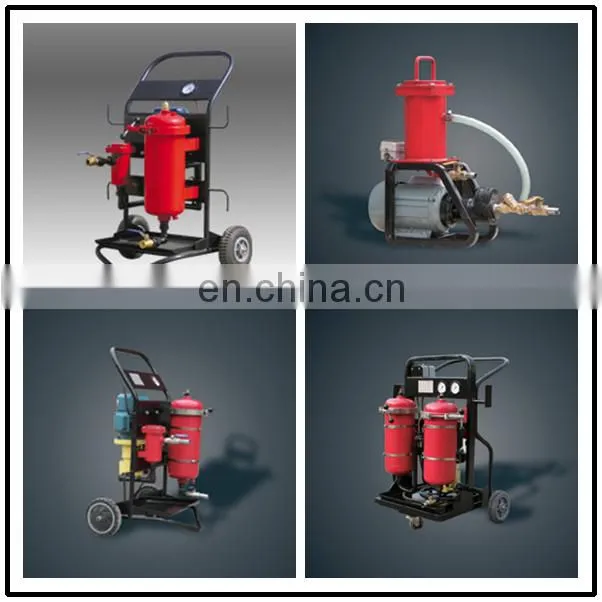

Portable Filter Carts
Explosion-proof Box-Type Movable Oil purifier
High-Precision Filter Carts
Coalescence Dehydration Oil Filter Carts
High-Viscosity Filter unit
High-Solids Content Filter oil vehicle
Filtering Equipment
High Quality vacuum transformer oil purication machine
Double-stage Vacuum Transformer Oil Purifier, oil filtration machine, Oil Purification Plant
Efficient Vacuum Oil Filter Carts
Two-Stage Vacuum Transformer oil purifier
recycling steam turbine oil purifier
vacuum turbine oil purifier
Well-structured and Multipurpose Desulfurization Oil Purifier Vacuum Oil Purifier Type
