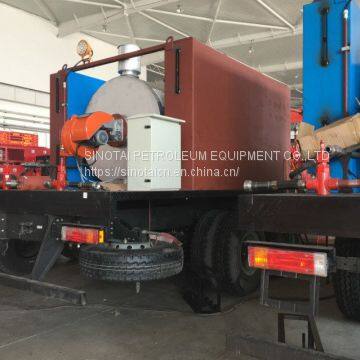

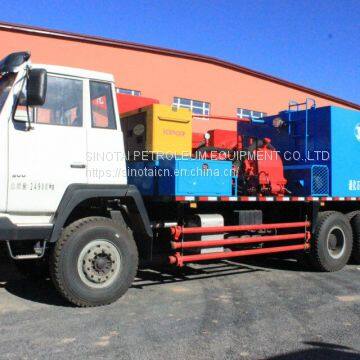

Hot Oiler
The hot oiler is a revolutionary design to combine well flushing and well dewaxing into one system. The truck can perform well flushing, sand washing and dewaxing under a broad range from room temperature to that of the water steam. The unit can also be applied for pressure testing and dredging manifold pipes on the ground. It consists of a chassis, a triplex plunger pump, a water pump and a horizontal boiler. Integrated with several leading techniques and patents, the Well Flushing & Dewaxing Unit is a typical multi-function oil field service equipment.
Steam Temperature |
280o C |
Horizontal Triplex Plunger Pump |
||
Steam Pressure |
6MPa (860psi) |
Model |
3ZB35/130 |
|
Flushing Pressure |
35MPa (5,000psi) |
Plunger Dia. |
100mm (3.9'') |
|
|
Overall Dimensions (l×b×h) |
10.35×2.5×3.25m (34×8.2×10.7ft) |
Stroke Length |
160mm (6.3”) |
|
Weight |
24,000kg (52,910 lb ) |
Generator Set |
||
Chassis (Truck) |
Model |
KDE19STA3 |
||
Model |
STEYR |
Power |
15kW (20hp) |
|
Drive Type |
6×4 |
Electric Current |
23.5/26.4A |
|
Engine |
Weichai WP10.270 |
Burner |
||
Engine Power |
199kW (270hp)/2200r/min |
Model |
TBL 130P |
|
Power |
1.5kW (2hp) |
|||
