4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40

Tianjin Freya Automation Technology Co., Ltd
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 thumbnail-1
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 thumbnail-2
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 thumbnail-3
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 thumbnail-4
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 thumbnail-5
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 photo-1
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 photo-2
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 photo-3
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 photo-4
4-20ma Electric Actuatorwith Butterfly Valve Dl-05 Dl-10 Dl-20 Dl-40 photo-5
US$ 310 - 740 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
dl-05 dl-10 dl-20 dl-40
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number dl-05 dl-10 dl-20 dl-40

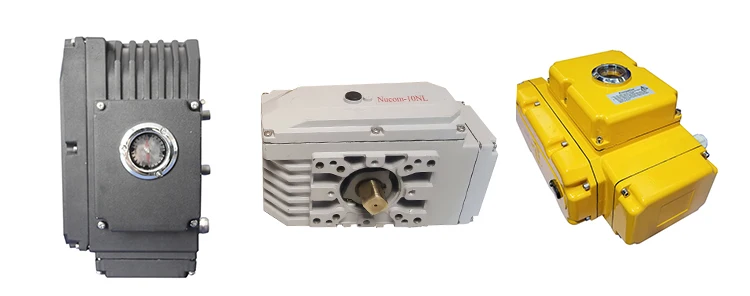

Motorized Mini Rotary Valveon-off.jpg


Product Overview of Motorized Mini Rotary Valve

4-20 mA On-off Type 90 Degree Angle Electric Automation Device Mini Motorized Actuator Nucom-05 are the crystallization of modern technology. Its unique design, advanced technology, high-quality components, scientific and rigorous quality testing have created the myth of the valve actuator industry. At the same time, it also brings valve control into the era of precision, digitization and intelligence. 4-20 mA On-off Type 90 Degree Angle Electric Automation Device Mini Motorized Actuator Nucom-05 is understandable to be a rising star in the automation control industry.Compared with similar products, 4-20 mA On-off Type 90 Degree Angle Electric Automation Device Mini Motorized Actuator Nucom-05 have excellent performance and indisputable advantages. Its appearance is exquisite and compact, beautiful and elegant. The interior design is unique and the internal configuration is tough and wear resistant.
Performance Parameter Table of 4-20 mA On-off Type 90 Degree Angle Electric Automation Device Mini Motorized Actuator Nucom-05

Performance

Model

05 Type

10 Type

16 Type

25 Type

50 Type

100 Type

200 Type

Power

AC220V 50/60Hz, if (AC24V, AC110V, AC380V, DC24V, DC220V) and other voltages are required, please specify when ordering.

Torque

50NM

100NM

160NM

250NM

500NM

1000NM

2000NM

Time(s)

15, 30

15/30/60

15/30/60

15/30/60

15/30/60

60

60, 100

Electric machine

15W

23W

23W

50W

90W

100W

100W

Working current

0.25A

0.6A

0.7A

0.8A

1.2A

1.3A

1.3A

Weight

2.5KG

3.7KG

3.7KG

6.8KG

8.0KG

12KG

12KG

Rotation angle

0°~90°

Ambient temperature

-30℃~+60℃

Pressure-withstanding valve

1500AC/1minute

Level of protection

IP67

Position-limiting

Electrical machinery

Manually operating

With handle

Installation angle

Any angle

Notes: Time: It means the time needed in operating stroke from 0° to 90° ; Rotating angle: means the adjustable range of stroke.

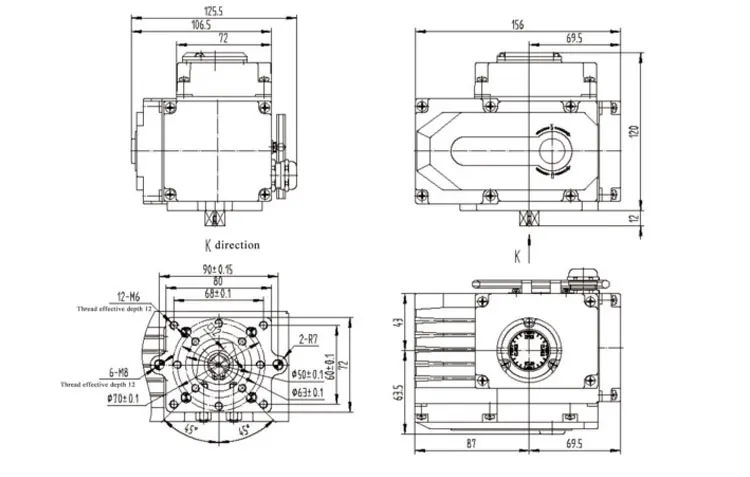

Appearance Dimension of 4-20 mA On-off Type 90 Degree Angle Electric Automation Device Mini Motorized Actuator Nucom-05





Packaging & Shipping

Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Documents:

1. Certificate of Origin: CO, FORM A, FORM E, FORM F, FORM X ISSUED BY CCPIT / Chamber of Commerce.

2. COMMERCIAL  INVOICE

3. PACKING LIST

3. QUALITY CERTIFICATE

Our Services

 Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation
