Small Volume Butterfly Valve Controls Electric Actuator bwq-05 bwq-10 bwq-15 bwq-20
- TIANJIN XINGNAG PORT
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
Small Electric Valve Actuator With Angular Travel bwq-25 bwq-40 bwq-50 bwq-60
-
electric rotary actuator with 90 dgree bwq-100 bwq-200
-
temperature control quarter turn actuator ags-05 ags-05a ags-05f ags-05p ags-05r
-
electric actuators 220v AC ags-100 ags-100a ags-100f ags-100p ags-100r
-
electric actuator controller with butterfly valve ags-10 ags-10a ags-10f ags-10p ags-10r
-
Electric proportional valve actuator 220V ags-15 ags-15a ags-15f ags-15p ags-15r
Product Details
| Brand Name | Freya | Place of Origin | China | |
| Model Number | bwq-05 bwq-10 bwq-15 bwq-20 |
Product Description
description

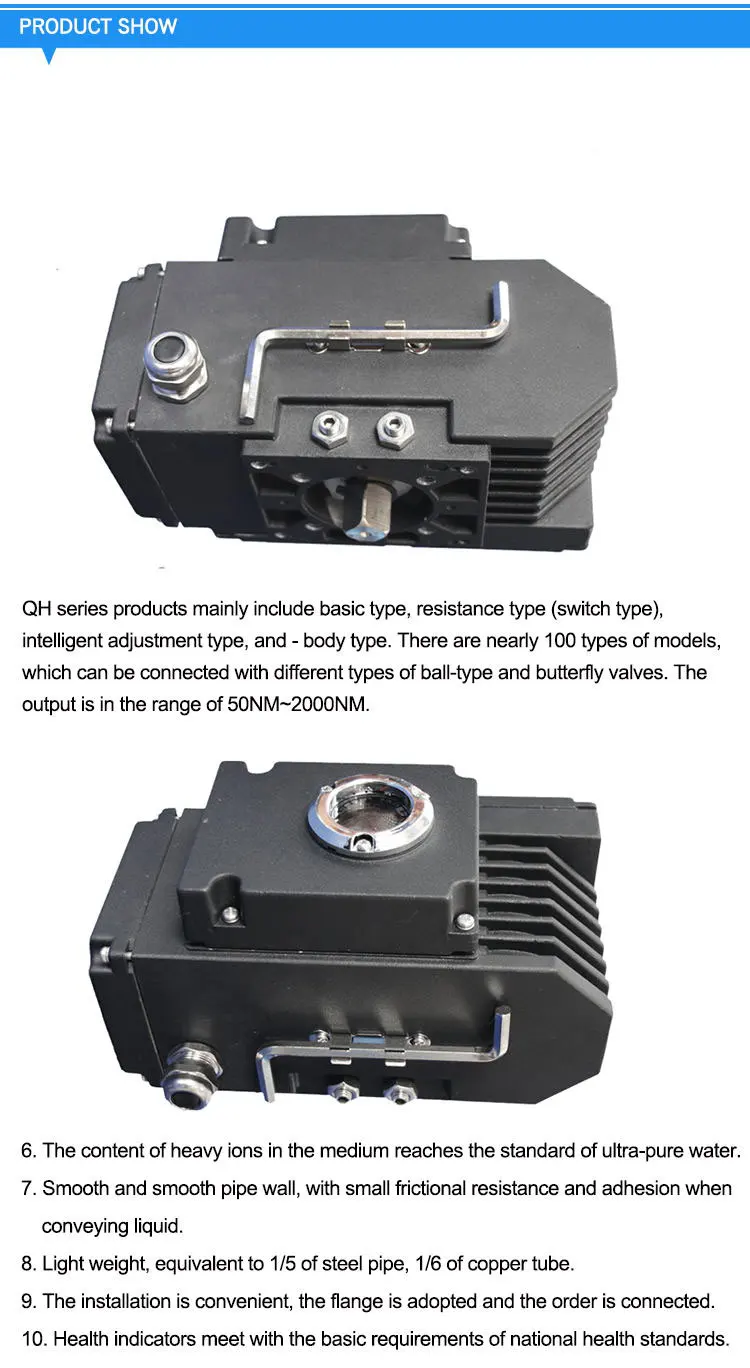

The series BWQ is used to control 0-90 rotary valves and other similar products, such as butterfly valve, ball valve, throttle, plug valves, valve, etc. Venetian blinds it with AC415V, 380 v, 240 v, 220 v, 110 v, DC24V driver for ac power supply, with 4-20 ma current signal, or 0 to 10 VDC voltage signal to control signal, can make the valve movement to the required position, automation control, maximum output torque of 6000 nm.It can be widely used in petroleum, chemical industry, electric power, metallurgy, paper making, water treatment, shipping, food processing, building automation fields.At the same time, it has many advantages such as small volume, light weight, beautiful appearance, unique structure, compact, quick opening and closing, easy installation, small operating torque, easy operation, digital display valve position without maintenance and safe and convenient use.
Function Type | 05 | 10 | 16 | 25 | 50 | 100 | 200 |
Power supply | AC220V, 50/60Hz, (AC24V,AC110V,AC380V,DC24V, DC220V) | ||||||
Torque(Nm) | 50 | 100 | 160 | 250 | 500 | 1000 | 2000 |
Time(s) | 15/30 | 15/30/60 | 60 | 60/100 | |||
Motor(w) | 15 | 23 | 23 | 50 | 90 | 100 | 100 |
Working current(A) | 0.25 | 0.6 | 0.7 | 0.8 | 1.2 | 1.3 | 1.3 |
Weight(kg) | 2.5 | 3.7 | 3.7 | 6.8 | 8 | 12 | 12 |
Rotate angle | 0~90° | ||||||
Surrounding environment | -30~+60℃ | ||||||
Pressure value | 1500AC/min | ||||||
Protection degree | IP67 | ||||||
Limit | Electrical machinery | ||||||
manual manipulation | With handle wheel | ||||||
Installation angle | Any angle | ||||||
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Documents:
1. Certificate of Origin: CO, FORM A, FORM E, FORM F, FORM X ISSUED BY CCPIT / Chamber of Commerce.
2. COMMERCIAL INVOICE
3. PACKING LIST
3. QUALITY CERTIFICATE
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation
