Product Description

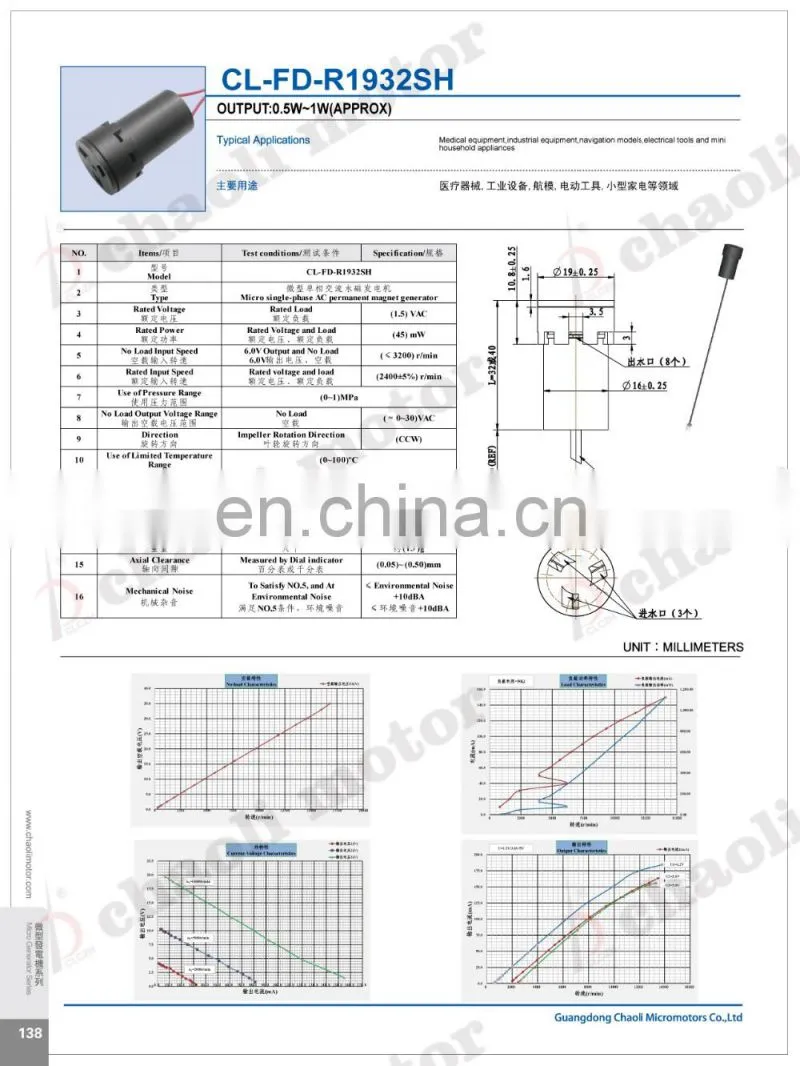

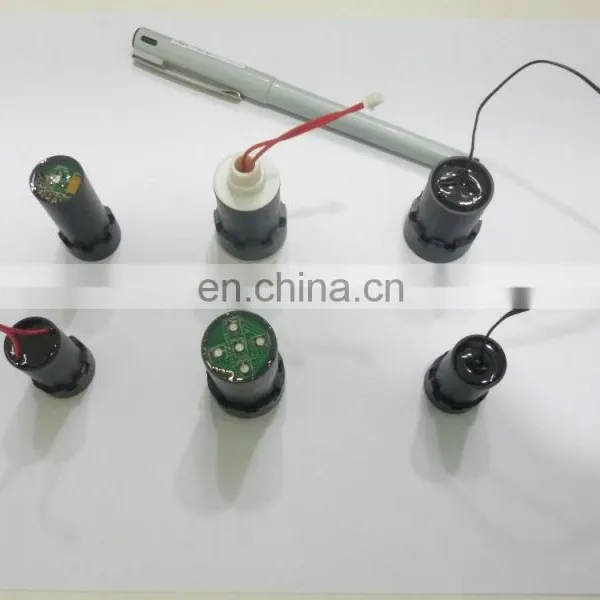

1.Water generate motor CL-FD-R1932SH

Special features/structure:
Generator type: micro single-phase AC permanent magnet generator
Generator housing (D*F*L): Φ19*32-40mm
Housing material: PBT
Shaft (diameter): 1.5mm SUS130M (nickel coating)
Way of commutation: no commutator rectifier
Structure: seal type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 15g (approximate)

Options:
LED, PCBA, temperature control
Magnet type
Wire diameter and turn number
Key parameters/ performance
Rated voltage (rated load): 1.5V AC
Rated power (rated load): 45mW
Rated input speed (rated voltage and load): (2400±5%) r/min
Use of pressure range: (0-1)MPa
No load output voltage range: (≈0-30)VAC
Use of limited temperature range: (0-100)ºC
Axial clearance: (0.05)- (0.50)mm
Mechanical noise: ≤environmental-friendly +10dBA
Operating position: Freedom

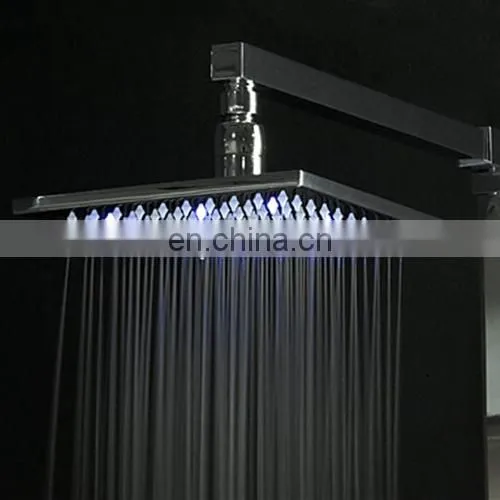

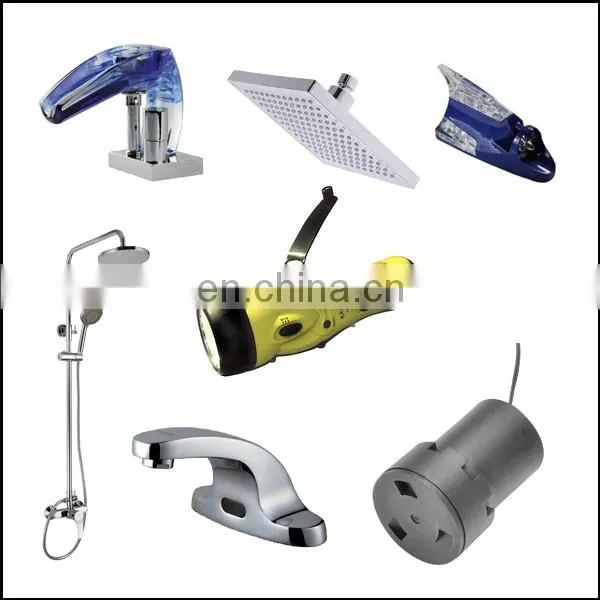

This product is widely used in: LED luminous faucet, self-generating LED shower, top spray, LED flashlight, auto wind lamp, garden pool lamp, small windmill pen; manual folding (DIY) products, educational products, novelty toys, household appliances, and more.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages

.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service

Please send us inquiries table including specifications for the performance and structure requirements .

Company information

Company Profile

Beautiful Environment,Harmonious surrounding, welcome to visit our company.

Outside view of our company

Our production line

Our office

Our showroom

Our qualification and honor

1) Chaoli motor co.,ltd. was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.
3) Our company possesses over 20 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.

5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.ok.
