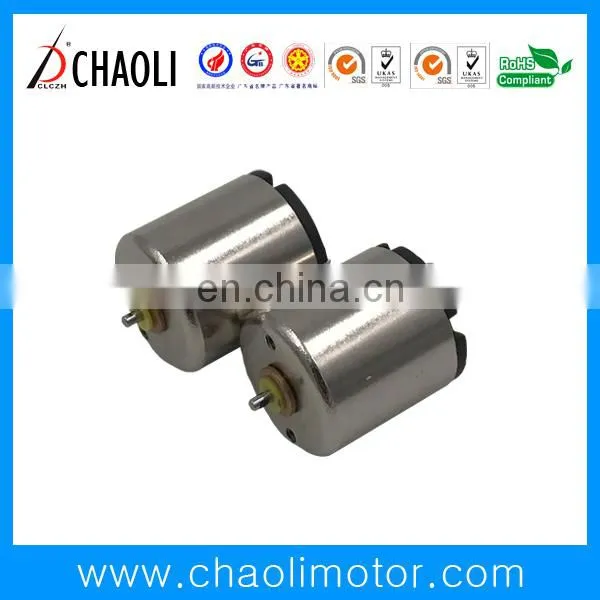

Help Center7.4V Servo Motor CL-1213 Small Coreless Motor With High Torque and Speed for Camera,robot,door Lock and Toys-chaoli2017
Related Products
-
RX-0615 Motor CL-0615 Blade Nano QX / Blade Inductrix "Tiny Whoop" Fast Upgraded Motors Apex RC Products-chaoli2017US$ 0.95 - 1.35MOQ: 2000 Units -
Micro Coreless Motor With Chaoli CL 820 (CL8520) 8.5x20mm for 90mm-150mm DIY Micro FPV RC Quadcopter Frame-Hot Sale 2016US$ 1 - 1.3MOQ: 1000 Pieces
-
5.0V 7mm Vibration Coreless Motor CL-0716-V With Long Life and 14000rpmfor Electric Toothbrush and Vibrating Massager-chaoli2016US$ 0.95 - 1MOQ: 2000 Units
-
6mm 3.7V Sex Motor CL-0612-V With Tungsten Alloy Eccentric Wheel and Strong Vibration for Electronic Sex Product-chaoli2016US$ 0.8 - 0.9MOQ: 2000 Units
-
4mm Mini Small Coreless Motor CL-0408-V With High Vibrator and Torque for Mobile Phone and Intelligent Vibrator-chaoli2016US$ 0.95 - 1.35MOQ: 2000 Units
1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
Special features/structure:
Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ12*13mm
Housing material: SECD-O
Shaft (diameter): 1.0mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 5.25g (approximate)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Micro JST-1.25 plug
Wire diameter and turn number
Key parameters/performance
Rated voltage: 7.4V DC
At no load:
Speed: 18500rpm
Current: 45mA
At stall:
Current: 1.11A (maximum)
Torque: 39.81gf.cm
This product is widely used in:

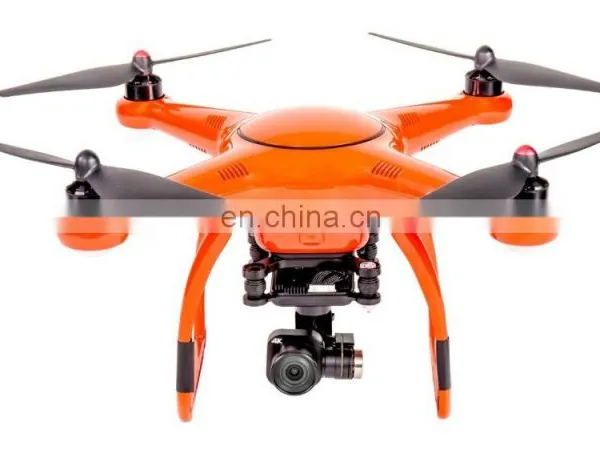

Four axis aircraft, six axis aircraft, Intelligent Toys, RC boat, robot, household appliance, massager, electric eyebow shaver, eye care massager, servo,carmera
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
1.Our company
Beautifulironment,Harmonious surrWelcome to visit our company.
.Outside view of our factory
. Our production line
.Our offices
.Our staffs
.Our showroom
2. R&D/QA/production/Trading
Market-oriented,Technology focus,Strict Quality Control.
. Our technology
. Our Quality assurance
. Our production
. During the exhibition
3. Qualification and Honor
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2013.
3) Our company possesses over 30 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
