General information:

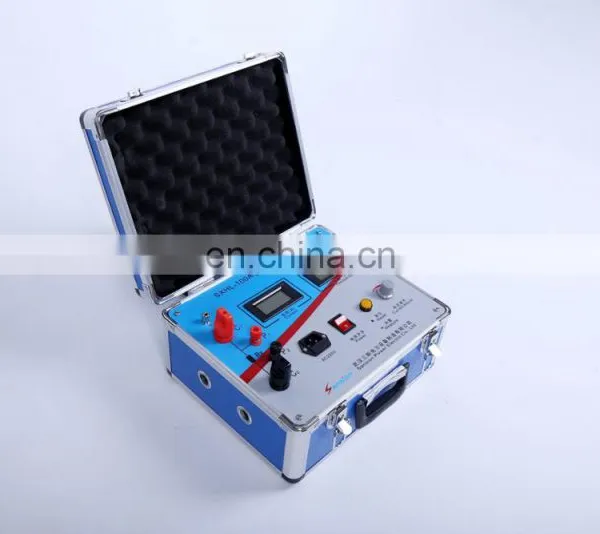

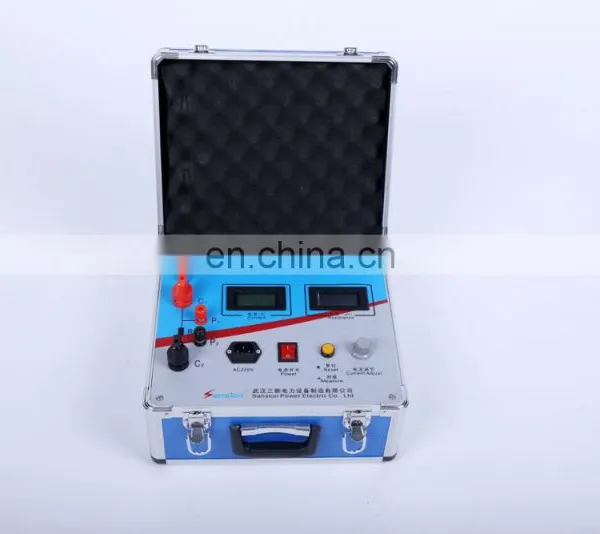

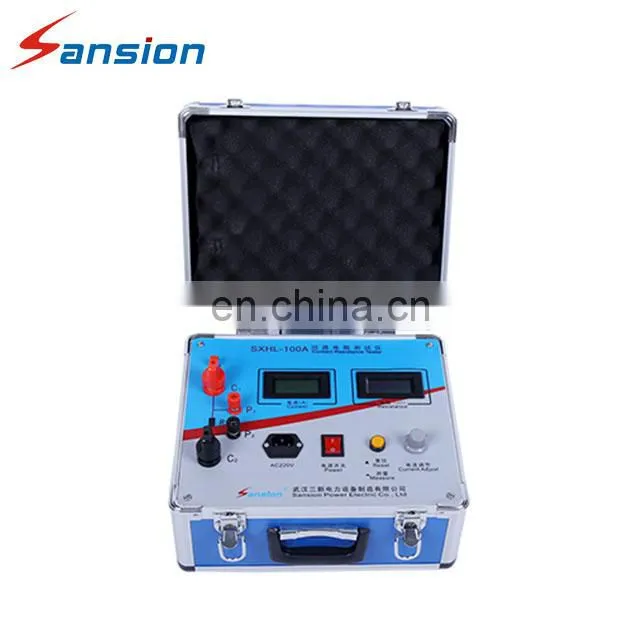

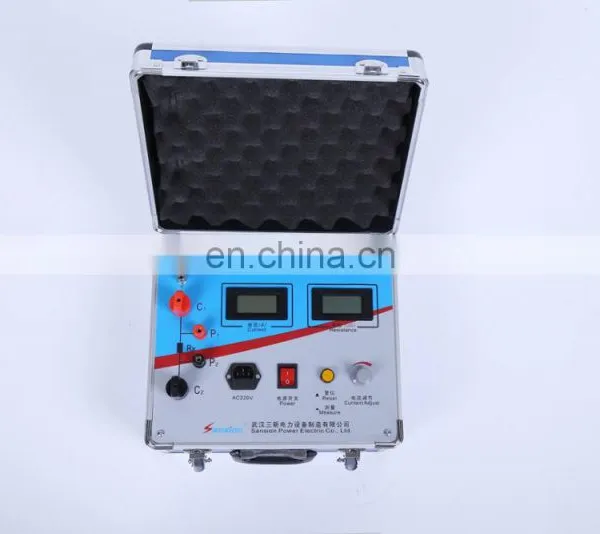

SXHL is suitable for measurement on contact resistance, loop resistance of switchgear, power cable and weld joint. It's also known as Micro-ohmmeter.
The current range and positions, with build-in printer or without are all customizable.
Features:
√ Measuring time is settable.
√ Auto identify if large current lead was bad connected.
√ Four leads measurement method, high Accuracy.
√ Adjustable testing current and low ripple.
√ LCD screens to display Current and Resistance
√ USB interface.
√ Over-current and Over-heat protection.
√ Easy to operate.
√ Portable, high precision.
Specifications:
| Measure range: | 0-14999.9μΩ |
| Resolution: | 0.01μΩ |
| Test current: | 50A-100A-150A-200A is convertible. (current is at your customized) |
| Accuracy: | 0.5%±5digit |
| Screen: | LCD English interface |
| Max. output voltage: | DC 5V/10V |
| Standard output current: | DC 50A-100A-150A-200A |
| Duty: | Continuous |
| Input voltage: | 220V AC ±10% 50Hz±5Hz |
| Measuring time setting range: | 15-60S |
Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.
Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.
Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.
With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
