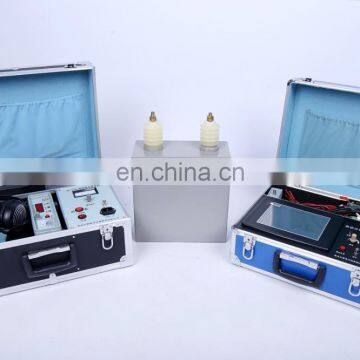

Portable Large LCD Screen High Voltage Cable Fault Locator

General information:

The system includes five parts. They are, respectively,HV bridge locator, SXTDR-200 cable fault locator, SX-30/4 cable fault location power, SXDL-1B pin-pointing instrument, and SX-60kV/500mA cable fault burning power. Each part can be separately used.

Features:

This system includes TDR method and Murry bridge method. With this system, we can locate almost all types of cable faults effectively and conveniently. SXDL-400A can be used to pre-locate high resistance based on Murry method conveniently. SXDL-TDR-200 can be used to pre-locate broken and high resistance fault based on TDR method. SXDL-30/4 and HDL-1B can be used to pin-point the fault. ZGH-60kV/500mA can be used to burn down any kind of high resistance in short time.

Specifications:

    SXDL--400A HV bridge locator

• Output maximum voltage:  5kV and 15kV (alternative)
• Location error   :  ±(0.2%·L+1) m
• Weight  :  10kg
• Work power:    50Hz AC 220V±15%

SXDL-TDR-200 Cable fault locator

• Low voltage pulse output voltage: 60V
• Pulse width: 40ns 100ns 200ns 500ns 1µs 2µs 5µs 10µs (options)
• Fault location error: ±0.4m (V=160m/µs)
• Maximum length measurement for cable: 50km (V=160m/µs)
• Operating power: Input 200~240V (50/60Hz), DC9V output

SXDL-TDR-200 Cable fault locator

• Low voltage pulse output voltage: 60V
• Pulse width: 40ns 100ns 200ns 500ns 1µs 2µs 5µs 10µs (options)
• Fault location error: ±0.4m (V=160m/µs)
• Maximum length measurement for cable: 50km (V=160m/µs)
• Operating power: Input 200~240V (50/60Hz), DC9V output

SXDL--30/4 cable fault location power

• Output voltage range: 0~15kV continuous and being adjusted
• Impact energy :  1800J
• Pulse capacity:  4uF
• Work power:   50Hz AC 220V±15%

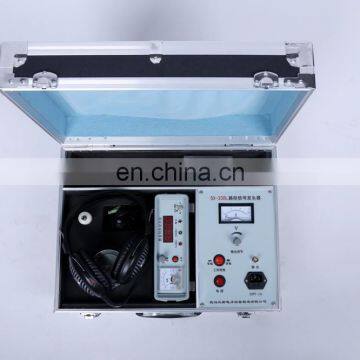

SXDL--1B pin-pointing instrument

• Pin-point error with sound wave and electromagnetic method: 10% depth of the cable.
• Location error of path: 10% depth of cable.
• Operating power: 7.2V/4.4Ah Lithium battery operated, when full can work continuously for 10hours.
• Weight: 1kg
• Dimension: 21cm×9.6cm×10cm

SXDL--60kV/500mA cable fault burning power

• Voltage output:   0~60kV
• Current output:   0~500mA
• Maximal burning power: 1000W

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
