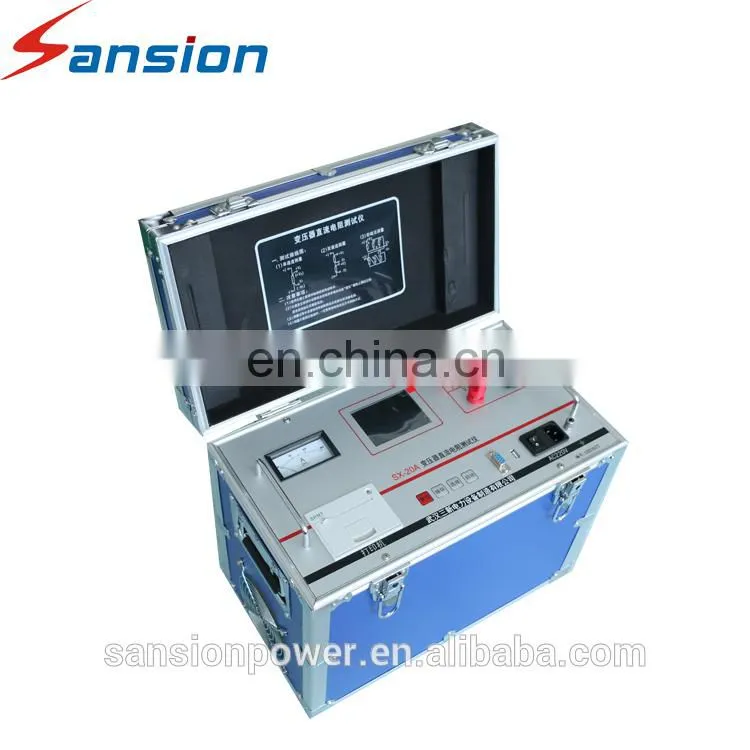

10A High-power Inductive Winding DC Resistance Transformer Tester
- 100 Piece / Pieces per Month
- Shenzhen Shanghai. Guangdong
- T/T Credit Card
- High Precision Transformer Winding Resistance Tester 3A/5A DC Resistance Test
- DC Power Transformer Winding Resistance Tester 10A DC Resistance Power Analyzer
- Automatic 12kv Capacitance & Dissipation Factor Test Set
- Automatic 12kV Capacitance & Dissipation Factor Test Set for power plants or substations
- 12kV Capacitance & Dissipation Factor Test Set for Distribution Transformer
- 12kV Capacitance & Dissipation Factor Test Set for Bushings
Product Details
Brand Name: | Sansion | Place of Origin: | Hubei, China | Model Number: | SXZR |
Weight: | 18kg | Operating Temperature: | advisory | Supply Voltage: | advisory |
Dimensions: | 2 | Display Type: | Analog and Digital | Accuracy Class: | A |
Measuring Range: | ±0.2%(±2digits) |
Product Description
General Information:
SXZR-20A is single phase DC winding resistance tester which designed specifically to measure DC resistance values of transformer windings and any DC resistance of an inductive device.
Features:
- Controlled by high speed SCM, easy to use.
- Selectable current positions, large measurement range, suitable for the DC resistance values measuring of large-medium transformers.
- Full protection functions to ensure safety and availability.
- Auto discharging and discharging indicator.
- Intelligent power management technology, small consumption, less heating.
- True color LCD screen.
- Built-in thermal printer.
- 1000 groups’ data storage no lost even power failure.
- RS232 and USB interface, easy communicate with PC and U disk.
Specifications:
- Output current: <5mA, 40mA, 200mA, 1A, 5A, 10A, 20A
- Max.resolution: 0.1μΩ
- Measuring range: 100μΩ~1Ω (20A)
500μΩ~2Ω (10A)
1mΩ ~ 4Ω (5A)
2mΩ ~ 8Ω (2.5A)
