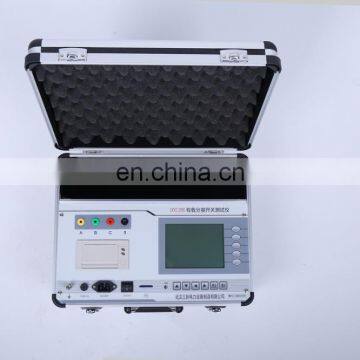

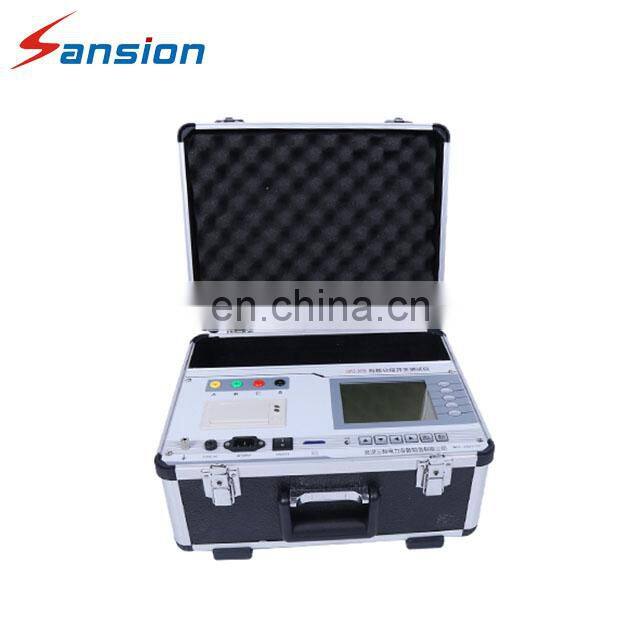

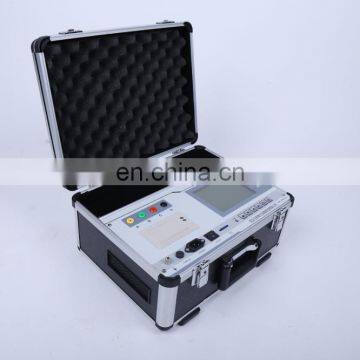

Transformer OLTC Tester On-Load Tap-Changer Test Equipment

General Information:

SXYZ-2800 On-Load Tap-Changer Analyzer is designed to measure and analyze the electrical performance of on load tap changer of power transformers and special transformers. Mainly applied to test transient time, transition waveform, transition resistance, synchronization status of three phase.

Features:

• High precision
• Light beam oscillograph function. SXYZ-2008 can simultaneous record A,B,C three phase, can auto catch and display transition resistance during transiting and the process of time changing.
• To realize all the performance measurement on load tap changer. For example: switch selecting, break point, transit waveform, transit time, three phase synchronism and etc.
• Comprehensive measured result analyzing: can analyze the resistance value of every point and every segment of waveform, every period of time and three phase synchronism and etc.
• LCD screen, friendly English interface.
• SD/SDMMC storage card: 0.5~8 G. Test data SD no limitation storage. And data in SD can be converted via SD-USB to upload to PC U disk.
• Build-in thermal print.
• Anti interference, wide working supply source range.
• Compact designation, suitable for wild filed testing.

Specification:

• 3 channels independent power supply, output current ≥1A
• Analyzer sampling rate: 10~20KHZ
• Single waveform max. storing time: 6.4 seconds ( accurate to millisecond)
• Transition resistance measuring range: 0.1-40
• Measuring precision:0.1~1  RΔ≤0.1Ω;  1Ω~40Ω((exclude 1Ω) ) RΔ≤±5%,   TΔ≤±1%
• Screen:320*240
• Processor: 8 digits microprocessor, support SD card, no waveform storage limitation
• High speed 12 digits A/D converter, max. sampling rate can reach to 500KHZ.
• Power supply:  220V 10%
•  Power: 200W
• Size:  420mm×350mm ×220mm
• Weight:  ≤15kg

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.

FAQ:

1.Q:Are you Manufacturer of trading company?

A: We are manufacturer of more than 20 years in power testing product.

2..Q:How can I pay?

A:Dear customer, we accept many payment term, such as T/T, Western Union…

3.Q:What is your terms of delivery?

A:We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most  convenient and cost effective for you.

4.Q:Could you please tell me the Warranty Period of your product? .

A:Warranty period is one year. Engineers available to service the equipment.

5.Q:What should I do if I do not know how to use? A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
