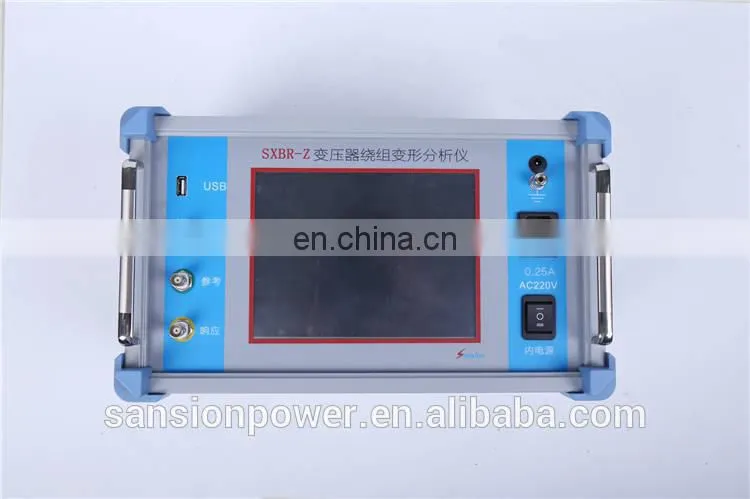

Winding Deformation Test Device Transformer Sweep Frequency

Winding Deformation Test Device Transformer Sweep Frequency thumbnail-1
Winding Deformation Test Device Transformer Sweep Frequency thumbnail-2
Winding Deformation Test Device Transformer Sweep Frequency thumbnail-3
Winding Deformation Test Device Transformer Sweep Frequency photo-1

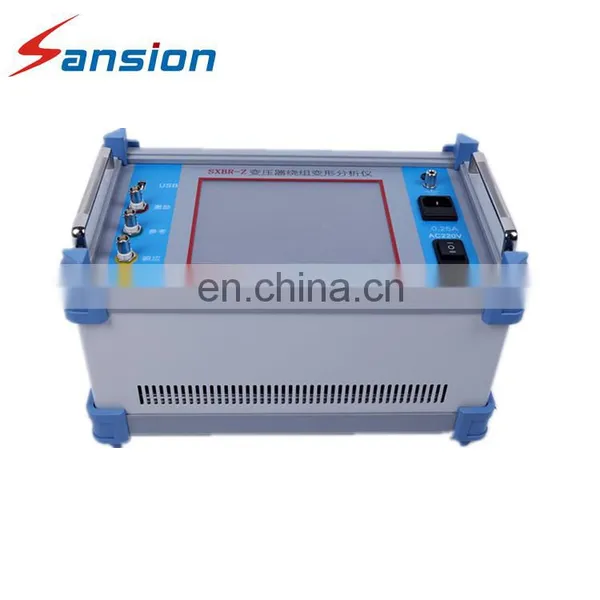

Winding Deformation Test Device Transformer Sweep Frequency photo-2

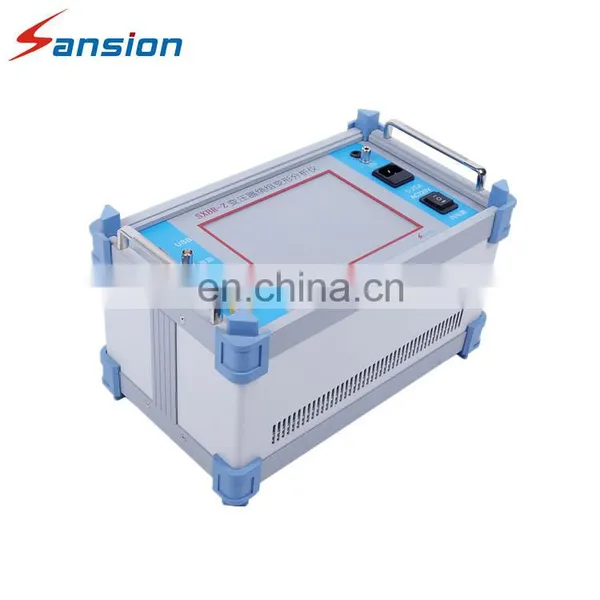

Winding Deformation Test Device Transformer Sweep Frequency photo-3
US$ 1,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sansion
Place of Origin:
Hubei, China
Model Number:
SXBR-Z
Contact Supplier Request Quote Chat Now
Wuhan Sansion Power Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai. Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sansion
Place of Origin Hubei, China
Model Number SXBR-Z
Weight About 5kg
Operating Temperature advisory
Supply Voltage advisory
Dimensions 2
Display Type Analog and Digital
Accuracy Class A
Measuring Range 1

Winding Deformation Test Device Transformer Sweep Frequency

Winding Deformation Test Device Transformer Sweep FrequencyWinding Deformation Test Device Transformer Sweep Frequency

General Information

SXBR-Z Winding Deformation Analyzer is used to detect transformer winding movements and mechanical failures due to mechanical shock, transportation or short circuits. Detection of these displacements ahead of a dielectric failure can reduce unplanned maintenance costs, and provide the possibility to improve system reliability by preventing outages. Additionally, when damage is discovered, repairs may be targeted to a specific phase winding.

Also called: Sweep Frequency Response Analyzer ( FRA Test Set )

Features:

Advanced DDS frequency sweeping technology. Double power supply: AC220V±10%, build-in battery 6V5AH.High speed resolution signal sampling, high amplitude resolution, test accurately.Multi mathematical analysis methods, to provide scientific reference for on-site diagnose.Double channels 16 digits AD sampling.Large color touch screen, light is adjustable.120 groups data storage, uploaded to PC.Strong upper computer software, curve analysis, print and generate to word format.USB communication between PC and control unit.Oversize: 35cm *21cm*21cmWeight: about 5KG

Specifications:

6 modes scan method:

Linear source:

1K-1000KHZ_1.0  source point  1KHZ       1000

1K-1000KHZ_0.5  source point  0.5KHZ       2000

1K-2000KHZ_1.0  source point  1KHZ       2000

1K-2000KHZ_0.5  source point  0.5KHZ       4000

Segmentation source:

100HZ - 1000KHZ  source point  1440

100HZ - 2000KHZ  source point  2440

Measurement range:

(-100dB)-(+20dB)



Measurement precision:

0.1dB



Frequency sweeping precision:

less than 0.01%



Signal input impedance:

1MΩ



Signal output impedance:

50Ω



Same test repetition:

99.5%



Winding Deformation Test Device Transformer Sweep Frequency

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.

Winding Deformation Test Device Transformer Sweep FrequencyWinding Deformation Test Device Transformer Sweep FrequencyWinding Deformation Test Device Transformer Sweep Frequency

OUR ADVANTAGES:

1. QUALITY

As an ISO and SGS certified company.

2. Sales Market

We are exporting to 52 countries worldwide.

3. Technical capacity

We have 26 engineers. 6 engineers are doctor’s degree. Who have 26years working experience . 8 engineers are master’s degree.

4. After-sales Service

Warranty period is one year. Engineers available to service the equipment.
