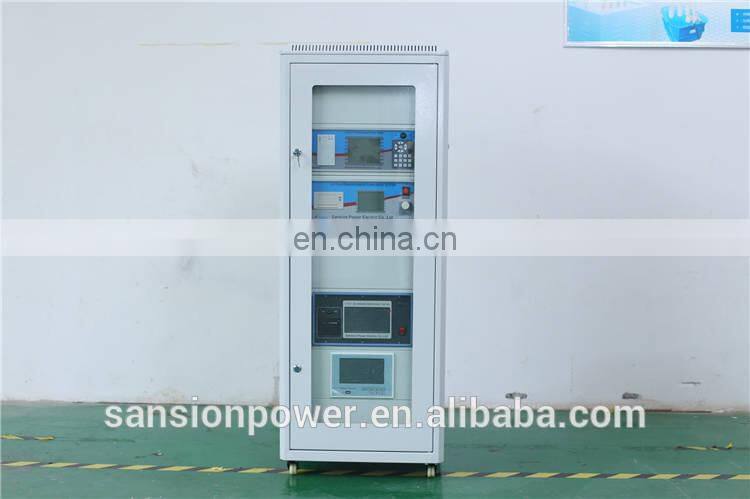

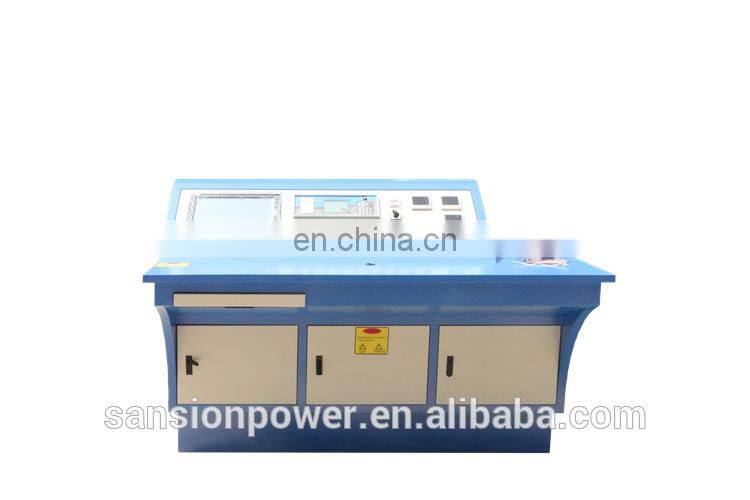

Full-automatic Electric Equipment Power Transformer Integrated Test System

General Information:

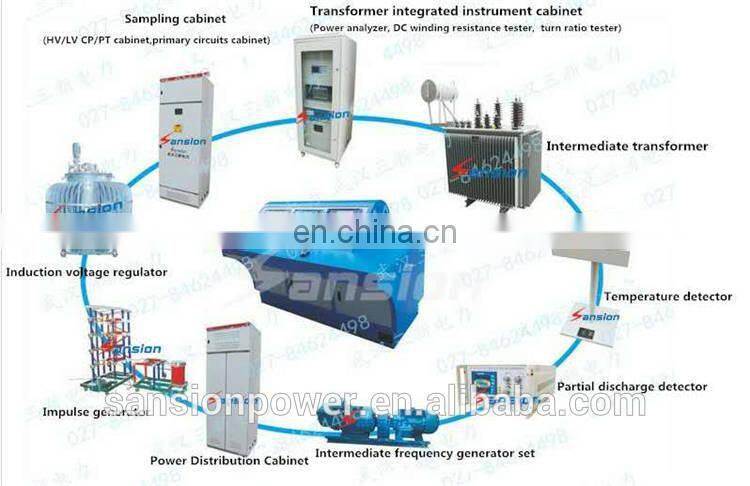

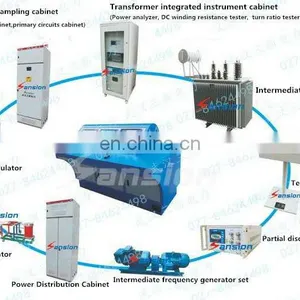

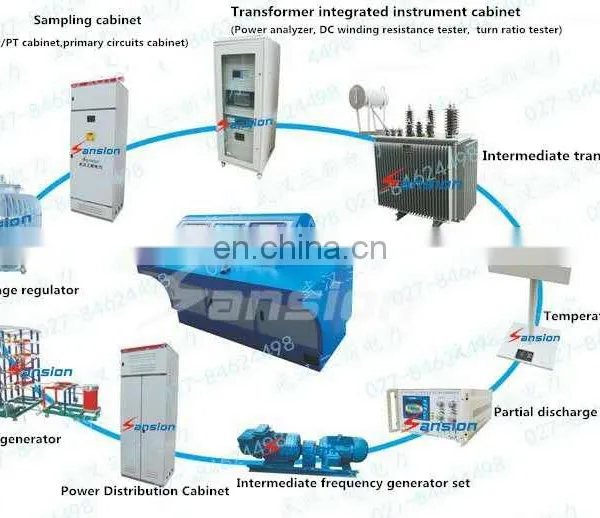

A complete line of Transformer Test Systems, from a small portable unit with a rating of 5kVA to power transformer Testing Systems capable of testing transformers with very high voltage and power ratings can be supplied. The line includes both single and three phase system for both distribution and power transformers. It's widely used in the fields of power supply and distribution, power transformer manufacturer, transformer maintenance center, industry and mining enterprises.

Features:

· Sansion Transformer Test System will perform tests in accordance with IEC 60076 and IEEE C57 serial latest edition standards.

· Applied for different voltage degree transformers, reactors and HV switchgears.

· Fully PLC controlling and measurement, integrated primary wire connection circuit displaying, measuring, control tracing, analysis processing, report storing, printing and protecting into the testing system.

· All the test data calculation was operated by IPC, the test results and measuring data are displayed in screen directly which highly improved the precision and efficiency.

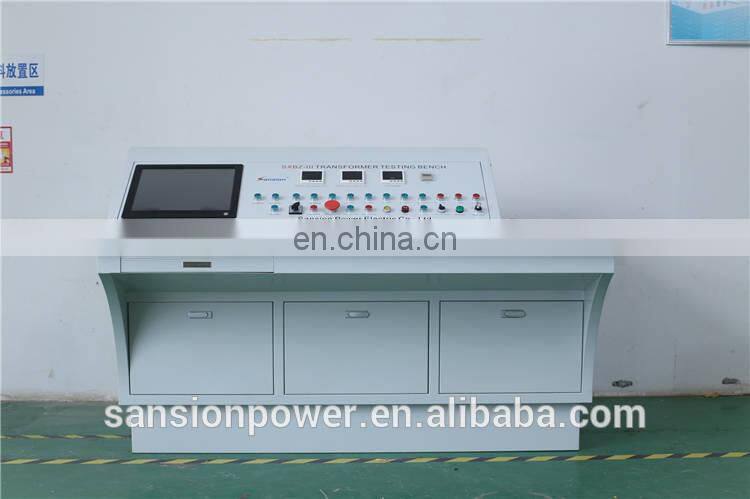

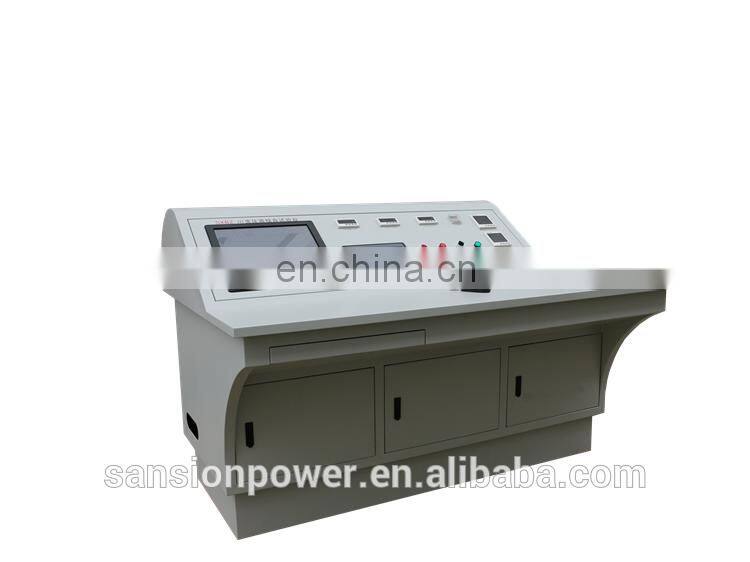

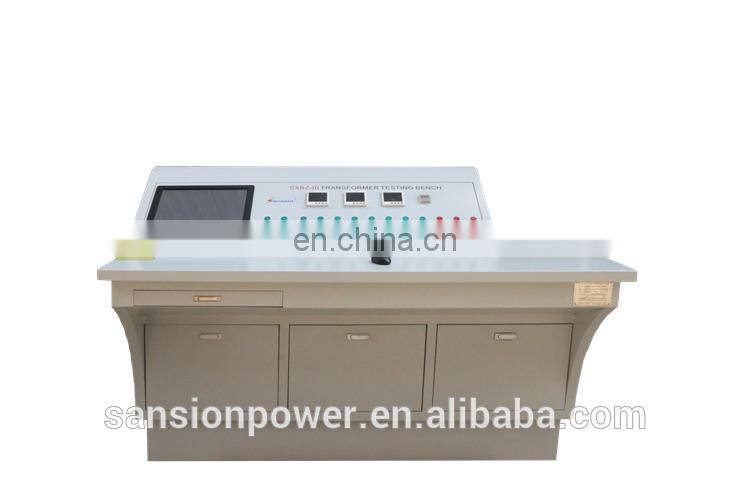

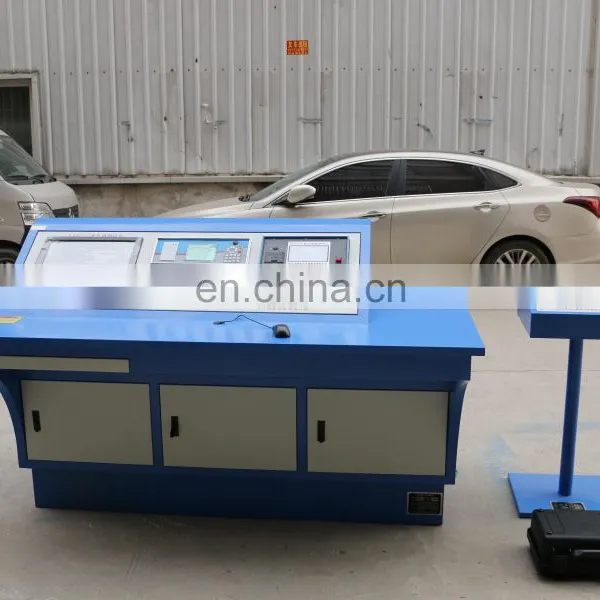

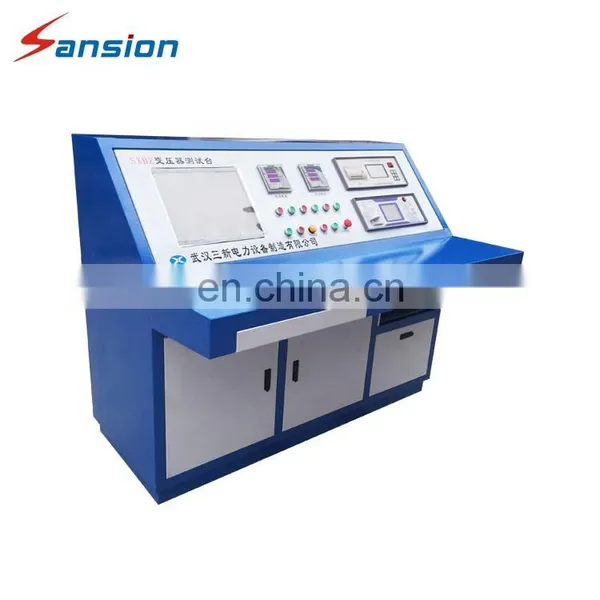

· The test system could be customized to bench type, microcomputer type or any at user's option to be suitable for your test site.

Test Items:
Routine tests:

· Transformer oil testing (including acidity, dewpoint, flashpoint, breakdown, capacitance &tan delta, dissolved gas analysis)

· Transformer insulation resistance testing

· Transformer winding resistance testing

· Transformer turns ratio testing

· Transformer load/no-load current & loss testing

· Transformer capacitance & tan delta testing

· Transformer short circuit impedance & load loss testing

· Transformer power frequency withstand voltage testing

· Transformer inductive withstand voltage testing (including 110kV transformer partial discharge testing)

· Impulse voltage testing (including full wave, chopping wave testing)

 Type tests:

· Temperature rising testing

 Special tests:

· Zero-sequence impedance testing

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.

OUR Advantages:

1. Quality

As an ISO and SGS certified company.

2. Sales Market

We are exporting to 52 countries worldwide.

3. Technical capacity

We have 26 engineers. 6 engineers are doctor’s degree. Who have 26years working experience . 8 engineers are master’s degree.

4. After-sales Service

Warranty period is one year. Engineers available to service the equipment.
