Bottle lid torque meter / Cap torque meter
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | pte | Place of Origin: | Shandong, China | Model Number: | ANL-P |
Usage: | Torsion Tester |
Product Description

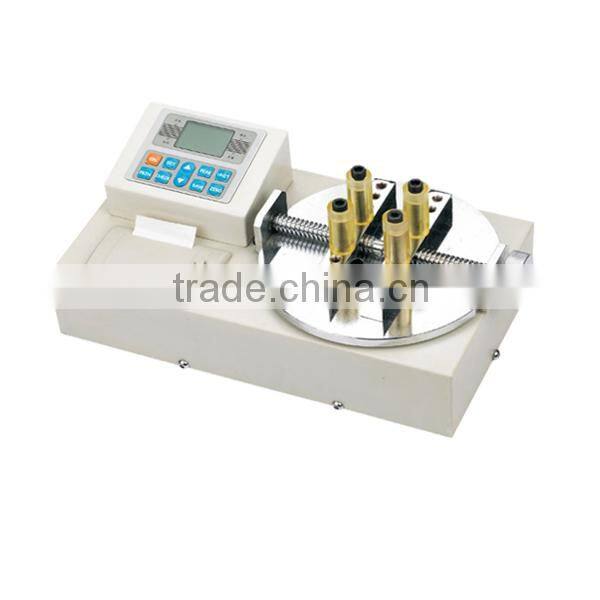

Bottle lid torque meter / Cap torque meter
l Function
Digital bottle lid torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
l Specifications
Type
Index | With printer | ANL-P1 | ANL-P2 | ANL-P3 | ANL-P5 | ANL-P10 | ANL-P20 |
No printer | ANL-WP1 | ANL-WP2 | ANL-WP3 | ANL-WP5 | ANL-WP10 | ANL-WP20 | |
Measuring range / Division value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ 0.0001 | 5.0000/ 0.0001 | 10.000/ 0.001 | 20.000/ 0.001 |
Kg·cm | 10.200/ 0.001 | 20.400/ 0.001 | 30.600/ 0.001 | 51.000/ 0.001 | 102.00/ 0.01 | 204.00/ 0.01 | |
Ib·in | 8.850/ 0.001 | 17.700/ 0.001 | 26.550/ 0.001 | 44.250/ 0.001 | 88.50/ 0.01 | 177.00/ 0.01 | |
Precision | ±0.5% | ||||||
Peak Value Sampling Frequency | 2000HZ | ||||||
Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||||
Charging Time | 4~6 Hours | ||||||
Continuous using time of battery | About 10 Hours | ||||||
Battery life | ≥300 times | ||||||
Size | 400mm×200mm×200mm | ||||||
Net Weight | 12KG | ||||||
Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
l Main features
- High precision, high resolution, quick sampling speed, full-screen display.
- Adopting high precision torque sensor, with torque direction display.
- Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
- Three units can be switched each other (N·m,kgf·cm,Ib·in).
- Real-time, peak, automatic peak three models of optional switch.
- Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
- Peak holding, remove automatically function, remove time to set freely.
