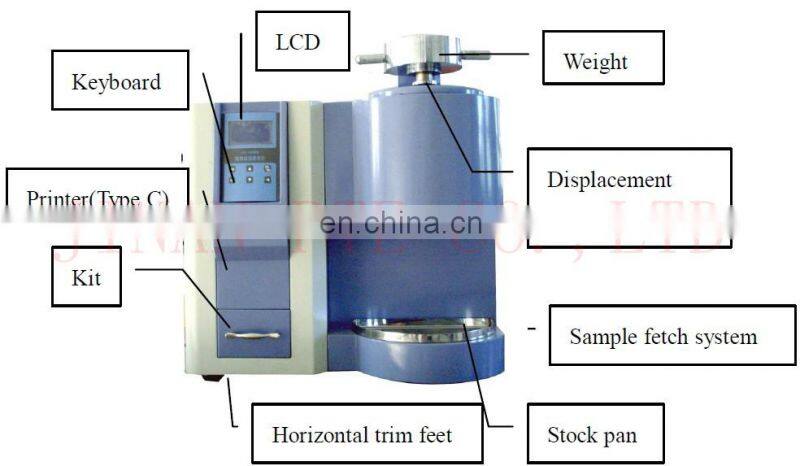

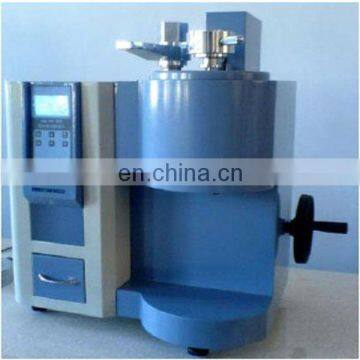

XRL-400 LCD mfi plastic melt flow index tester
Applications:
The XRL-400 Series Material Flow Velocity Machines are used to come the high polymer of hot plastic of token while gluing flow appearance flow the function's machine, the material mass flow velocity use to measure the colophony of hot plastic(MFR) and the material cubage flow velocity use to menstruate the colophony of hot plastic (MVR). the machine be the same with the PC ,the PA, the PF ,the PFSU and project plastic of melt upper temperature, and the testing use to the PE ,the PS ,the PP ,the ABS colophony of melt lower temperature, Broadly applied in the plastics material, plastics produce, the plastics product, petroleum chemical engineering etc. profession with related university, scientific research unit, product examine section.
The XRL-400 Series Material Flow Velocity Machine is according as up-to-the-minute nation standard and international standard design and produce, it synthesized the bureau chief of the domestic and international and every kind of model, and have the construction simple, operation convenience, the easy maintenance maintain. The machine accord with GB3682, ISO1133, ASTMD1238, ASTMD3364, DIN53735, UNI-5640 and JJGB78-94 etc. standard, and produce standard is according as JB/T5456 Technology Condition of the Material Flow Velocity Machine.
Measuring range: 0. 01-600.00 g/10min(MFR)
0. 01-600.00 cm/10min(MVR)
0.001-9.999 g/cm (melt density)
Temperature range: 50-400°C
Temperature precision: ±0.5°C resolution: 0.1°C
Material canister inside diameter 9.55±0.025mm length:160mm
Piston diameter 9.457±0.01mm mass:106g
Mould inside diameter 2.095mm length: 8±0.025mm
Load: full load
Base weight: 0.325Kg.
Weights: 0.875Kg,1.290Kg,1.835Kg,3.475Kg,4.675Kg,5.000Kg,5.000Kg one each (may
freewill combination )
Accuracy: 0.5%
Cleaning accessories: clear material pole
Calibration accessories: water level bubble
Measuring method: MFR MVR/ DENSITY
Supply Power: 220V±10% 50Hz Heat up power: about 550W
Outline size: (length*width*height ) 600*400*500 (unit: mm)
Net weight: 85Kg gross weight: 135Kg
