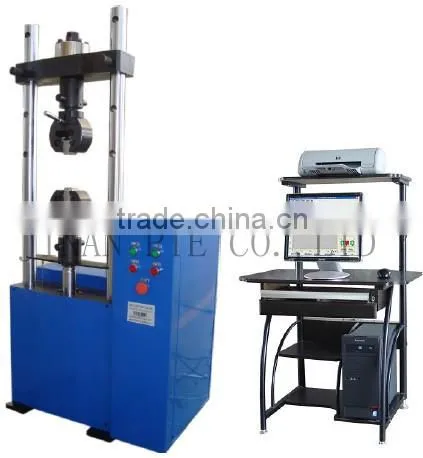

HLC-50 Compact type Computer Control Hydraulic Servo Tensile Test Equipment
Applications:
HLC -50 compact type Hydraulic Servo Universal Tensile Test Equipment is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It can be capable of testing the characters of materials on physical & technology properties. It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. It equips with the computer & Software & printer, it can control the test procedures as the set programs, and can also display, record, process and print the test results and can draw test curves automatically in real time. The machine complies with standards ISO7500-1, ISO6892, ASTM E8, ASTM 370, EN10002, JIS Z2841, etc standards.
Specification:
| NO. | Items | Specifications |
| 1 | Max. test load | 50KN |
| 2 | Test load accuracy | ±1% |
| 3 | Displacement accuracy | ±0.5% |
| 4 | Load measuring mode | High accuracy load cell |
| 5 | Displacement measuring mode | High accuracy photoelectrical encoder |
| 6 | Max. Tensile test space | 350 mm |
| 7 | Max. compression test space | 600mm |
| 8 | Piston Stroke of Oil Cylinder | 0~200 mm |
| 9 | Testing speed | 0.5-100mm/min |
| 10 | Max. Ram return speed | 100mm/min |
| 11 | Grip for round specimen diameter | 4-9mm |
| 12 | Grip for flat specimen thickness | 0-14mm |
| 13 | Upper and lower compression plate | φ200mm |
| 14 | Motor Power for oil pump | 1.1kW |
| 15 | Dimension of unit(mm) | 720×510×1650 |
| 16 | Control mode | Servo Control |

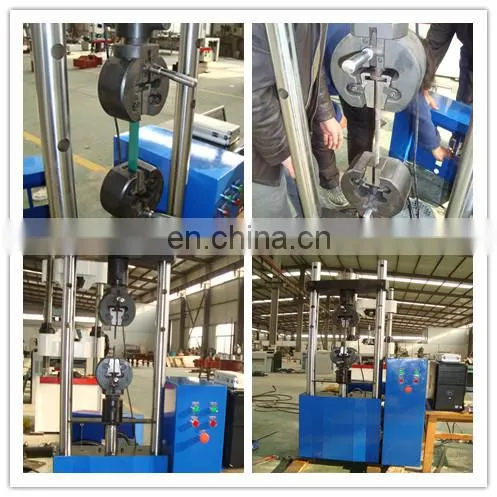

Detailed Pic:
Pre-service---Trade manager 24 Hours online service
Middle Service ---Recommend the suitable model and give competitive price
After serivce---2 years guarantee,Free installation CD/DVD, Remote control technical consult , oversea trainning,Provide newest software vision when update
Certificate:
Sales representative network:
We have exported more than 60 countries all over the world and enjoy a good reputation.

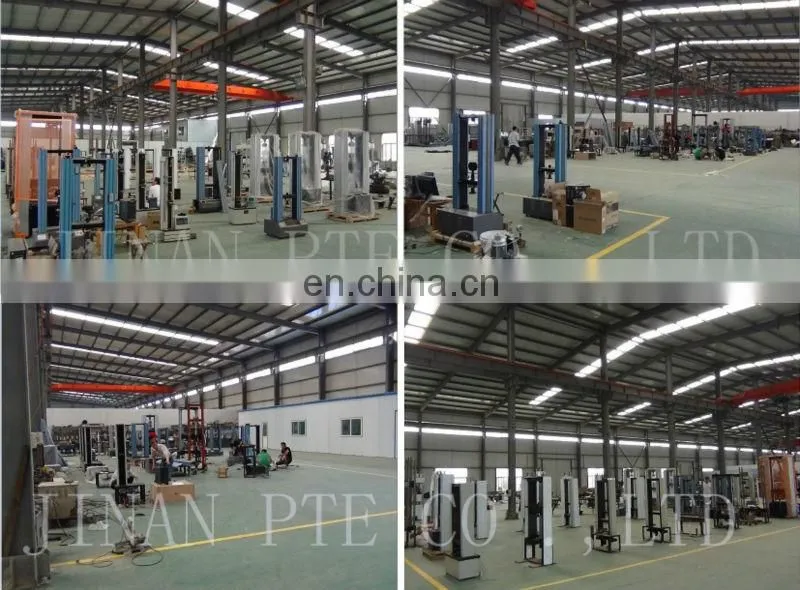

Factory and package:
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
