Help CenterMLW 200Ton Servo Horizontal Cable Tensile Testing Machine
Related Products
-
WDW-50 Universal Tensile Compression Testing MachineUS$ 1,500 - 6,500MOQ: 1 Set -
HSV 500/1000N Universal Compression Tensile Testing MachineUS$ 1,000 - 1,500MOQ: 1 Set
-
HLC-50 Compact Type Computer Control Hydraulic Servo Tensile Test EquipmentUS$ 6,000 - 20,000MOQ: 1 Set
-
AT-180B Belt Tension MeterUS$ 100 - 300MOQ: 1 Set
-
HTD-150 Portable Analog Dial TensiometerUS$ 30 - 130MOQ: 1 Set

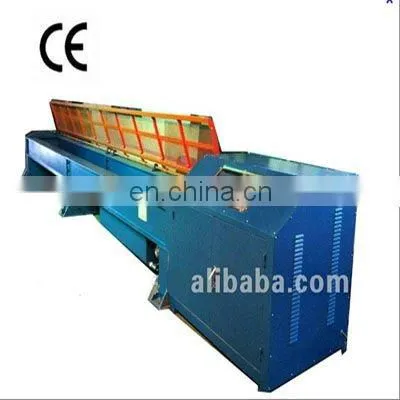

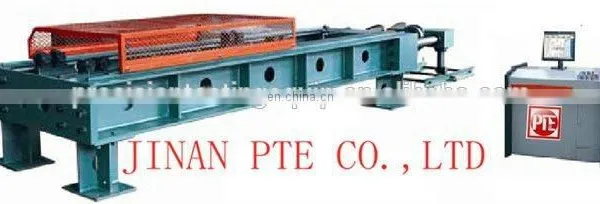

MLW 200Ton Strand wire test Horizontal UTM adopts frame type structure, which tensile space can be adjusted by a moving cart. Full digital controller controls the servo cylinder to add load, load cell measuring the load, photoelectrical encoder to measure the displacement, computer screen displaying the test results.
Functions & Applications:
The testing machine applies the full digital controller, servo valve control system along with the standard analytic software, so it can realize closed loop control to load and displacement, digitally physically setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine possess the function of user’ programming. In addition the machine can be equipped special analytic software and print the report form according to the requirements from customers. The machine also can realize the functions of screen display for test data and test curve, disc storage, database management and keep them on the web net interface. The machine mainly do tensile test to specimen conforming to global standards. It can do tensile test to various kinds of metal materials and actual component, such as chains.
Technical Data:
Max. Test load:
300KN to 8000KN
Test load range: 4%-100% of full scale
Load accuracy: ±1%
Ram stroke: 200-1000mm as customer’s test request
Test tensile space: 1000-20000mm as customer’s test request
Specimen length: 1000-18000mm as customer’s test request
Ram speed without Load: ≥80mm/min

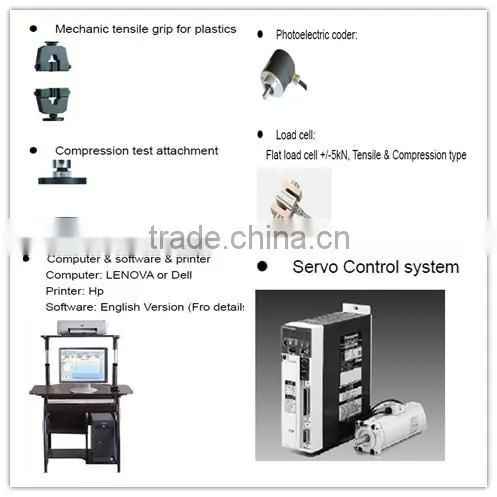

Measuring mode: load cell measuring the load
Displacement measurement: by photoelectrical encoder measuring
Control mode:
10.1 Constant speed ram stroke control
10.2 Constant speed load control
10.3 Constant speed stress control
10.4 Displacement-keeping control
10.5 Load-keeping control
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
OUR COMPANY--
PTE- A Material Testing Machine Manufacturer
About PTE
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
