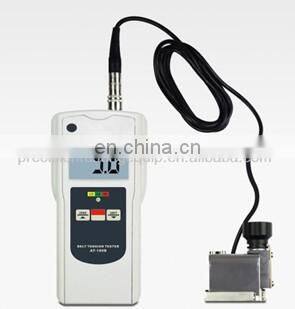

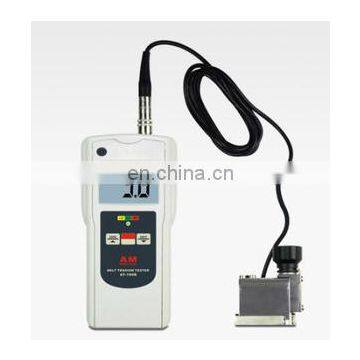

AT-180B Pocket and digital Belt tension meter
Applications:
The Belt Tension Meter Mainly use for automotive belt tension measurement, also can measure and adjust ribbon, filamentous, linear, reticular and other wide objects tension. Applicable to the automotive, textiles, wire and cable, metal wire, plastic film, paper, printing, film industries etc.
Features:
* With metric and imperial conversion.
* Auto switch off and manual shutdown.
* With average value calculation function.
* With low battery alarm indicator & With maximum value stored.
* Provide “Bluetooth data output” choice.
Specifications:
| Measuring Range | 0~750N, 0~120lb, 0~77Kg, 0~114Seems |
| Accuracy | ≤ ±5% |
| Belt State Indication | Low, OK, High |
| Resolution | ± 1N (or other units) |
| Overload Alarm | 750N (Newton) |
| Maximum Load | 850N (Newton) |
| Working Environment | Temperature 0°C ~ 50°C |
| Humidity <85% RH | |
| Size | 135×62×33 mm |
| Power Supply | 4x1.5v AAA (UM-4) battery |
| Host Weight | 130g (Not including Batteries) |
| Probe Weight | 230 g |
Standard Accessories
Main Unit
Test Block
Carrying Case
Operation Manual
Optional Accessories USB data output
