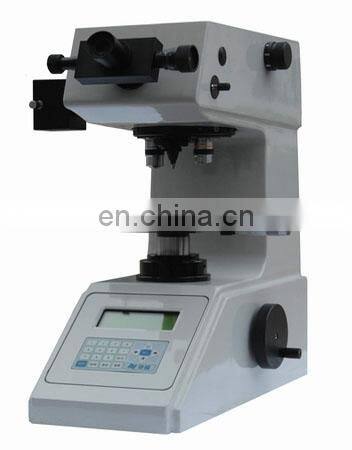

HV-1000B Function Microhardness tester
Applications:
This tester is a new type of product which is equipped with new features such as RS232 interface, high level LCD display etc. It is specially suited for measuring the Microhardness of thin, small metal test pieces and the brittle materials.
Feature:
1.Frictionless loading shaft, high precision testing force
2.Automatic testing process, no human operating error
3.Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
4.It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals.
5.It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications:
1. Hardness measuring range: 5-3000HV
2. Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
(10, 25, 50, 100, 200, 300, 500, 1000gf)
3. Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
4. Magnifications of the measuring system: 400X (measuring), 100X (observing)
5. Min. scale value of the optical micrometer: 0.025m
6. Measuring range: 200μm
7. Max. height of test piece: 75mm
8.Depth of throat: 110mm
9.Power supply: 220V AC or 110V AC, 50 or 60Hz
10.Dimensions: 470 x 320 x 500mm
11.Weight: approx. 40kg
Standard accessories:
Coordinate anvil: 1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm)
Thin shaft anvil (Φ0.3- Φ5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.

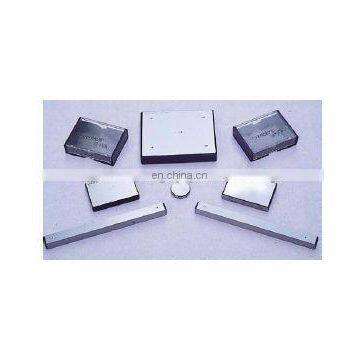

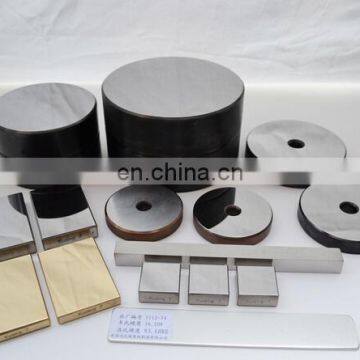

Micro-Vickers standardized block: 2 pcs.
Optional accessories:
Knoop penetrator
CCD camera and image processing system

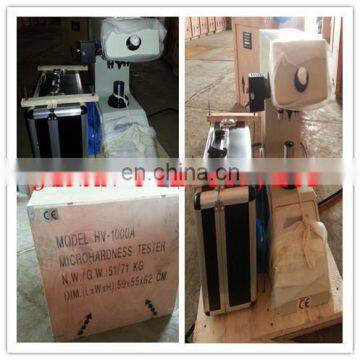

Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
PTE- A Material Testing Machine Manufacturer
About PTE
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
more products:
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min |
0-20/0.05 |
Max. tensile space |
560 |
Max. Compression space |
530 |
Max. Distance Between Two |
400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper |
320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Fiber strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston |
690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) |
0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns |
500 |
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
