TLS-S500 Digital Display Manual Spring Testing Machine

TLS-S500 Digital Display Manual Spring Testing Machine photo-1

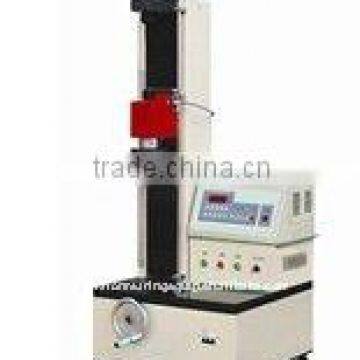

TLS-S500 Digital Display Manual Spring Testing Machine photo-2

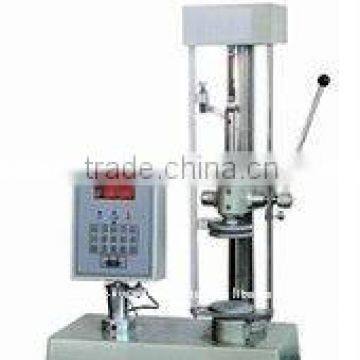

TLS-S500 Digital Display Manual Spring Testing Machine photo-3

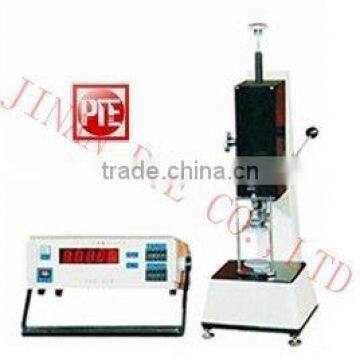

TLS-S500 Digital Display Manual Spring Testing Machine photo-4

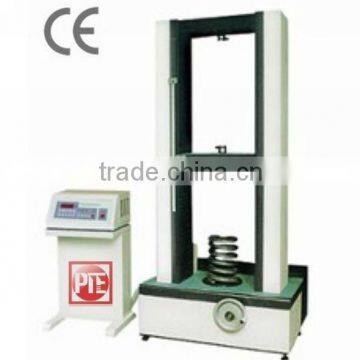

TLS-S500 Digital Display Manual Spring Testing Machine photo-5
TLS-S500 Digital Display Manual Spring Testing Machine photo-6
US$ 1,500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PTE
Place of Origin:
Shandong, China
Model Number:
TLS-S500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name PTE
Place of Origin Shandong, China
Model Number TLS-S500
Power Electronic
Usage Compression Testing Machine
Product Description

Product Characteristic:

TLS-S series of spring tension & compression testing machine adopts integrated circuit and micro-computer to test the 2 parameters of displacement and load and to digitally display their values, as well as printing out the testing results. Hand loaded, the machine can pre-set the upper & lower limit load of 4 test points and auto judge the qualification of the 4 test points. It can also automatically revise displacement of load cell. Generally, the machine has functions of peak value holding, overload protection, zero clearing at any test point, stiffness calculation, data retrieval,etc. It is suitable for testing of various precision extension and compression springs and intensity measuring of brittle materials.

Max test load(N)
500
Min. resolution of test load(N)
2
Load accuracy
±1%
Min. resolution of vernier (mm)
0.05
Max. distance between 2 tension hooks (mm)
270
Max. distance between compression plates (mm)
250
Diameter of platens(mm)
110
Manual feeding
manual
Detailed Images
Packing & Delivery

Packaging Detail:

1. Inner package: dust-proof plastic bag

2. Outer package: standard export wooden case with pallet

3. Special packages: according to buyer's requirements

4. The packages suitable for international transport by sea, by air or any other delivery methods

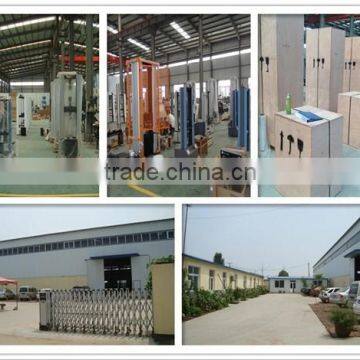

Our Company

OUR COMPANY-JINAN PRECISION TESTING EQUIPMENMT CO.,LTD (PTE)
PTE- A Material Testing Machine Manufacturer
About PTE


JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.

The main products from JINAN PRECISION TESTING EQUIPMENT include universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.

Welcome to enquiry and prompt reply will be done by our professional technical and sales person.

Our Service

1. Pre-service

--24 Hours online service for your consult.

--Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan
