GBS-60 Digital Display Erichsen Cupping Testing Machine
- 55 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
GBW-60 PC controlled Metal Erichsen Cupping Testing Machine
-
Computer Control Cupping Testing Machine/Erichsen Tester
-
QTW-20000 Micro-processor Controlled Gas Spring Test equipment
-
TPJ-10 Mechanical Coil Spring Fatigue Testing Machine
-
TLS-S100 Spring Tensile and Compression Testing Machine
-
TLS-100 Spring Tension Compression Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | GBS-60 | |||
| Usage | Deformation Testing Machine |
Product Description

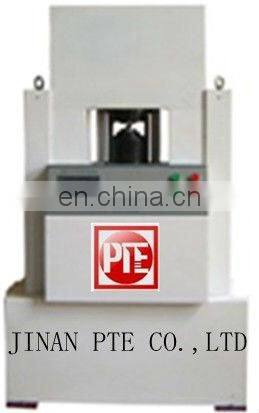

GBS-60 Digital Display Erichsen Cupping Testing Machine
Applications:
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal & strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .
Standards:
It conforms to ASTM E 643-78 & GB4156-84:Testing Machine for Metal Cupping test
Features:
- Pre-loading test force: 10-25kN, read & calibrate directly from meter.
- LCD display test load from 600N to 60kN in real time, the test accuracy is ±1% .
- Resolution of Load cell & signal is more than 1/100000, measuring displacement with encoder with resolution 0.001mm.
- Test speed from 2 mm/min to 100mm/min can be set freely, variable speed. Once test finish , then ready to be for next test automatically. Easy to be operated.
- It’ll display test load of cupping test & cupping value.
Specifications:
Thickness of sheet metal | 0.05-3mm (High precision load cell, it can complete extreme thin sheet metal ) |
Width of sheet metal | 90-100mm |
Stroke of punch | 40mm |
Cupping test load | 60kN( max.) |
Max. Clamping load | 25kN. |
Resolution of cupping value | 0.01mm |
Specifications of Standard Punch ball | Dia20±0.05mm |
Specifications of Standard Pattern Hole | Dia 33±0.1mm |
Specifications of Standard Fixed pattern hole | φ27±0.05mm |
Special accessories | can be special ordered. |
Hydraulic Oil | #N46 hydraulic Oil |
Dimension | 700 x 360 x 1700 mm |
Power | AC380V |
Weight | 500kg |
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
--------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper | 320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) | 0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns | 500 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
Our product range
1. Electromechanical Universal Testing Machine
2. Hydraulic universal testing machine
3. Spring testing machine
4. Fatigue testing machine
5. Creep and rupture testing machine
6. Horizontal tensile testing machine
7. Torsion testing machine
8. Cold bending testing machine
9. Cupping testing machine
10. Impact testing machine (Nist)
11. DWTT drop weight testing machine.
12. Compression testing machine
13. Friction and wear testing machine
