Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | NJS-30 | Power | Electronic |
Product Description

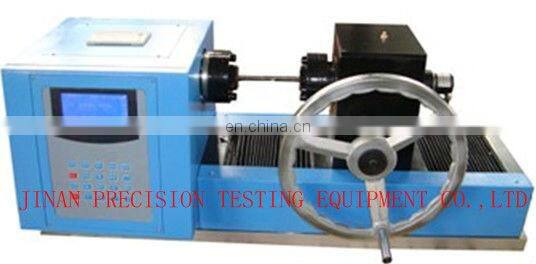

NJS-30 Digital Electronic Torsion Testing Machine
Applications:
This torsion tester is designed for torsion test to metal materials, non-metallic materials, composite materials and components as National and global standards "metal at room temperature torsion test method".
It is widely used in the field of quality control: metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; inspection arbitration, technical supervision departments; building materials ceramic; petrochemical industry; other industries Mechanics Laboratory.
Features:
This torsion tester by the manual loading, high-precision torque sensor detects torque, encoders measure the rotation angle, liquid crystal display test results.
The torsion tester has a simple structure, easy operation, low price and so on. Used to determine the material torque, maximum torque, angle and so the reverse indicator. Fine control of its powerful control, data processing capability, high reliability, the test machine using other processors can not match.
Main specifications
Item | NJS-30 | NJS-50 | NJS-100 | NJS-200 |
Max torque(Nm) | 30 | 50 | 100 | 200 |
Torque accuracy | ≤±1% | |||
Torque resolution (Nm) | 0.01 | 0.01 | 0.1 | 0.1 |
Accurate measuring range of torsion (Nm) | 0.6-30 | 1-50 | 2-100 | 4-200 |
Full-scale reading of torsion angle (º) | 9999.9 | |||
Torsion angle resolution (º) | 0.01 | |||
Relative error of torsion indication | ≤±1% | |||
Relative error of torsion indication repeatability | ≤±1% | |||
Sample diameter(mm) | ≤10 | |||
Max axial test space (mm) | 500 | |||
Operating voltage (V) | AC220V±10% | |||
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
Our product range:
1. Electromechanical Universal Testing Machine
2. Hydraulic universal testing machine
3. Spring testing machine
4. Fatigue testing machine
5. Creep and rupture testing machine
6. Horizontal tensile testing machine
7. Torsion testing machine
8. Cold bending testing machine
9. Cupping testing machine
10. Impact testing machine (Nist)
11. DWTT drop weight testing machine.
12. Compression testing machine
13. Friction and wear testing machine
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper | 320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) | 0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns | 500 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
