U V Charpy notch projector for metal impact specimen gap testing inspection
- 50 Set / Sets per Month
- Qing Dao
- T/T Credit Card
You May Like
-
Charpy pendulum impact tester for metal charpy V notch
-
ISO 148-1 Metallic Materials Charpy Pendulum Impact Testing Machine
-
Charpy Pendulum Impact Tester Price For Sale
-
QK-20 Notch Sample-making Machine For Impact Tester
-
XC Analog Plastic Impact Testing Machine
-
EHB-100A 100KN 0.3 Grade Compression Type Proving Ring
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | Charpy Impact Specimen U/V Gap Projector | Power | Electronic |
Product Description
U V Charpy notch projector for metal impact specimen gap testing inspection
Application:

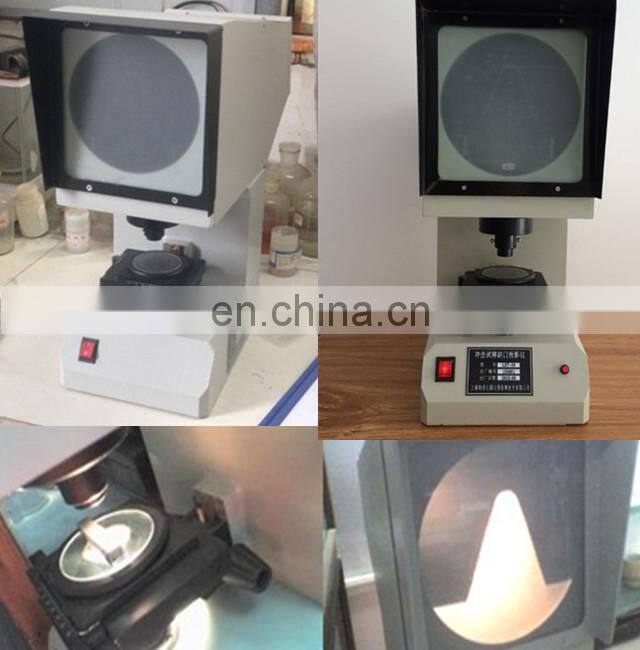

CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
Specifications:
1.Screen diameter: 180mm
2.Working table
Square shape: 110x125mm
Round shape 90mm
3.Glass diameter of working table: 70mm
4.Working table travel (Length x width x height): ±10 x ±10 x ±12mm
5.Rotating range of round working table: 0—360 degree
6.Magnifications: 50X
Objective magnification: 2.5X
Projection objective magnification: 2.5X
7.Eye-field diameter: 3.8mm
8.Working distance: 22.89mm
9.Light source: tungsten lamp 12V 100W
10.Dimensions: 515×224×603mm
11.Weight: Approx. 20kG
