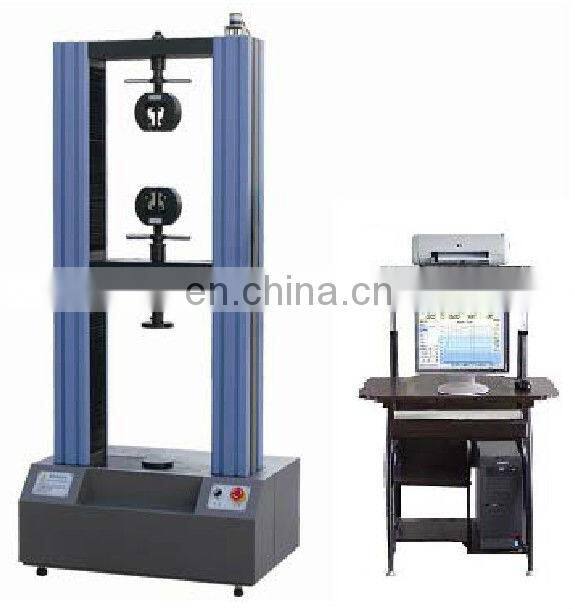

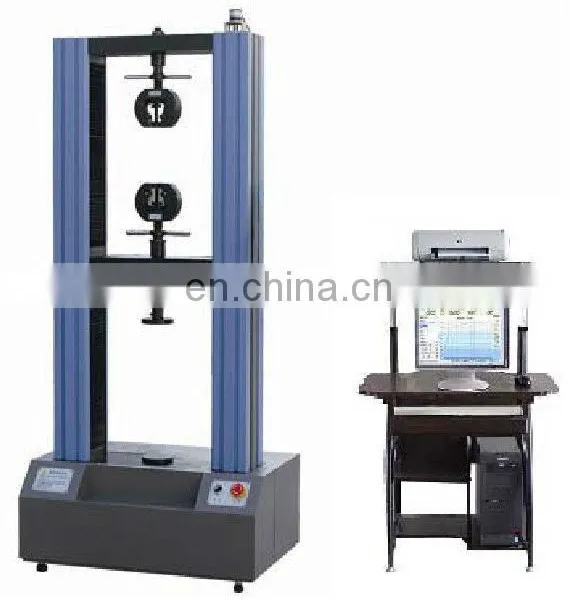

WDW-10 Electromechanical Computerized 10kn Compressive and Tensile Testing Machine for ROCKWOOL
- Qingdao
- T/T Credit Card
You May Like
-
High Quality Electronic Instron Tensile Testing Machine
-
WDW-200D 200KN Electronic Steel Ultimate Tensile Strength Testing Machine
-
Universal Force Tester,Material Force Testing Machine/Universal Force Measuring Equipment
-
Digital Table Top Model Lab Textile Testing Machine / Tensile Testing Machine for Textiles
-
10KN-300KN Computerized Universal Tensile Testing Machine
-
50KN Computer Control Electronic Universal Tensile Testing Machine Price
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | WDW-10 | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description
WDW-10 Electromechanical Computerized 10kn Compressive and Tensile Testing Machine for ROCKWOOL
Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
Model | WDW-300 | WDW-200 | WDW-100 | WDW-50 | WDW-20 | WDW-10 |
Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
Load accuracy | ≤±1% | |||||
Load range | 2%-100% of full scale | |||||
Test speed | 0.01-250mm/min | 0.01-500mm/min | 0.01-500mm/min | |||
Speed accuracy | ≤±1% | |||||
Displacement resolution | 0.01mm | |||||
Effective test width | 570mm | 400mm | 400mm | |||
Effective tensile space | 600mm | 600 | ||||
Effective compression space | 700mm | 700mm | ||||
Dimension | 1130×650×2650mm | 830×550×2000mm | 760×500×1750mm | |||
Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW | |||
Weight | 1800KG | 720KG | 460KG | |||
Grips | Wedge type, plate type and other grips as consumer’s demand | |||||
Load frame type | Table type | |||||

Feature:
1. Complete computer controlled: The whole measuring and controlling system adopts specific PC control card Used for testing machines, realizing the data zero and plus adjustment, which has very high reliability.
2. Supporting multi-transducers Realizing the database management of the test data which are stored according to the standard format; Facilitating other software to analyze and transfer.
3. Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.
4. Control software has the auto-adjusting function of test hardness, which assures that the system works with Every kind of specimen hardness.
5. Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and Print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several Kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer Interaction, which facilitates the check and contrast of the test result.
6. The user can self -define the output of the test report, which makes the report format have very high flexibility.
7. Modularization design facilitates the software upgrading, function spreading as well as the second development.
Quik detail
1. High Reliability,easy operate
2. Test system use high speed,low vibration motor drive unit .
3. Ball screw no backlash,low noise,high driving efficiency
4. High accuracy photoelectric encoder
5. Special testing machine software
6. Thousands of test fixture
7. High stiffness column
8. Limit switch to guarantee the safety
Accessories:
1.Can provide different accessories and do as customer's request for test fixtures & Grips.
2.Multi sensor supported.Many load cell and 4 extensometer can be define.
Software:
1. Multi languages supported,easy to control
2. Full digital display and computer control
3. Manual or Program control of test process
4. Multilevel Authorization Access
5. Perfection of diagramming functions
6. Test report creation as Excel, Word and Template
