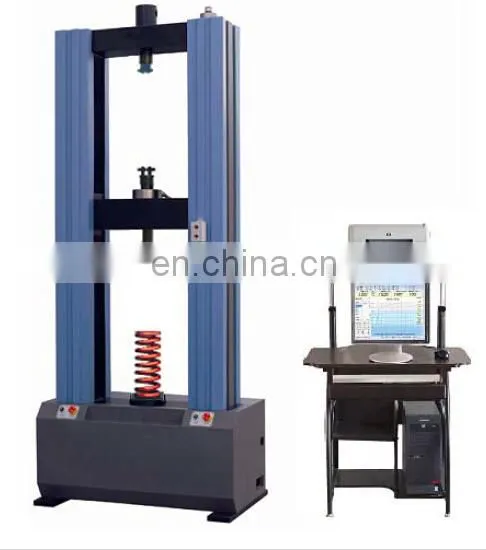

TDW-300 300KN computer control spring tensile and compression testing machine
TDW-300 Computer Control Spring Tensile and Compression Testing Machine is designed and manufactured according to ASTM, ISO, DIN etc standards. This kind of machine is mainly suitable for tensile and compression test & other properties of coil springs and leaf springs. It is widely used at railway industry, chemical industry, mineral enterprises and scientific research institutes, education and so on.
Features:
High accuracy servo motor to control test speed. Ball screw no backlash to guarantee the low noise and high driving efficiency High accuracy load cell to measure the test load High accuracy photoelectric encoder to measure the displacement Compact structure with easy operation Limit switch and setting in the software to guarantee the safety The software consists of function modules such as dynamic communication, speed control, parameter input, data processor, result observation, record retrieval, chart display and printing, and data storage. Various kinds of test methods: test of residual height and deformation of spring under pre-set test load; test of 9 test load under preset height or deformation of spring, etc. Multiple points data auto-collection: avoid the impact of spring stress on the testing data. Thus the total testing
Process is completely automatic. Overload protection and thus keep the load cell free of damage. Multiple databases, such as swing spring and shaft spring, etc., can be available for users when taking following tests. The tester has strong functions of data processing and mathematical statistics. It can draw the stiffness curve and calculate the segment stiffness, carry on data statistics, plot the normal distribution curve and calculate the index of process capacity
Specifications
Max. Test load: 300kN
Load accuracy: ±1%
Displacement resolution: 0.01mm
Loading speed: 0.01-250mm/min
Tensile testing space: 750mm
Compression testing space: 900mm
Compression plate diameter: 300mm
Voltage: 380V, 3ph, 50/60Hz
How to make a choice of Electromechanical Universal Testing Machine?
1.End user who do tensile, compression, bending and shearing test and other test
2.Materials tested are widely in material and non-metal.
3.When customer only needs load & speed, LCD type will be best choice. The operation is easy and simple.
4.When requiring load, speed(displacemnt),deformation(strain) control, servo control is a must.

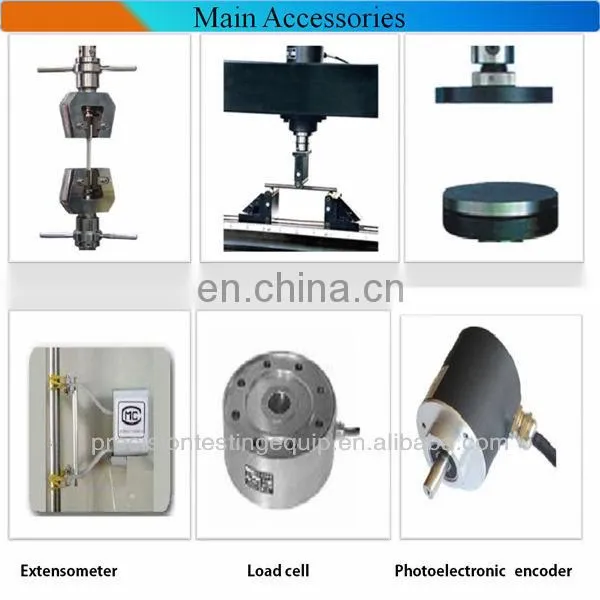

Accessories:
1.Can provide different accessories and do as customer's request for test fixtures & Grips.
2.Multi sensor supported.Many load cell and 4 extensometer can be define.

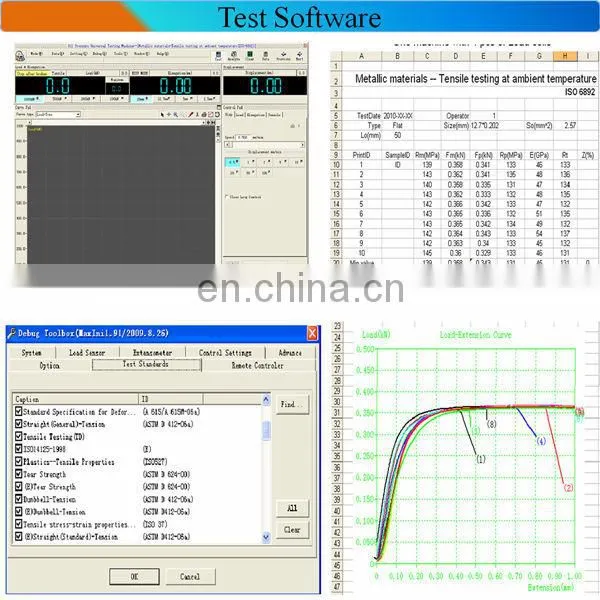

Software:
1. Multi languages supported,easy to control
2. Full digital display and computer control
3. Manual or Program control of test process
4. Multilevel Authorization Access
5. Perfection of diagramming functions
6. Test report creation as Excel, Word and Template

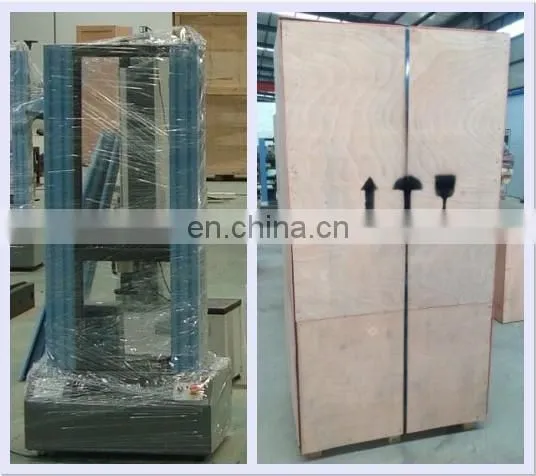

1.Packing with high quality standard to ensure safety when transportation.
2.Low delivery freight,because we are close to Qingdao Seaport.
3.Prompt shipment and keep you informed for delivery.
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide
1. How many years do your company in testing machine field?
More than 20 years.
2.Could you pls tell me the warranty?
1 year warranty time
3.What will you do if the machine cannot work during the warranty time?
Our egineer will be your place to fix it.
4.Do you have CE or any other certificate?
CE and ISO Certificate.
5.What is your payment way?
T/T or L/C ,as your like.
