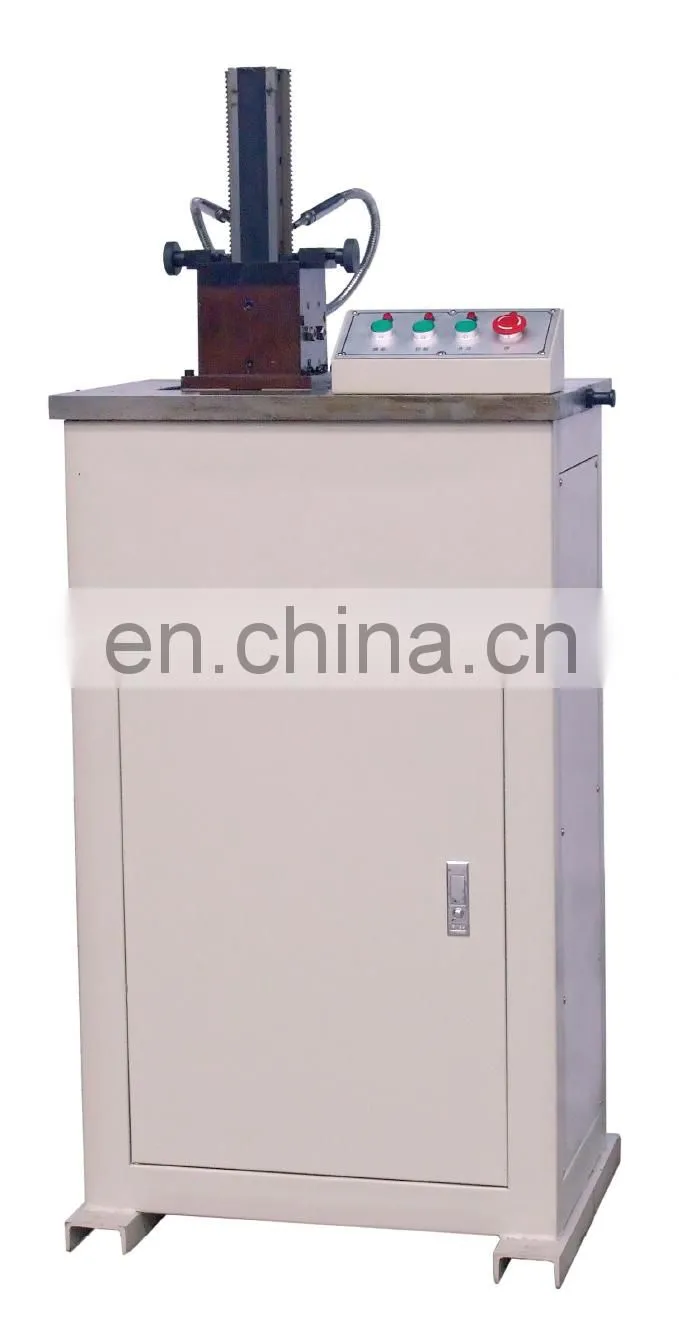

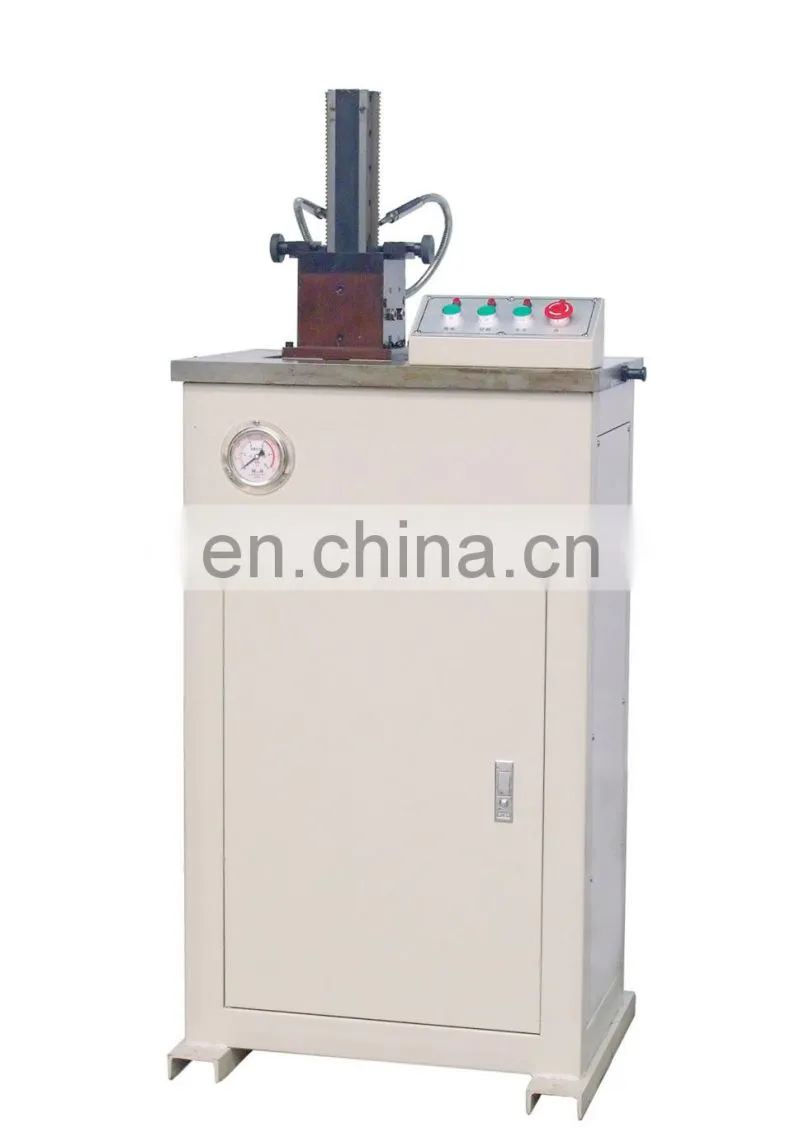

VU-2D/2Y Impact specimen notch broaching machine new product price
Appearance
Introduction
In the material notch impact test, its v-shaped notch (or u-shaped notch) processing is the key to the test can be carried out, the broaching machine for you to provide an ideal, can absolutely guarantee 100% processing qualified v-shaped (or 2mm u-shaped) notch special equipment. The broaching machine is based on the actual needs of domestic users, the collection of domestic and foreign experience in the field of development and development of a domestic leading level of the latest products.
VU - 2 d for motor drive screw way, VU - 2 y broaching machine for oil pump hydraulic cylinder drive way, according to user requirements and configuration of V type or U broach, sample gap forming in one time and one time could be successfully drawn two standard sample gap, broach the use of special materials, special process precision processing and manufacturing, high hardness, good wear resistance, long service life and processing the v-notch and u-shaped notch (2 mm) can meet related national standards GB/T229-2007, due to a broaching processing forming principle, the processing of identity is wonderful, can guarantee the sample processing by the gap one hundred percent qualified.
Parameters
| Brand | CB |
| Machining sample notch | V comply to GB229-2007,ISO148 |
| Machining specimen notch | U comply to 2mm,GB229-2007 |
| Processing sample size | 10*10* 55 mm |
| Broach trip | 340 mm |
| Broaching rate | 2.0mm/min |
| Dimensions | 350*350*700(mm) |
| Weight | 80Kg |
Host |
1 set |
Broach |
1 piece |
Broach material |
W18Cr4V |
1.Response within 24 hours for any problem.
2.12 Months warranty period, lifelong after sales service & maintenance(including machinery, clamps, hardware, software).
3.Our products are equipped with more than 100 different sample holders for users to choose, which can meet the testing requirements of more than 1000 kinds of materials.
4.Installation and training service is available.
5.According to different user materials, Chuanbai also provides customized services to meet different users' needs
Training:
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome to your coming and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to your company when necessary.
Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry.
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow.
