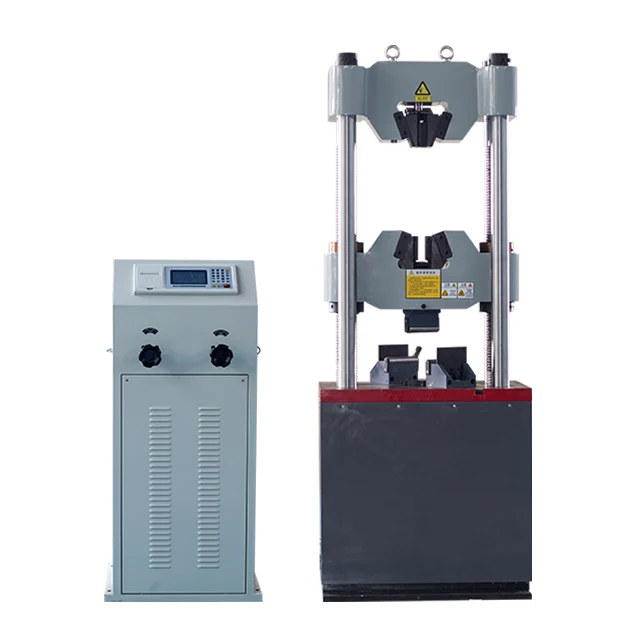

WAW-200 Ton Universal Tensile Testing Machine With Hydraulic Computer Controlled Price
US$ 10,000 - 12,100
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
200 Ton Tensile Testing Machine WAW Model With PC Fully Controlled Price in Peaking Season
-
Cast Iron Tensile Testing Machine/Steel and Rebar Strength Elongation Tester Supplier and Yearly Promotions
-
Computerised Universal Testing Machine 50KN Tensile/Bending/Compression/Peeling UTM Supplier
-
Dial Gauge Universal Testing Machine and Digital Display Tensile and Compression Tester Manufacture
-
Horizontal Universal Testing Machine With 500KN 1000KN Universal Tensile Tester With Horizontal Model
-
Tensile Strength Meter for 100 KN Elongation Test Equipment Manufacturer
Product Details
| Brand Name | Chuanbai | Place of Origin | Shandong, China | |
| Model Number | WAW-2000D |
Product Description
Product Overview
WAW-2000D microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine main machine adopts the structure of oil cylinder down type main machine, mainly used for the mechanical properties test of metal materials, non-metal materials, product parts, components, structural parts, standard parts and so on.
This series of testing machine can also do the material stretching, compression and bending test under the environment if it is equipped with environmental device.For example: high temperature tensile, low temperature tensile, compression and other tests.
Model | WAW-300D | WAW-600D | WAW-2000D | ||||||||
Max load (kN) | 300 | 600 | 2000 | ||||||||
Structure | 6 column | ||||||||||
Load accuracy | ≤±1% or ≤± 0.5% | ||||||||||
Load range | 2%-100%FS or 0.4%-100%FS | ||||||||||
Load resolution | 1/300000 | ||||||||||
Deformation Measurement Range | 2%~100%FS or 0.4%-100%FS | ||||||||||
Force reading | f, Ibf, N, KN, T etc | ||||||||||
Deformation accuracy | ≤±1%/± 0.5% | ||||||||||
Displacement resolution | 0.01mm | ||||||||||
Displacement error | ≤±0.5% | ||||||||||
Max.piston stroke | 250mm | ||||||||||
Max.Compression Test Space | 500mm | 500mm | 750mm | ||||||||
Piston Stroke | 150 | 150 | 200 | ||||||||
Crosshead moving speed | 200 | 150 | 120 | ||||||||
Effective space between columns | 550 | 600 | 800 | ||||||||
Round specimen clamping range | Φ4-Φ32mm | Φ6-Φ40mm | Φ13-Φ60mm | ||||||||
Flat specimen clamping range | 0-15mm | 0-30mm | 0-40mm | ||||||||

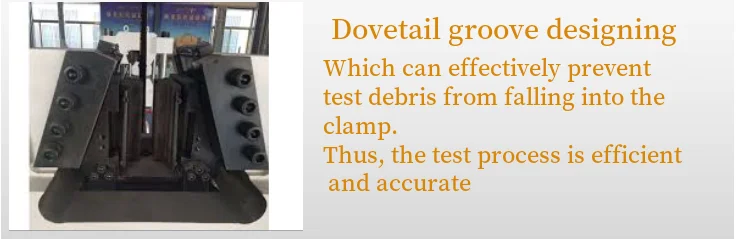

Clamping method | Hydraulic clamp | ||||||||||
Compression plate size | φ150mm | φ160mm | φ200mm | ||||||||
Power supply | As Customer Local | ||||||||||
Q: Does the product have CE and ISO certificates?
A: Our all products have passed CE and ISO certifications.
Q: What are the test forces of the hydraulic universal testing machine?
A: As long as the test force values of hydraulic universal testing machine are: 300 kn / 600 kn / 1000 kn / 2000 kn. Need to confirm the type and size of test products.
Q: Your company is a trading company or a factory?
A: Factory + trade (integration), 12 years of focus on the field of testing instruments.OEM is also acceptable for us.
Q: When will the order be delivered?
A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory.Please note that our production delivery time depends on the specific equipment and the quantities.
Q: What about the warranty?
A: 12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory.After the warranty, the professional after-sales service team will provide perfect technical support to help customers solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.
Q: How about the service and quality of the products?
A: Each equipment must be 100% inspected and tested during transportation and delivery.Product use training, we can send you the video for training to show you how to install and operate.We can arrange engineers to train the operation of the equipment
