Guangzhou competitive price science lab desk steel lab desk for laboratory desk

C-Frame Island Desk

C-Frame Wall Desk

(Apply to All steel and Wood-steel structure)

H-Frame Island Desk

(Apply to All steel structure)

H-Frame Wall Desk

(Apply to All steel structure)

C-Frame(Apply to All steel and Wood-steel structure)

C-Frame type structure is simple, flexible, can be freely combined. C-frame optional cabinet and cabinet-type structure, with the user's needs for a variety of combinations, easy to install and disassemble, is conducive to laboratory cleaning; load capacity of 250 kilograms

Remark:C-frame can apply to wood-steel and all steel structure, because the c-frame don't need to contact with the ground,so can use wood or steel material

H-Frame (Apply to All steel structure) steel structure

Dignified and generous, load-bearing performance, making the test bed load can reach 500KG above, to meet the requirements of large-scale precision instruments.(H-Frame is is made up of cabinets and has no steel frame.)

Remark:H-frame only apply to All steel structure, because the H-frame (floor model) need to Contact with the ground,so must use steel material, if use the wood material will be affected with damp

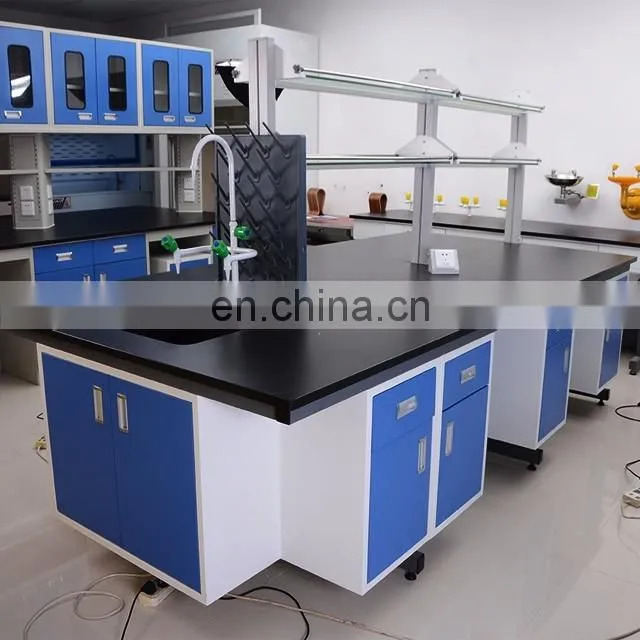

All Steel Island/Wall Desk

Wood-Steel Island/Wall Desk

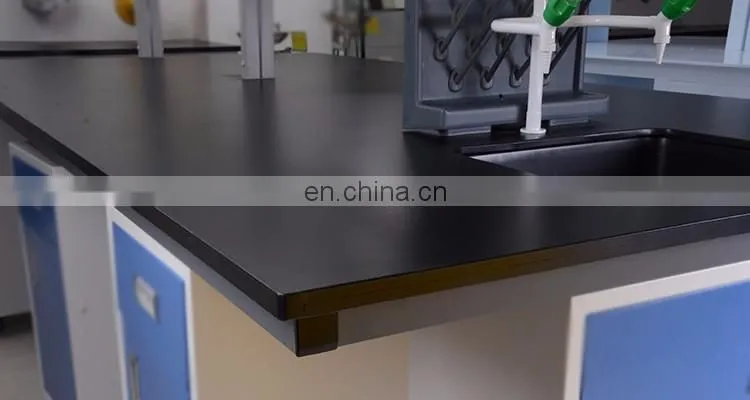

Table top
(1) epoxy resin:16/19/20/25mm thickness Epoxy resin
(2) ceramic table tops(optional):20mm thickness of Laboratory Ceramics,Black Color
(3) solid physiochemical board: Use 12.7 mm thickness solid physiochemical board.

Framework
(1) Cabinet frame: 60 x 40 x 1.5mm thickness rectangular electrolytic steel square tube,support column is the same specification steel tube, double sides welding cold rolled steel,surface is with zinc plating coloring `and electrostatic powder spraying epoxy resin treatment as protective layer for acid and alkali corrosion resistance.its protective layer adhesive force is tested and qualified by falling objects impact,Static bearing > 250 kg, support column can hang on cabinets directly, no need to destroy wall body.
(2) Cabinet frame: imported 16 mm thickness double-sided pressure-viscosity melamine MDF, all round cross-section with PVC waterproof sealing treatment,waterproof, anti corrosion, moth-proofing, etc.
(3)Door plank, drawer panel: imported 18mm thickness double-sided pressure-viscosity melamine MDF, all round cross-section with PVC waterproof sealing treatment,waterproof, anti corrosion, moth-proofing, etc.
(4)Handle: use PVC in-line style handle.
(5)Hinge: use DTC 175 degree hinge.
(6)Footing: adopt special laboratory stainless steel adjustable footing, adjusting range ≥ 35 mm, for ground easy cleaning.
(7)Guide rail: use DCT trinodal steel ball slide rail.
(8)Reagent rack: use aluminum alloy column, epoxy resin coating tray, 12 mm thickness toughened glass laminate, stainless steel guardrail.
(9)Lank-off panel:12 mm thickness melamine board.Removable design,convenient for hydro-electric power system installation and maintenance.

Name: Worktop board

Various color of lab bench cabinet and top for selcet. As for the top material,epoxy resin board,solid physiochemical board,ceramic board, Formica Chemtop are all available

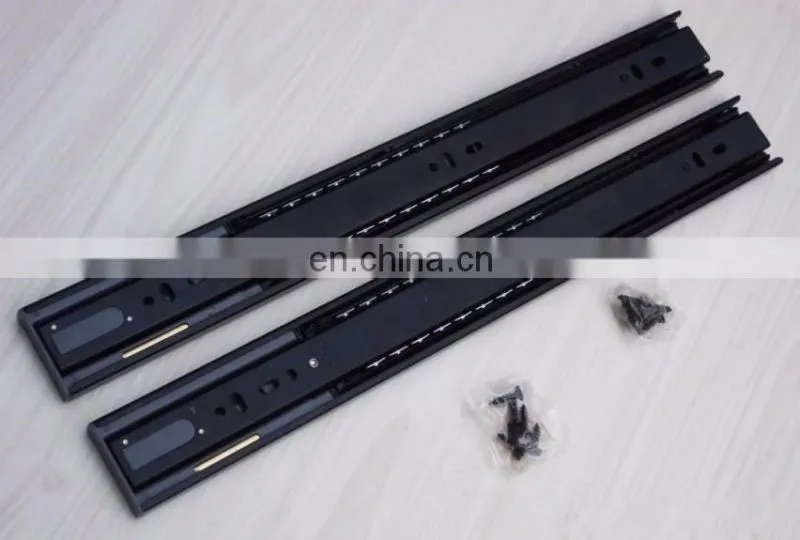

Name: Slides

Three heavy duty ball silde rails with stronge bearing force and good sliding performance without noise.

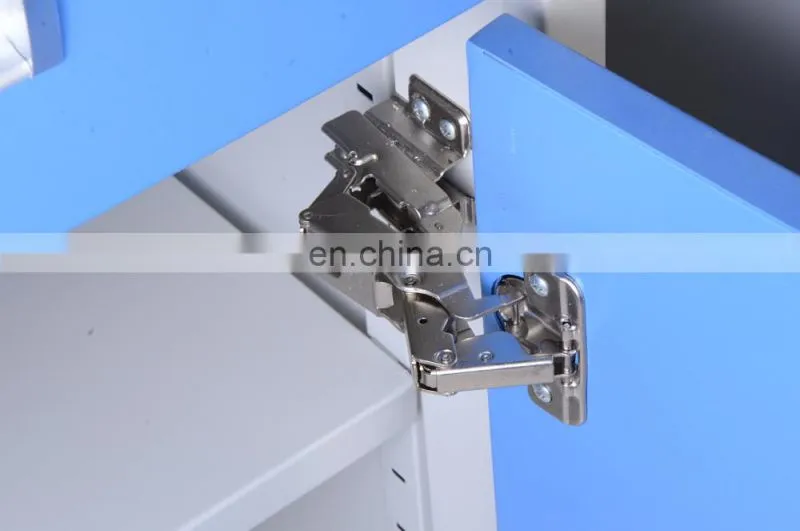

Name: Hinge
175 degree high quality chrome plated stee hinges of lab bench

FAQ

Q: Are you a factory or trade company?
A: Direct factory. We also have our sales and design team to offer better service to our valued customers.

Q: Is available to buy your original design?
A: Yes, all the products are designed professionally by our designers. Please feel free to inform us which item you are interested in.

Q: What is the lead time?
A: We usually will start to work after receiving 50% deposit, and as for the exact lead time, it depends on quantity and detailed requirement. We can promise it will be shipped on time as we negotiated.

Q: Do you have certifications for your products?
A: Yes, We have CE CERTIFICATIONS, Quality Management Systems Certificate ISO9001:2008 and Environmental Management Systems Certificate ISO14000:2004 etc
