Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union

Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union thumbnail-1
Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union thumbnail-2
Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union thumbnail-3
Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union photo-1

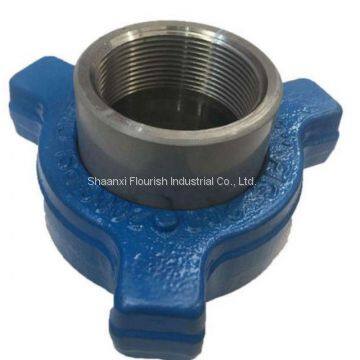

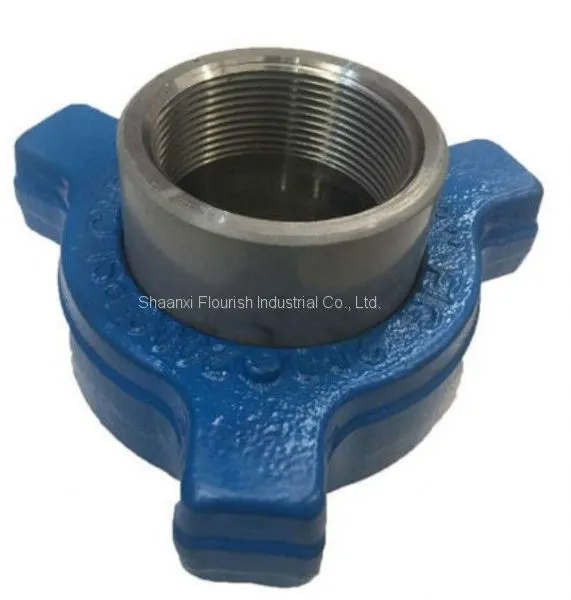

Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union photo-2

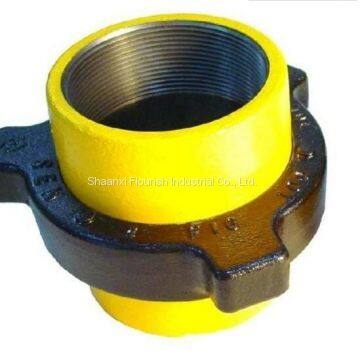

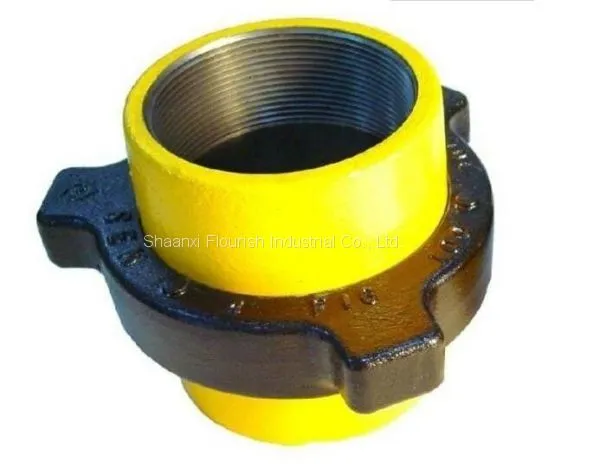

Oilfield Fig100 Fig200 Fig602 Fig1502 Fig1003 API Threaded Butt Welded Hammer Union photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Material:
Carbon Steel
Type:
Union
Contact Supplier Request Quote Chat Now
Shaanxi Flourish Industrial Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Material Carbon Steel
Type Union
Shape Equal
Technics Forged

Oilfield  fig100 fig200 fig602 fig1502 fig1003 API Threaded Butt Welded Hammer Union

High-pressure pipe connection (union) for the cement truck, fracturing trucks, all kinds of manifolds, pipelines and other high voltage equipment, accessories, transport is an important oil, water, fracturing fluid and mixed fluid. This product is made of high quality forged steel and finished steel with good mechanical properties, sealing performance and different pressure levels, it is the ideal accessory oil drilling operations. Pressure levels have 7MPa ~ 105MPa series, specification models FIG100, FIG200, FIG206, FIG400, FIG602, FIG1002, , FIG1502,series, in the form of a threaded connection, welded, three types of anti-hydrogen sulfide4gas. For easier identification, different pressure levels of union has a different color, and a clear specification of connection and pressure rating marked on the wing nut.
FIG NO.SIZE
1002", 3", 4", 6", 8"
200, 2061", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8"
2072", 3", 4", 5", 6", 8", 10"
4002", 3", 4"
6021", 2", 3", 4"
10021", 1-1/2", 2", 2-1/2", 3", 4", 5"
10032", 3", 4", 5", 6"
10045", 6"
15022", 3"


Fig100:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.FIG100 1000PSI NSCWP, test pressure 1500PSI black nut, yellow parts
Fig200, 206:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.200 206PSI NSCWP, test pressure 3000PSI blue nut, gray parts


Fig207:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.207 type 2000PSI NSCWP, test pressure 3000PSI blue cap, gray parts.


Fig400:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.400 4000PSI NSCWP, test pressure 6000PSI black nut, red parts,With sealing ring
3.Can also be customized according to customer needs


Fig602:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.602 6000PSI NSCWP, test pressure 9000PSI black nut, red parts,With sealing ring.
3.Can also be customized according to customer needs


Fig607:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.607 6000PSI NSCWP, test pressure 9000PSI sky-blue nut, black parts,Equipped with resilient nitrile rubber sealing ring
3.Can also be customized according to customer needs


Fig1002:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.1002 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring
3.Can also be customized according to customer needs.


Fig1502:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.1502 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring
3.Can also be customized according to customer needs.


Product Tags: Hammer Union , Butt Welded Hammer Union , API Hammer Union , Threaded Hammer Union , fig1502 fig1003 Hammer Union , Oilfield Hammer Union
