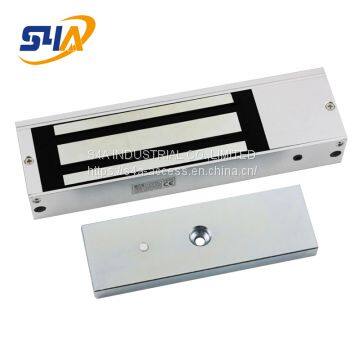

500KG Single Door Electric Lock with Built-in LED and door sensor
Model No.: EL-1200SD
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-1200 |
Without indicator lights |
EL-1200S |
With LED (Red only) |
EL-1200SD |
Built-in LED and door sensor |
EL-1200ST |
Built-in LED, door sensor, and time delay |
EL-1200SZ |
LED, door sensor, and Buzzer |
Lock size |
265Lx72Wx40H(mm) |
Plate |
185Lx60Wx13H(mm) |
Holding Force |
500kg(1200Lbs) |
Voltage |
DC12V or DC24V (adjustable) |
Current Draw |
12V/420mA 24V/210mA |
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
Surface Temp |
≤20°C |
Operating Temp |
-10°C ~ 55°C (14°F~131°F) |
Suitable Humidity |
0~90%(non-condensing) |
Finishes for Shell |
Anodized aluminum surface texture processing |
Finishes for Magnetic |
Zinc |
Finishes for Armature |
Zinc |
Weight |
4.5kg |
Standard Packing |
6pcs |
