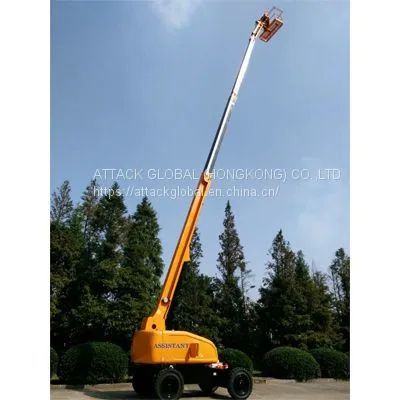

We are professional Self propelled Platform 30-32M supplier and factory in China.We can produce the product according to your requirements.
Self propelled Platform 30-32M Measurements And Specifications
MODEL |
GTBZ30 |
GTBZ32Z |
|||
MEASUREMENTS |
Metric |
US |
Metric |
US |
|
Working height maximum * |
32.2m |
105ft |
33.7m |
111ft |
|
Platform height maximum |
30.4m |
100ft |
32m |
105ft |
|
Horizontal reach maximum ** |
22.9m |
75ft |
24.4m |
80ft |
|
Below ground reach |
3.34m |
11ft |
4.51m |
15ft |
|
A |
Platform length-8ftmodel |
0.91m |
3ft |
0.91m |
3ft |
Platform length-6ftmodel |
0.76m |
2ft6in |
0.76m |
2ft6in |
|
B |
Platform width-8ftmodel |
2.44m |
8ft |
2.44m |
8ft |
Platform width-6ftmodel |
1.83m |
6ft |
1.83m |
6ft |
|
C |
Height-stowed |
3.08m |
10ft |
3.08m |
10ft |
D |
Length-stowed |
13m |
43ft |
14.02m |
46ft |
E |
Width –axle retracted |
2.49m |
8ft |
2.49m |
8ft |
Width –axle extended |
3.35m |
11ft |
3.35m |
11ft |
|
F |
Wheelbase |
3.66m |
12ft |
3.66m |
12ft |
G |
Ground clearance-center |
0.43m |
1ft5in |
0.43m |
1ft5in |
PRODUCTIVITY | |||||
Lift capacity (restricted) |
480kg |
1056lbs |
480kg |
1056lbs |
|
Lift capacity (non-restricted) |
340kg |
748lbs |
340kg |
748lbs |
|
Platform rotation |
160° |
160° |
|||
Jib rotation |
— |
135° |
|||
Turntable Swing |
360°continuous |
360°continuous |
|||
Turntable tail swing -axle retracted |
1.82m |
6ft |
1.82m |
6ft |
|
Turntable tail swing -axle extended |
1.38m |
5ft |
1.38m |
5ft |
|
Travel speed -stowed |
4.4km/h |
2.73mph |
4.4km/h |
2.73mph |
|
Travel speed -raised or extended |
1.1km/h |
0.68mph |
1.1km/h |
0.68mph |
|
Gradeability -stowed (4WD/2WD) |
42%/30% |
42%/30% |
|||
Turning radius - axle retracted inside |
4.14m |
13ft7in |
4.14m |
13ft7in |
|
Turning radius - axle retracted outside |
6.56m |
22ft |
6.56m |
22ft |
|
Turning radius - axle extended inside |
2.74m |
9ft |
2.74m |
9ft |
|
Turning radius - axle extended outside |
5.85m |
19ft |
5.85m |
19ft |
|
Controls |
24V DC Proportional |
24V DC Proportional |
|||
Solid tires |
12.00-20/8.5 |
12.00-20/8.5 |
|||
POWER | |||||
Power source |
Commins B3.3 75 HP (56kw) |
||||
Auxiliary power unit |
24V DC |
24V DC |
|||
Hydraulic tank capacity |
265L |
265L |
|||
Fuel tank capacity |
150L |
150L |
|||
WEIGHT | |||||
2WD |
18520kg |
40830lbs |
18660kg |
41140lbs |
|
4WD |
18600kg |
41000lbs |
18740kg |
41310lbs |
|
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008 | |||||
ATTACK GLOBAL mainly produces and supplies self loading forklift, electric warehouse trucks, aerial work platforms, etc., planning to help customers meet their specific needs.
