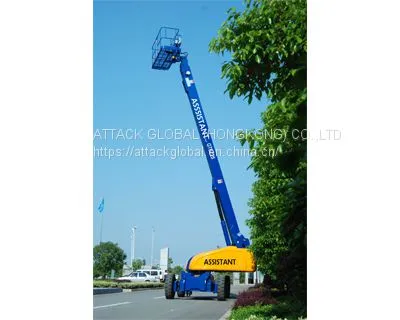

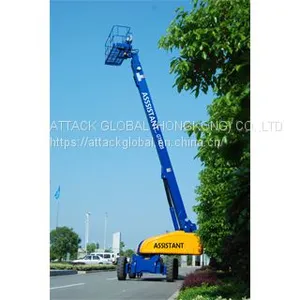

Self Propelled Platform 30-32M
You May Like
Product Description
We are professional Self propelled Platform 30-32M supplier and factory in China.We can produce the product according to your requirements.
Self propelled Platform 30-32M Measurements And Specifications
MODEL | GTBZ30 | GTBZ32Z | |||
MEASUREMENTS | Metric | US | Metric | US | |
Working height maximum * | 32.2m | 105ft | 33.7m | 111ft | |
Platform height maximum | 30.4m | 100ft | 32m | 105ft | |
Horizontal reach maximum ** | 22.9m | 75ft | 24.4m | 80ft | |
Below ground reach | 3.34m | 11ft | 4.51m | 15ft | |
A | Platform length-8ftmodel | 0.91m | 3ft | 0.91m | 3ft |
Platform length-6ftmodel | 0.76m | 2ft6in | 0.76m | 2ft6in | |
B | Platform width-8ftmodel | 2.44m | 8ft | 2.44m | 8ft |
Platform width-6ftmodel | 1.83m | 6ft | 1.83m | 6ft | |
C | Height-stowed | 3.08m | 10ft | 3.08m | 10ft |
D | Length-stowed | 13m | 43ft | 14.02m | 46ft |
E | Width –axle retracted | 2.49m | 8ft | 2.49m | 8ft |
Width –axle extended | 3.35m | 11ft | 3.35m | 11ft | |
F | Wheelbase | 3.66m | 12ft | 3.66m | 12ft |
G | Ground clearance-center | 0.43m | 1ft5in | 0.43m | 1ft5in |
PRODUCTIVITY | |||||
Lift capacity (restricted) | 480kg | 1056lbs | 480kg | 1056lbs | |
Lift capacity (non-restricted) | 340kg | 748lbs | 340kg | 748lbs | |
Platform rotation | 160° | 160° | |||
Jib rotation | — | 135° | |||
Turntable Swing | 360°continuous | 360°continuous | |||
Turntable tail swing -axle retracted | 1.82m | 6ft | 1.82m | 6ft | |
Turntable tail swing -axle extended | 1.38m | 5ft | 1.38m | 5ft | |
Travel speed -stowed | 4.4km/h | 2.73mph | 4.4km/h | 2.73mph | |
Travel speed -raised or extended | 1.1km/h | 0.68mph | 1.1km/h | 0.68mph | |
Gradeability -stowed (4WD/2WD) | 42%/30% | 42%/30% | |||
Turning radius - axle retracted inside | 4.14m | 13ft7in | 4.14m | 13ft7in | |
Turning radius - axle retracted outside | 6.56m | 22ft | 6.56m | 22ft | |
Turning radius - axle extended inside | 2.74m | 9ft | 2.74m | 9ft | |
Turning radius - axle extended outside | 5.85m | 19ft | 5.85m | 19ft | |
Controls | 24V DC Proportional | 24V DC Proportional | |||
Solid tires | 12.00-20/8.5 | 12.00-20/8.5 | |||
POWER | |||||
Power source | Commins B3.3 75 HP (56kw) | ||||
Auxiliary power unit | 24V DC | 24V DC | |||
Hydraulic tank capacity | 265L | 265L | |||
Fuel tank capacity | 150L | 150L | |||
WEIGHT | |||||
2WD | 18520kg | 40830lbs | 18660kg | 41140lbs | |
4WD | 18600kg | 41000lbs | 18740kg | 41310lbs | |
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008 | |||||
ATTACK GLOBAL (HK) Co.,Ltd. is a professional manufacturer specializing in material handling machinery for more than 10 years. We provide ARTICULATED FORKLIFT, GASOLINE FORKLIFT, multi lift fork trucks and so on. Want to know more? Please contact us.
