We are professional telescopic manlift 20-22M supplier and factory in China. We can produce the product according to your requirements.

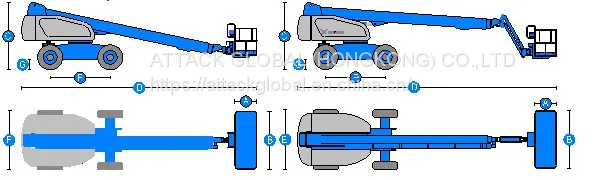

Telescopic platform lift 20-22M Measurements & Specifications
MODEL |
GTBZ20 |
GTBZ22 |
|||
MEASUREMENTS |
Metric |
US |
Metric |
US |
|
Working height maximum * |
22.4m |
73ft |
23.9m |
78ft |
|
Platform height maximum |
20.7m |
68ft |
22.2m |
73ft |
|
Horizontal reach maximum ** |
19.1m |
63ft |
20.2m |
66ft |
|
Below ground reach |
1.76m |
5ft9in |
2.93m |
9ft7in |
|
A |
Platform length-8ft model |
0.91m |
3ft |
0.91m |
3ft |
Platform length-6ft model |
0.76m |
2ft |
0.76m |
2ft |
|
B |
Platform width-8ft model |
2.44m |
8ft |
2.44m |
8ft |
Platform width -6ft model |
1.83m |
6ft |
1.83m |
6ft |
|
C |
Height-stowed |
2.7m |
9ft |
2.7m |
9ft |
D |
Length-stowed |
9.59m |
31ft |
10.69m |
35ft |
E |
Width |
2.49m |
8ft |
2.49m |
8ft |
F |
Wheelbase |
2.5m |
8ft |
2.5m |
8ft |
G |
Ground clearance-center |
0.43m |
1ft5in |
0.43m |
1ft5in |
PRODUCTIVITY | |||||
Lift capacity (restricted) |
480kg |
1056lbs |
480kg |
1056lbs |
|
Lift capacity (non-restricted) |
340kg |
748lbs |
250kg |
551lbs |
|
Platform rotation |
160° |
160° |
|||
Jib rotation |
-- |
135° |
|||
Turntable Swing |
360°continuous |
360°continuous |
|||
Turntable tail swing |
1.19m |
4ft |
1.19m |
4ft |
|
Travel speed -stowed |
6.3km/h |
3.9mph |
6.3km/h |
3.9mph |
|
Travel speed -raised or extended |
1.3km/h |
0.8mph |
1.3km/h |
0.8mph |
|
Gradeability -stowed (2WD) |
30% |
30% |
|||
Gradeability -stowed (4WD) |
45% |
45% |
|||
Turning radius - inside |
3.0m |
9ft7in |
3.0m |
9ft7in |
|
Turning radius –outside Turning radius - axle extended outside |
5.2m |
16ft8in |
5.2m |
16ft8in |
|
Controls |
24V DC Proportional |
24V DC Proportional |
|||
Solid tires |
9.00-20 |
9.00-20 |
|||
POWER | |||||
Power source |
Lovol 1004-4 78 hp (58kw) Perkins 400 61hp (45.5kw) Cummins B3.3NA-C60 4 60HP (45kw) |
||||
Auxiliary power unit |
24V DC |
24V DC |
|||
Hydraulic tank capacity |
190L |
190L |
|||
Fuel tank capacity |
150L |
150L |
|||
WEIGHT | |||||
2WD |
13000kg |
28660lbs |
13140kg |
28968lbs |
|
4WD |
13080kg |
28836lbs |
13220kg |
29145lbs |
|
STANDARDS COMPLIANCE EN280, JG/T5101, Q/ADZV001-2008 | |||||
